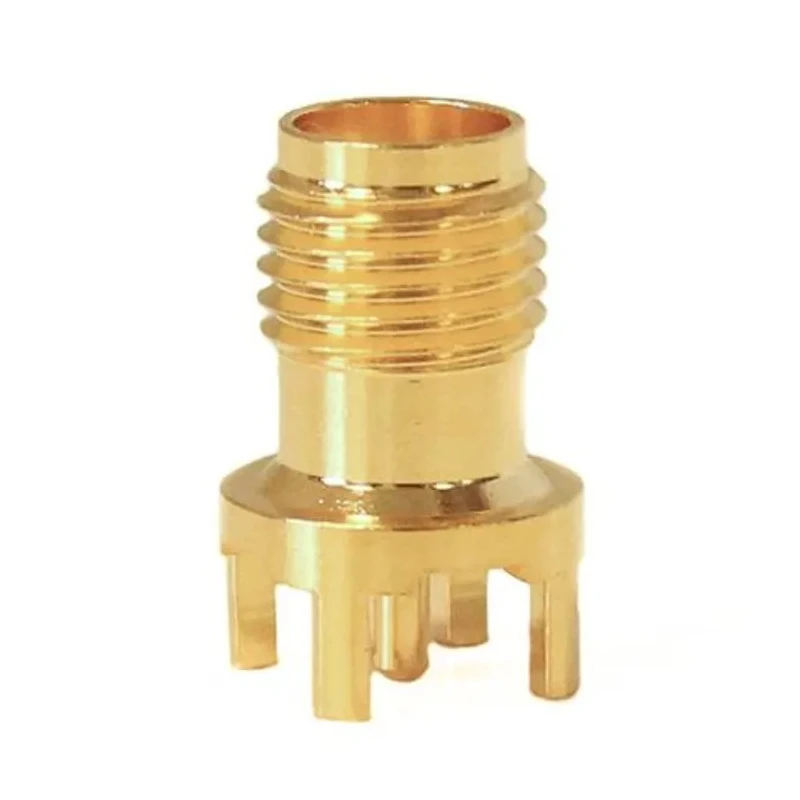

Mueller Electric SMA Series Coaxial Connector PCB Female SMA, 50 Ω, Straight Body Solder BU-1420701231

Mueller Electric BU-1420701231 SMA Series Coaxial Connector is a PCB-mounted female connector designed with precision for high-frequency RF applications requiring 50 Ω impedance.

The connector features a brass body with gold plating that provides excellent corrosion resistance and mechanical strength. It has a solder termination type, allowing secure attachment to printed circuit boards. The contact is made from beryllium copper alloy with gold plating to ensure low resistance and reliable signal transmission.

Operating reliably over a temperature range from -65°C up to 150°C, it is suited for demanding industrial and electronic environments. With a frequency range capability of up to 18 GHz, it supports high-speed data transmissions and communication systems.

This product is RoHS compliant, ensuring environmentally friendly manufacturing standards. The straight body orientation and female SMA gender facilitate easy connections in coaxial cable assemblies.

Typical applications include telecommunications, test and measurement instruments, aerospace, military, and high-frequency electronics assemblies requiring reliable RF connectivity.

The connector features a solder termination for durable PCB mounting. High operating frequency up to 18 GHz guarantees signal integrity. Gold-plated brass body and contacts ensure durability and conductivity. Wide temperature range (-65°C to 150°C) suits harsh environments.

RoHS compliant construction meets environmental regulations. Designed for 50 Ω impedance applications for RF signal consistency. Straight body orientation supports practical cabling layouts. Female SMA connector gender for standard coaxial interfacing.

Contact material is beryllium copper alloy with gold plating for superior electrical performance. Explore the full range of Coaxial Connectors at EnvMart to find compatible components for your electronic and industrial needs.
