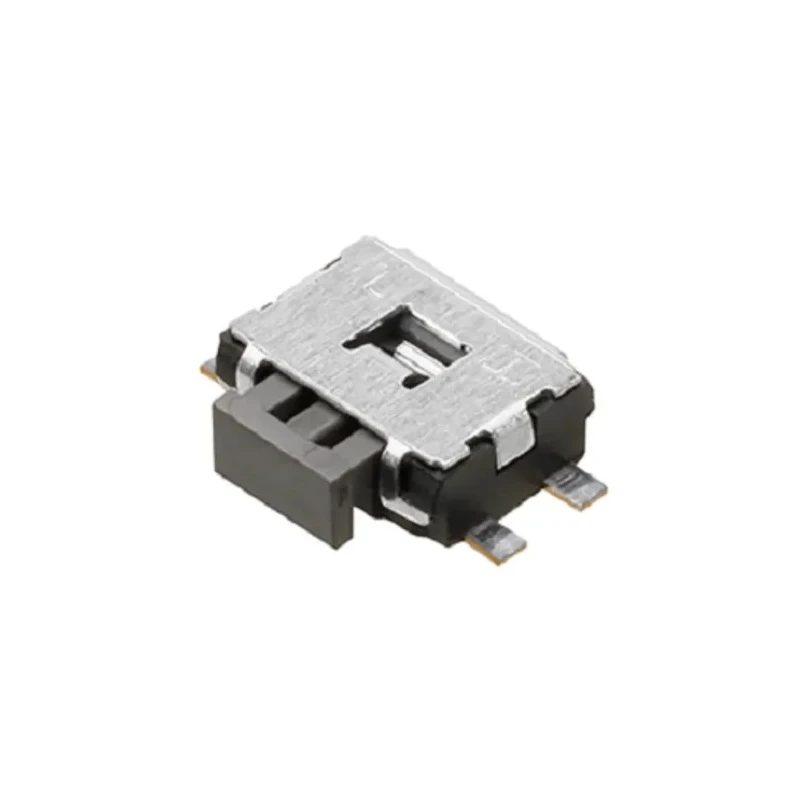

Panasonic Black Tactile Switch Push Plate 2.6 mm SPST 50mA 12 V dc Surface EVQPUC02K

Panasonic EVQPUC02K Black Tactile Switch Push Plate 2.6 mm is a high-quality surface-mount tactile switch designed for precise switching applications in electronic devices. Featuring a black push plate actuator of 2.6 mm length, this switch enables reliable momentary contact with snap-action SPST operation rated at 50mA current and 12 V dc voltage. It is suitable for keyboard, keypad, and other low-current switching applications requiring durability and compact size.

The switch body measures approximately 4.7 mm by 3.5 mm with a low profile height of 1.66 mm. It incorporates straight terminal pins for ease of PCB mounting. Designed to operate within a temperature range up to 70°C, it is well-suited for industrial, commercial, and consumer electronics.

The electrical rating covers a wide range from low current 10 μA at 2 Vdc for delicate circuits up to 50 mA at 12 V dc for more demanding loads, all with resistive load characteristics. Its minimum endurance cycle rating of 100,000 ensures long-lasting performance and reliability in frequent usage conditions.

This tactile switch is part of Panasonic's EVQP series and is manufactured in China under stringent quality standards. Its black actuator and compact surface mount design make it ideal for various automation, electrical, and electronics applications including control panels, machinery interfaces, and instrumentation.

The tactile switch has a black push plate actuator with a length of 2.6 mm. It is designed for surface mounting with straight terminals for easy PCB integration. The switch operates by push-on action with snap action contact.

It supports a maximum operating temperature of 70°C ensuring reliability in various environments. The switch features a compact external dimension of approximately 4.7 mm x 3.5 mm with a height of 1.66 mm. Electrical ratings include 10 μA at 2 Vdc up to 50 mA at 12 Vdc resistive load.

Endurance rating ensures a minimum of 100,000 operating cycles for long-term durability. Manufactured in China according to Panasonic’s EVQP series.

This product is suitable for use in industrial automation, electrical control systems, consumer electronics, and laboratory instrumentation. Panasonic tactile switches provide precise tactile feedback and reliable switching solutions to enhance device functionality and operator experience.
