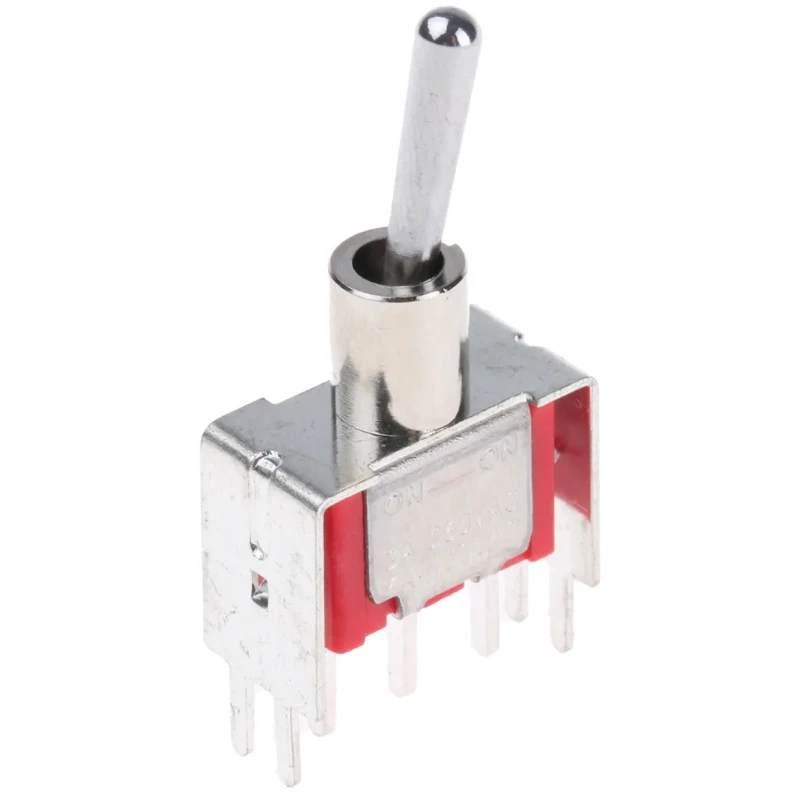

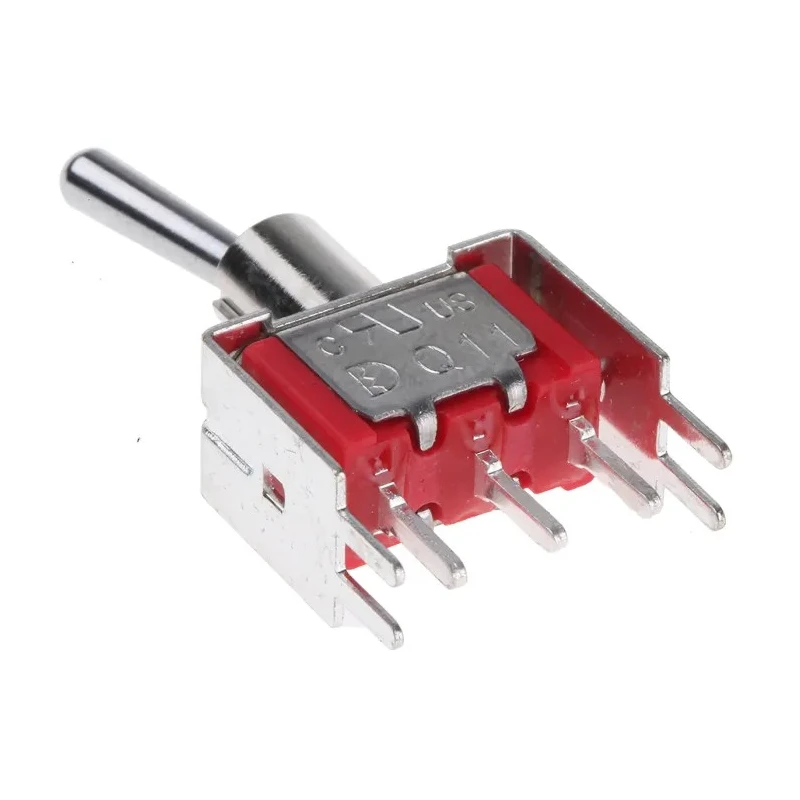

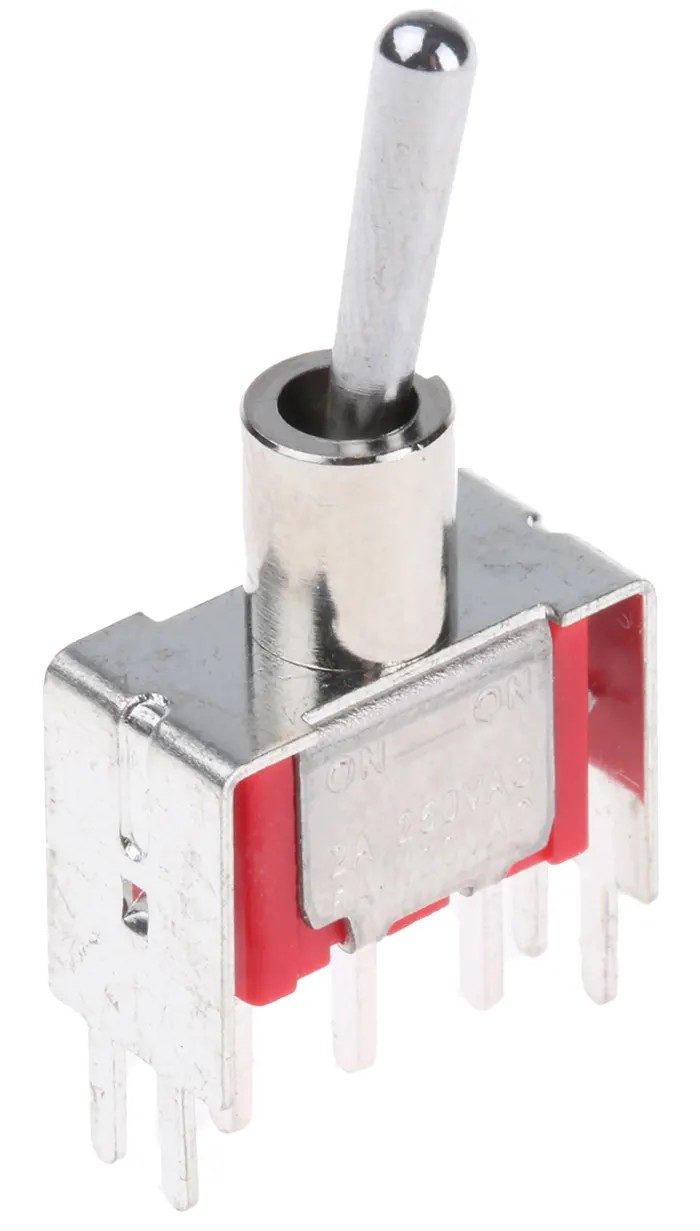

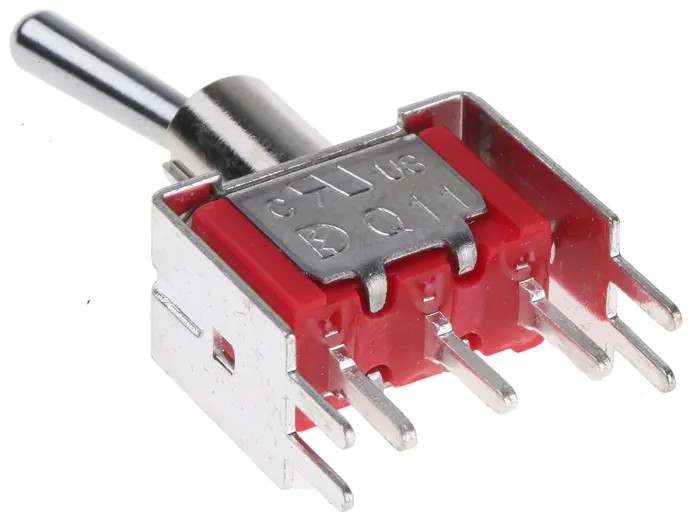

RS PRO Toggle Switch PCB Mount On-On SPDT Through Hole Terminal 26 V dc 112 V ac 7347084P

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Toggle Switch PCB Mount On-On SPDT Through Hole Terminal 26 V dc 112 V ac 7347084P

Name: RS PRO Toggle Switch PCB Mount On-On SPDT Through Hole Terminal 26 V dc 112 V ac 7347084P
Brand: RS PRO
SKU: 128962
Price: 457.07 INR
Availability: InStock



Category Toggle Switch Brand RS PRO Condition New

Specifications

Country of Origin	India
Brand	RS PRO
Model	7347084P
Mount Type	PCB
Maximum Operating Temperature	85°C
Contact Configuration	SPDT
Switch Configuration	On-(On)
Minimum Operating Temperature	-30°C
Panel Cutout Size	6.35 mm
Terminal type	Through Hole
Standards/Approvals	RoHS & Lead Free
Switch Operation	On-On
Actuator Length	10.41mm
Contact DC Voltage	26V dc
Switch Contact Current	5A
Mechanical Life	40000Cycles
Contact AC Voltage	112V ac
Actuator Material	Chrome Plated Brass

Key Features

Designed for single pole double throw (SPDT) switch configuration.
Operates with On-On switch action for dual position control.
PCB mount type with through-hole terminals for secure installation.
Supports a maximum contact current of 5 A for effective circuit handling.
Actuator made of chrome plated brass ensuring durability.
Panel cutout size is 6.35 mm for precise fitting.
Operating temperature range from -30°C to 85°C for versatile environments.
Mechanical life rated for 40000 switching cycles for long term usage.

Product Description

RS PRO 7347084P Toggle Switch is a high-quality PCB mount miniature toggle switch engineered for precise electrical control applications, rated at 26 V dc and 112 V ac. It features a single pole double throw (SPDT) contact configuration with an On-On switch operation, enabling reliable dual position control in industrial and electronic devices.

This toggle switch supports a 5 A contact current, making it suitable for low to moderate current switching in automation, instrumentation, and control circuits. Its through-hole terminal type and a panel cutout size of 6.35 mm allow for secure and straightforward PCB integration.

The actuator is crafted from chrome plated brass providing mechanical strength and corrosion resistance. Compact with a length of 10.41 mm, this switch is suitable for devices where space optimization is critical.

Designed to withstand harsh environments, it operates reliably between temperatures of -30°C up to 85°C. With a mechanical life expectancy of 40,000 cycles, it guarantees durability and longevity for demanding industrial, laboratory, and manufacturing applications.

The RS PRO 7347084P toggle switch complies with RoHS and Lead Free standards, supporting eco-friendly product development requirements. Single pole double throw (SPDT) contact configuration for versatile switching. On-On operation delivering definitive on/off performance.

PCB mount through-hole terminals for robust electrical connections. Chrome plated brass actuator ensures durability. 5 A maximum switching current for diverse electrical circuits. Compact size with 6.35 mm panel cutout and 10.41 mm actuator length.

Wide operating temperature range from -30°C to 85°C. Rated mechanical life of 40,000 cycles for extensive use. RoHS and Lead Free compliant for regulatory standards.

This Toggle Switch is ideal for use in electrical automation, industrial control systems, instrumentation panels, laboratory equipment, and other electronics requiring robust, reliable switch operations. Ensure quality and compliance by integrating RS PRO components.
