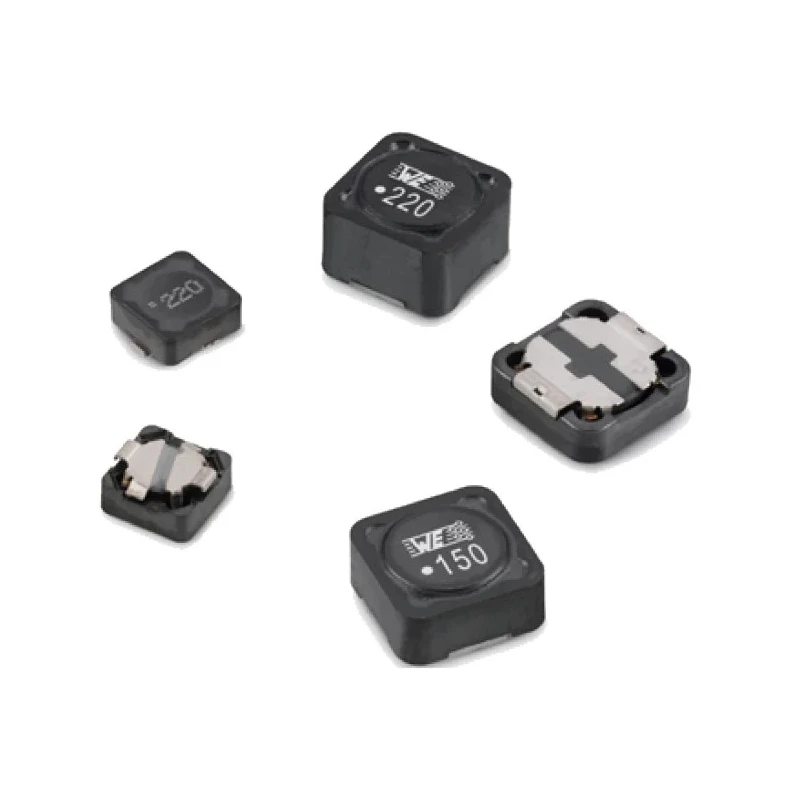

Wurth Elektronik WE-PD SMT Shielded Wirewound Surface Mount Inductor 220μH 20% Tolerance 1.25A IDC 7447706221
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 8mm |
| Brand | Wurth Elektronik |
| Height | 6mm |
| Length | 12mm |
| Depth | 12mm |
| Packaging | Tape & Reel |
| Series | WE-PD SMT |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Manganese Zinc |
| Inductance | 220μH |
| Standards/Approvals | JEDEC JS709B, REACH, RoHS |
| Maximum DC Current | 1.25A |
| Maximum DC Resistance | 310mΩ |
| Inductance Tolerance | 20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 3.3MHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- The inductor features a manganese zinc core with wirewound construction.
- Designed for surface mount applications with a compact size of 12mm length, 8mm diameter, and 6mm height.
- Supports automotive standard AEC-Q200 and complies with JEDEC JS709B, REACH, and RoHS standards.
- Offers ultra-low DC resistance of 310mΩ and shielding for reduced interference.
- Operates reliably between -40°C and 150°C with a maximum self-resonant frequency of 3.3MHz.
- Suitable for use in switch mode power supplies, integrated DC/DC converters, and high-frequency circuits up to 10MHz.
- Packaged in tape and reel format for automated manufacturing processes.
- Manufactured in China ensuring consistent quality and reliability.
Product Description
The Wurth Elektronik 7447706221 WE-PD SMT Shielded Wirewound Surface Mount Inductor is engineered for high-performance passive component applications in electronics. Featuring a manganese zinc core and wirewound construction, this inductor provides 220μH inductance with a 20% tolerance, making it ideal for precise power regulation needs.
With a maximum DC current of 1.25A and an ultra-low DC resistance of 310mΩ, this part ensures energy efficiency and minimal power loss. Its compact dimensions of 12mm length, 8mm diameter, and 6mm height make it suitable for space-sensitive surface mount technology (SMT) circuits.
Compliant with automotive standard AEC-Q200 and certified under JEDEC JS709B, REACH, and RoHS, this inductor meets stringent quality and environmental requirements. Its shielding reduces electromagnetic interference, enhancing circuit reliability in industrial, automotive, and telecommunications applications.
The device operates over a wide temperature range from -40°C to 150°C and supports frequencies up to 10 MHz, making it well-suited for switch mode power supplies and integrated DC/DC converters with power ratings from 0.1 W to 300 W.
Tape and reel packaging ensures compatibility with automated assembly lines, facilitating efficient mass production. The Wurth Elektronik 7447706221 inductor is manufactured in China under strict quality controls to guarantee performance and durability.
The inductor features a manganese zinc core with wirewound construction. Designed for surface mount applications with a compact size of 12mm length, 8mm diameter, and 6mm height. Supports automotive standard AEC-Q200 and complies with JEDEC JS709B, REACH, and RoHS standards.
Offers ultra-low DC resistance of 310mΩ and shielding for reduced interference. Operates reliably between -40°C and 150°C with a maximum self-resonant frequency of 3.3MHz. Suitable for use in switch mode power supplies, integrated DC/DC converters, and high-frequency circuits up to 10MHz.
Packaged in tape and reel format for automated manufacturing processes. Manufactured in China ensuring consistent quality and reliability. Explore the full range of Wurth Elektronik components at EnvMart for reliable performance in electronic designs.
