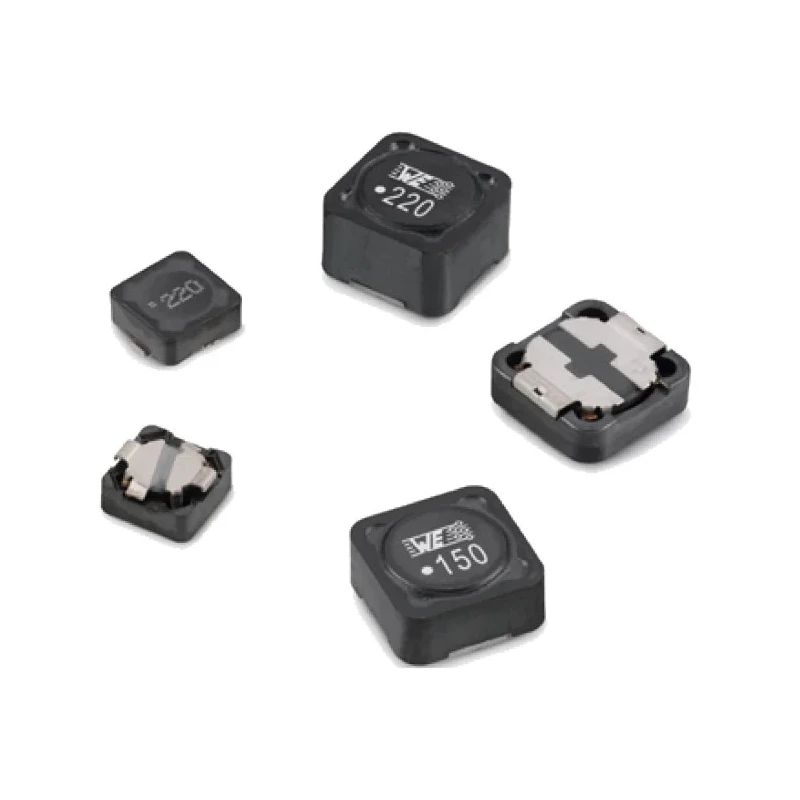

Wurth Elektronik WE-PD SMT Shielded Wirewound Surface Mount Inductor 150μH 20% Tolerance 1.55A IDC 7447706151

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik WE-PD SMT Shielded Wirewound Surface Mount Inductor 150μH 20% Tolerance 1.55A IDC 7447706151

Name: Wurth Elektronik WE-PD SMT Shielded Wirewound Surface Mount Inductor 150μH 20% Tolerance 1.55A IDC 7447706151
Brand: Wurth Elektronik
SKU: 403424
Price: 1.76 USD
Availability: InStock



Category Surface Mount Inductor Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Diameter	8mm
Brand	Wurth Elektronik
Height	6mm
Length	12mm
Depth	12mm
Packaging	Tape & Reel
Series	WE-PD SMT
Maximum Operating Temperature	150°C
Minimum Operating Temperature	-40°C
Core Material	Manganese Zinc
Inductance	150μH
Standards/Approvals	JEDEC JS709B, REACH, RoHS
Maximum DC Current	1.55A
Maximum DC Resistance	200mΩ
Inductance Tolerance	20 %
Termination Style	Surface Mount
Maximum Self Resonant Frequency	4.2MHz
Inductor Construction	Wirewound
Automotive Standard	AEC-Q200

Key Features

The inductor features a manganese zinc core for excellent magnetic properties.
It is designed with shielded wirewound construction for reduced electromagnetic interference.
Has a maximum DC resistance of 200mΩ ensuring low power loss.
Supports operating temperatures from -40°C to 150°C suitable for harsh environments.
Meets AEC-Q200 automotive standards and JEDEC JS709B, REACH, and RoHS compliances.
Packaged in tape and reel format for surface mount assembly.
Suitable for switching frequencies up to 10 MHz and maximum self-resonant frequency of 4.2 MHz.

Product Description

Wurth Elektronik 7447706151 WE-PD SMT Shielded Wirewound Surface Mount Inductor delivers an inductance value of 150μH with a tolerance of 20%, designed for use in switching mode power supplies and integrated DC/DC converters ranging from 0.1 W to 300 W.

Manufactured with a manganese zinc core, this wirewound inductor incorporates shielding to minimize electromagnetic interference, enhancing performance in sensitive electronic circuits.

Its robust operating temperature range from -40°C to 150°C and compliance with AEC-Q200 automotive standards ensure reliability in automotive and industrial applications. The device features a maximum DC current rating of 1.55A and a maximum DC resistance of 200mΩ, enabling ultra-low resistance to optimize efficiency and reduce heat generation.

Compact dimensions (12mm length, 8mm diameter, 6mm height, 12mm depth) and surface mount termination style facilitate easy integration into modern PCB layouts. Certified to JEDEC JS709B, REACH, and RoHS standards, it supports switching frequencies up to 10 MHz with a maximum self-resonant frequency of 4.2 MHz.

The inductor features a manganese zinc core for excellent magnetic properties. It is designed with shielded wirewound construction for reduced electromagnetic interference. Has a maximum DC resistance of 200mΩ ensuring low power loss.

Supports operating temperatures from -40°C to 150°C suitable for harsh environments. Meets AEC-Q200 automotive standards and JEDEC JS709B, REACH, and RoHS compliances. Packaged in tape and reel format for surface mount assembly.

Compact dimensions facilitate PCB integration. Ideal for industrial, automotive, HVAC, and power electronics applications. This Wurth Elektronik inductors category includes various high-quality surface mount inductors optimized for reliability and performance in demanding electronic environments.
