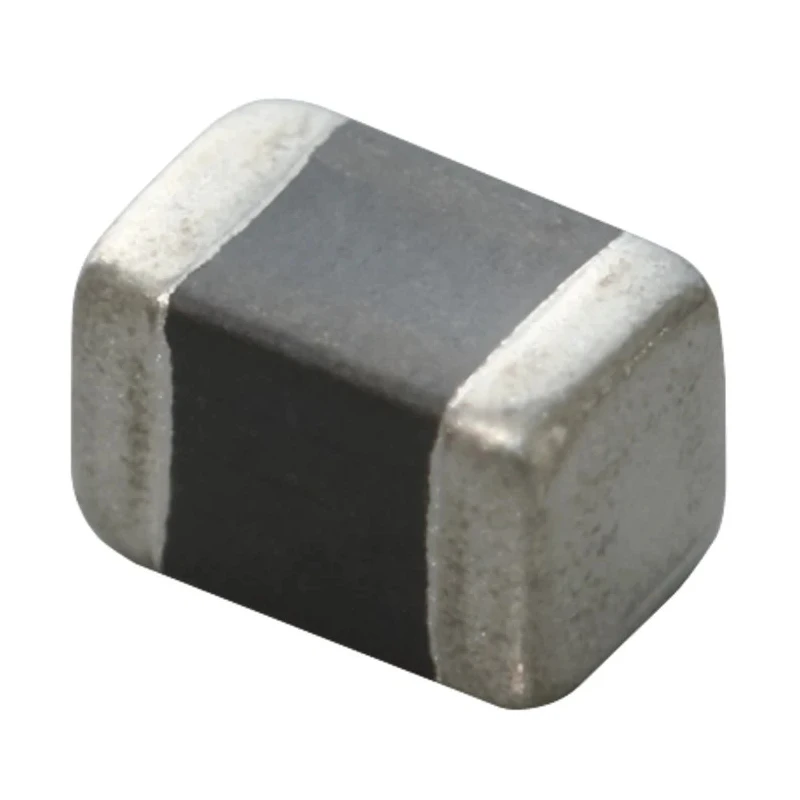

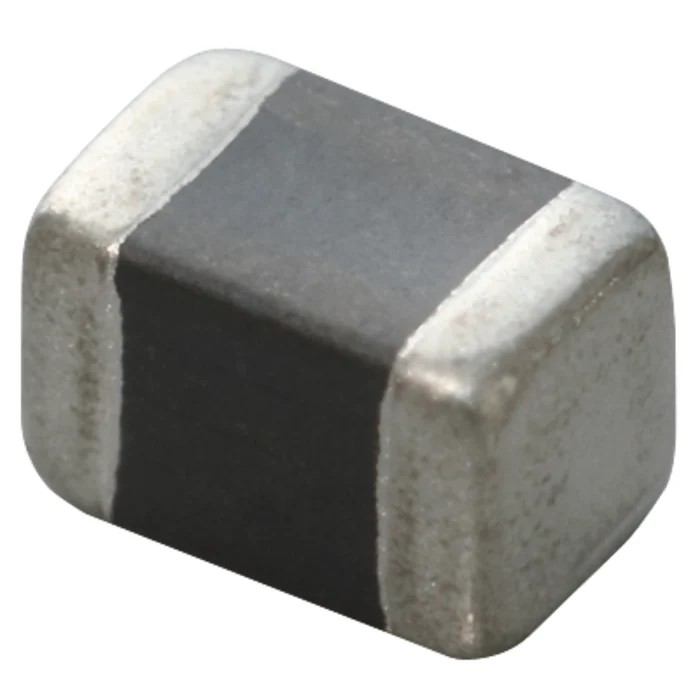

Murata 0603 Shielded Multilayer Surface Mount Inductor with Ferrite Core 6.8 μH ±20% 120 mA LQM18DZ6R8M70L

Murata LQM18DZ6R8M70L is a 0603 size shielded multilayer surface mount inductor featuring a ferrite core with an inductance of 6.8 μH and a tolerance of ±20%. This inductor supports a maximum DC current of 120 mA and is designed for use in power line applications where stable inductance and minimal electromagnetic interference are critical.

Its compact 1.6 mm length, 0.8 mm height, and depth dimensions facilitate its integration into high-density printed circuit boards, making it ideal for automotive, industrial, and consumer electronics.

Constructed with a ferrite core and a molded body, the LQM18DZ6R8M70L enhances reliability and durability while operating within a broad temperature range from -55°C to 125°C. It conforms to the automotive AEC-Q200 standard, underscoring its suitability for demanding environments.

The shielded multilayer design substantially reduces electromagnetic interference, improving circuit performance in sensitive devices. The maximum DC resistance of 0.96 Ω ensures efficient current handling. Terminations are surface mount style to support automated assembly processes.

Compact 0603 package for space-saving PCB designs. Ferrite core provides stable inductance and noise suppression. ±20% inductance tolerance for flexible applications. Wide operating temperature range from -55°C to 125°C.

Shielded to minimize electromagnetic interference. 0.96 Ω maximum DC resistance for efficient current flow. Automotive standard AEC-Q200 certified for quality and reliability. Surface mount termination supports automated manufacturing.

This Murata multilayer surface mount inductor is an excellent choice for industrial, automotive, and consumer electronics applications requiring reliable power line filtering and inductance control options.
