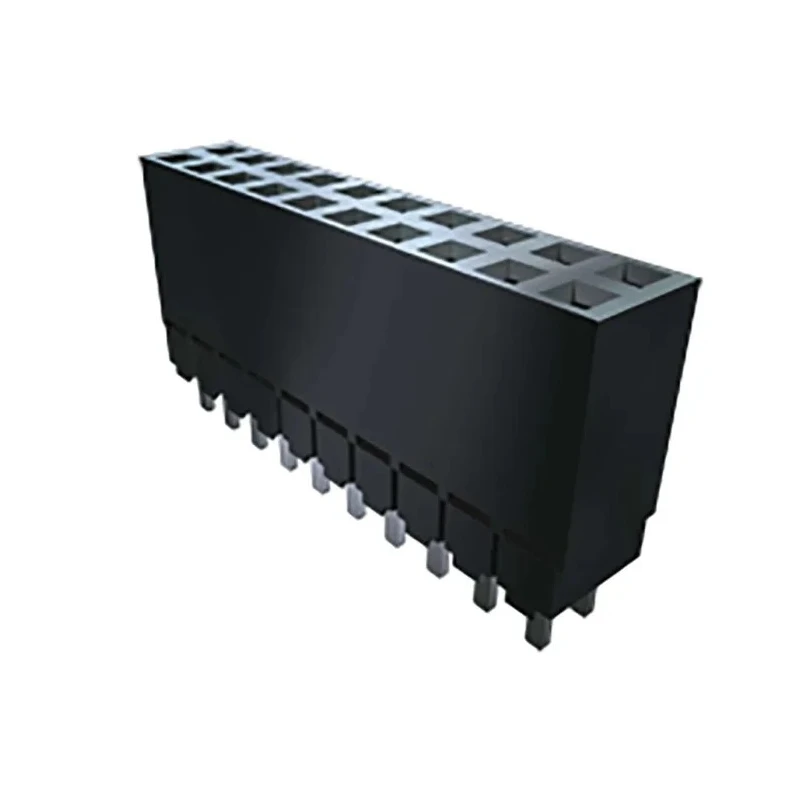

Samtec ESW Series Straight Through Hole PCB Socket 50-Contact 2 Row 2.54 mm Pitch Solder ESW-125-12-G-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 515V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 5.2A |
| Model | ESW-125-12-G-D |
| Mount Type | Through Hole |
| Housing Material | Black Glass Filled Polyester |
| Contact Material | Phosphor Bronze |
| Series | ESW |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 50 |
| Connector System | Board-to-Board |
Key Features
- Constructed with black glass filled polyester housing for durability.
- Contact material is phosphor bronze with gold plating for reliability.
- Designed for board-to-board connection with through-hole mount type.
- Rated for current of 5.2 A per pin and voltage up to 515 V.
- Operates in temperature range from -55°C to 125°C.
- Standard insertion force contacts with standard solder tails ensure stable connections.
- Orientation is straight for easy alignment on PCB assemblies.
- Connector system supports elevated socket application in PCB designs.
Product Description
Samtec ESW-125-12-G-D is a high-quality straight through hole PCB socket from the ESW series designed for demanding electronic applications. Manufactured with a black glass filled polyester insulator housing, it ensures excellent mechanical strength and resistance to wear in industrial environments.
This PCB socket contains 50 phosphor bronze contacts plated with gold to provide superior conductivity and corrosion resistance. The contacts feature standard and low insertion force designs with standard solder tails for reliable through-hole mounting on printed circuit boards.
Designed for board-to-board connector systems, it accommodates 2 rows of contacts with a 2.54 mm pitch, suitable for precise and compact PCB configurations. The socket is rated for 5.2 amperes per pin current carrying capacity and supports operating voltages up to 515 volts, making it ideal for power and signal transmission in electronic devices.
It performs reliably across a wide operating temperature range from -55°C to 125°C, supporting various industrial, laboratory, manufacturing, and electronic assembly applications. The straight orientation of the contacts facilitates easy and accurate insertion during manufacturing and maintenance.
Durable black glass filled polyester housing for robust PCB mounting. Phosphor bronze contact material with gold plating for high electrical performance. Designed for board-to-board elevated socket applications. Solder termination with through-hole mount type for secure connections.
Supports 5.2 A current per pin and 515 V voltage rating. Wide temperature operating range from -55°C to 125°C. Straight orientation ensuring precise PCB alignment.
This PCB socket is ideal for electronic assembly, power connectors, and industrial applications requiring reliable, high-performance PCB interfaces. Explore more similar connectors and accessories in EnvMart’s Electronics Components category to optimize your designs with trusted Samtec products.
Explore more products in our PCB Sockets category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 5.2 A per pin.
It supports voltages up to 515 V.
The contacts are arranged with a pitch of 2.54 mm.
It features a black glass filled polyester housing and phosphor bronze contacts with gold plating.
It operates within a temperature range from -55°C to 125°C.
This model contains 50 contacts.
It uses solder termination for secure connections.
The contacts are oriented straight for easy alignment on PCB assemblies.
It is designed for through-hole mounting on printed circuit boards.
It is suitable for board-to-board connector systems and various industrial, laboratory, and electronic assembly applications.
Yes, it is designed to support elevated socket applications in PCB designs.
The country of origin for this model is India.
