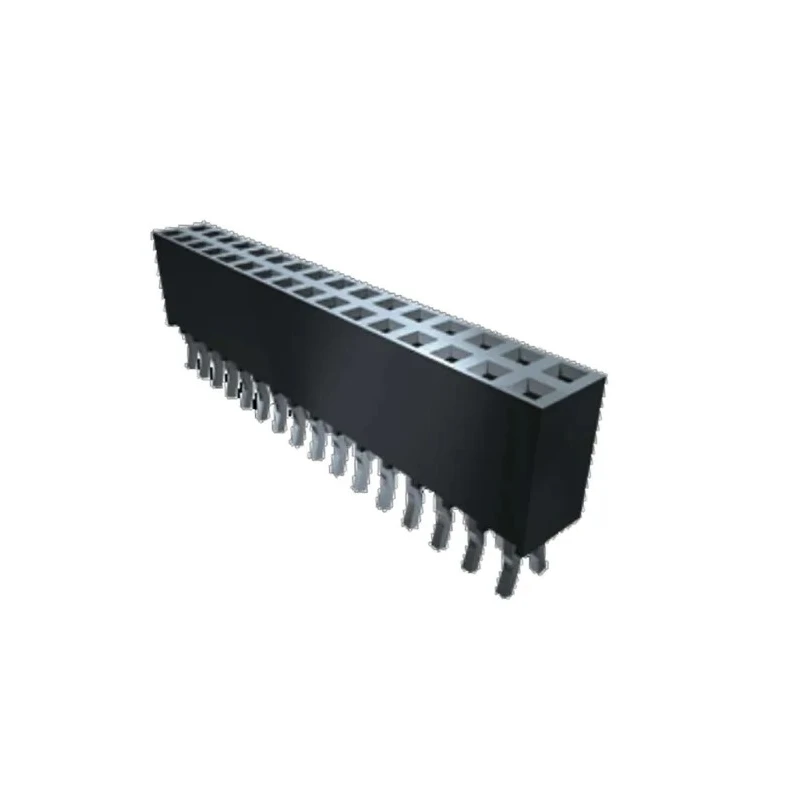

Samtec SSQ Series Straight Through Hole PCB Socket, 6-Contact, 2 Row, 2.54 mm Pitch Through Hole SSQ-103-01-F-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 655V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 6.3A |
| Model | SSQ-103-01-F-D |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Current Rating | 6.3A per pin(2 pins powered) |
| Series | SSQ |
| Termination Type | Through Hole |
| Maximum Operating Temperature | 125°C |
| Sub Type | Square Tail |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Max Cycles | 100 with 10μ"(0.25μm) Au |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 6 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Row Pitch | 2.5mm |
Key Features
- Constructed with liquid crystal polymer housing material ensuring durability.
- Features phosphor bronze female contacts plated with gold for excellent conductivity.
- Supports a current rating of 6.3A per pin with 2 pins powered.
- Operates safely within a voltage rating up to 655V.
- Maintains performance across a wide temperature range from -55°C to 125°C.
- Mount type is through hole with straight orientation for standard PCB layouts.
- Normal mechanical force is 125 grams (4.4N), suitable for reliable contact.
- Capable of withstanding up to 100 mating cycles with gold plating thickness of 10μ" (0.25μm).
Product Description
Samtec SSQ-103-01-F-D model PCB Socket is part of the SSQ series featuring a straight through hole design with two rows and six female contacts. It utilizes a high-performance liquid crystal polymer housing to withstand demanding industrial and electronic applications.
The socket is equipped with phosphor bronze contacts plated with gold, offering excellent conductivity and durability in board-to-board connection systems. It supports a current carrying capacity of 6.3A per pin, with two pins powered, making it suitable for medium current applications.
Designed for through hole mounting, this connector ensures robust mechanical and electrical reliability in PCB assemblies operating within a voltage of up to 655V and a temperature range of -55°C to 125°C. Its straight orientation and 2.54 mm pitch allow easy integration into standard PCB designs.
The normal insertion force is 125 grams (4.4N), providing secure contact engagement. Additionally, the connector can endure up to 100 mating cycles while maintaining contact surface integrity. It offers no specific standards approvals but follows industry material and design best practices.
Durable liquid crystal polymer housing provides mechanical stability. Gold-plated phosphor bronze contacts ensure low resistance and high reliability. Voltage rating up to 655V for safe operation in power applications. Wide temperature tolerance from -55°C to 125°C for various environments.
Through hole mount with straight orientation for ease of assembly. High current rating of 6.3A supports moderate power usage. Designed for 100 mating cycles with standard force rating to guarantee lasting service life.
This PCB socket is widely applicable in industrial electronics, manufacturing, telecommunications, and other commercial electronic systems requiring reliable board-to-board interconnects. Samtec's SSQ series is known for quality and precision engineering.
Explore more PCB Sockets and connectors for your design and manufacturing needs at EnvMart.
