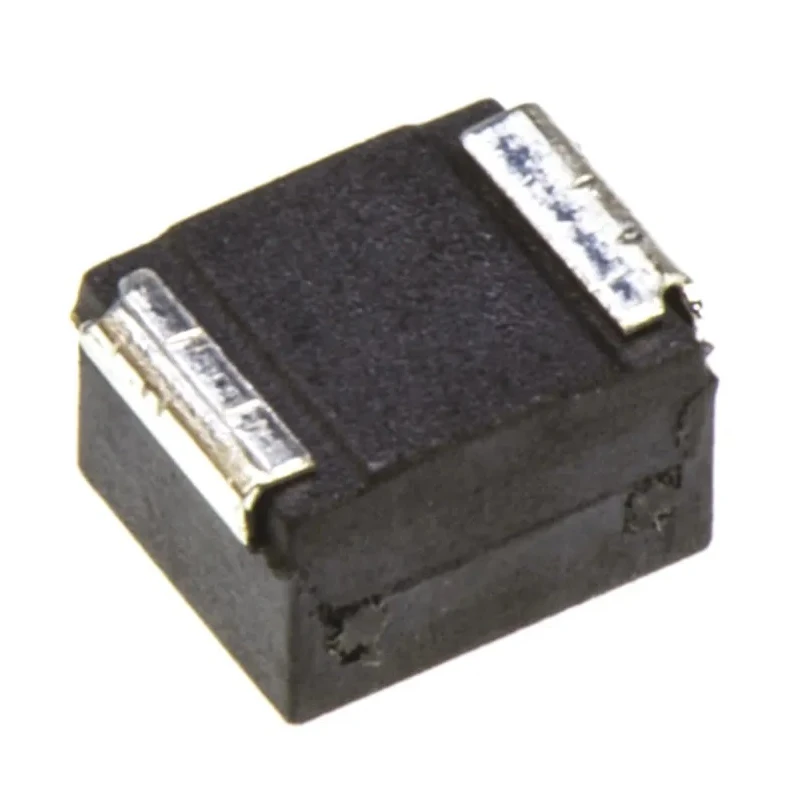

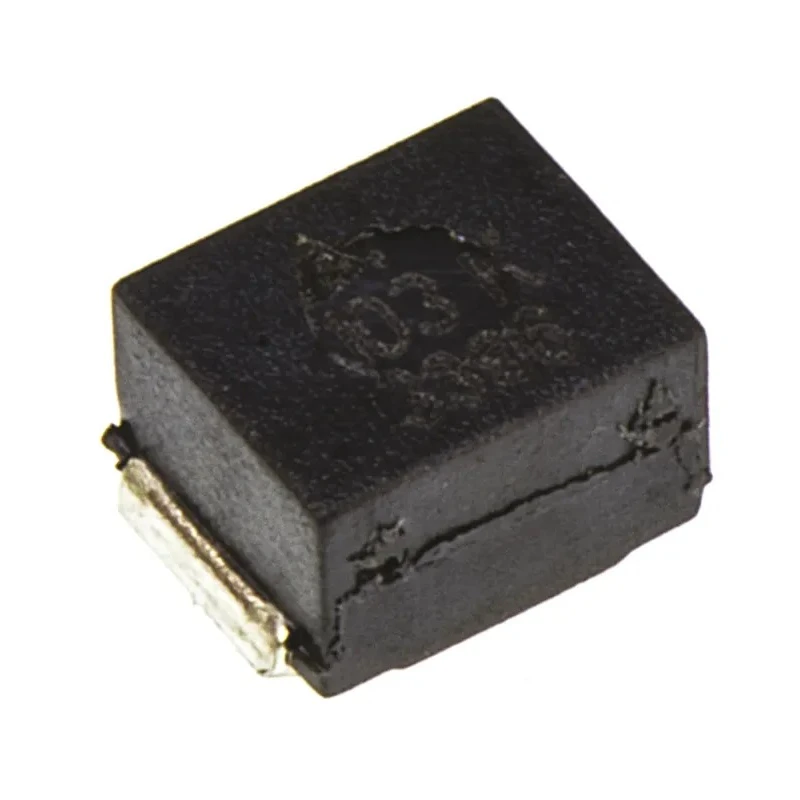

TDK 1210 Wirewound Surface Mount Inductor with Ferrite Core 10 μH ±10 % 180 mA Idc Q:27 B82422A1103K100

TDK B82422A1103K100 is a wirewound surface mount inductor optimized for electronic components requiring stable inductance and high quality factor in a compact 1210 package size. Designed with a ferrite core, this inductor offers exceptional magnetic properties to efficiently store energy while minimizing core losses and EMI.

This inductor boasts an inductance value of 10 μH with a tolerance of ±10 %, supporting a maximum DC current of 180 mA. The quality factor of 27 at its self-resonant frequency of 25 MHz ensures low losses in high-frequency applications, making it ideal for power management, signal filtering, and noise suppression circuits.

Constructed for industrial and automotive use, the inductor meets the rigorous AEC-Q200 automotive standard and is RoHS compliant, ensuring environmental safety and high reliability under harsh conditions. It is moulded for robust surface mounting and supports standard PCB assembly via tape and reel packaging.

The component measures 3.2 mm in length, 2.5 mm in depth, and 2 mm in height, providing a small footprint suitable for compact electronics. It has a maximum DC resistance of 1.6 Ω, contributing to efficient energy handling with minimal resistive loss.

TDK's B82422A1103K100 inductor is suitable for a broad range of industries including communications, automotive electronics, consumer electronics, and industrial equipment. Its ability to withstand temperatures from -55°C to 125°C adds to its versatility in challenging operational environments.

Wirewound construction provides high electrical stability. Compact 1210 surface mount package suitable for tight PCB layouts. Inductance of 10 μH with ±10 % tolerance ensures precision filtering. Maximum DC current rating of 180 mA allows moderate current applications.

High quality factor (Q) of 27 for reduced losses at resonance. Ferrite core material enhances magnetic performance and reduces losses. Rated for operating temperatures from -55°C to 125°C. RoHS compliant and automotive grade AEC-Q200 certified for reliability.

Maximum DC resistance of 1.6 Ω minimizes resistive losses. Suitable for reflow (infrared and vapor phase) and wave soldering processes.
