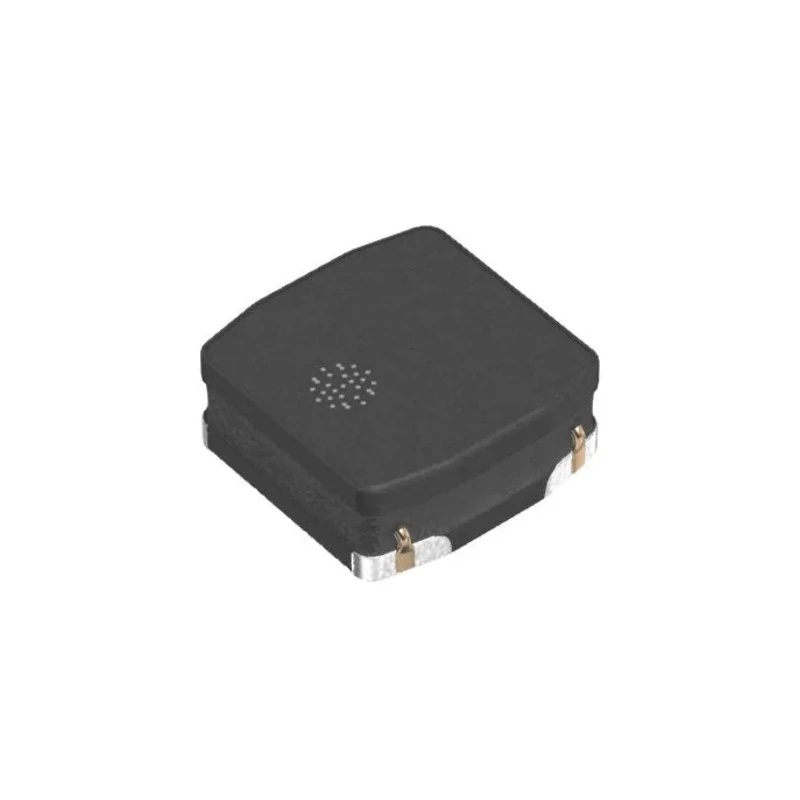

TDK Shielded Wirewound Surface Mount Inductor with Metal Core, 1 μH ±20/±30% Inductance, 4.62 A Maximum DC VLS3012HBX-1R0M

TDK VLS3012HBX-1R0M is a shielded wirewound surface mount inductor featuring a metal core optimized for power circuit applications. It provides an inductance of 1 μH with a tolerance of ±20 to ±30%, capable of handling a maximum DC current of 4.62 A, making it suitable for high-performance compact electronics. The inductor is housed in a 3012 package measuring 3 mm in length and depth, and 1.2 mm in height, allowing compatibility with high-density PCB layouts.

The device is constructed with a metal magnetic core that enhances magnetic shielding and increases current capacity compared to conventional inductors. It supports operating temperatures from -40°C up to 105°C, making it robust for various applications. With a maximum DC resistance of 47 mΩ, it offers efficient current flow and minimal power loss.

This inductor complies with important industry standards including Halogen Free, Lead Free, REACH, RoHS, and is SVHC-free, ensuring environmental safety and regulatory compliance. Its surface mount termination style and wirewound construction support reliable electrical performance in demanding conditions.

Ideal industrial and commercial applications include devices such as hard disk drives (HDD), solid state drives (SSD), digital video cameras, digital still cameras, mobile display panels, smartphones, tablet terminals, portable gaming devices, and compact power supply modules. This makes it a vital component in modern electronics manufacturing and repair.

Metal core construction for enhanced magnetic shielding and current handling. Compact 3012 surface mount package suitable for high-density PCB layouts. Wide operating temperature range of -40°C to 105°C ensures reliability.

Low maximum DC resistance of 47 mΩ reduces power losses. Compliance with environmental and safety standards including RoHS and REACH. Wirewound inductor construction provides precise inductance and durability. Supports current load up to 4.62 A for power circuits.

Versatile application in mobile, computing, and compact power supply devices. Explore additional Surface Mount Inductors and reliable TDK components at EnvMart for comprehensive electronics assembly and repair solutions.
