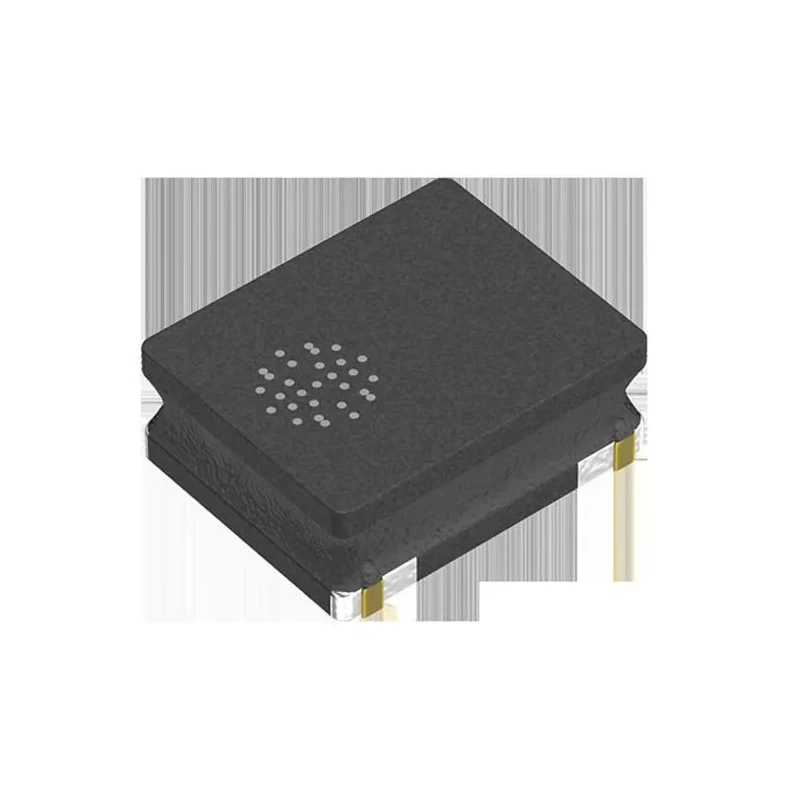

TDK Shielded Wirewound Surface Mount Inductor with Metal Core 3.3 μH ±20 % 1.26 A Idc Package 252010 VLS252010HBX-3R3M-1
Specifications
| Country of Origin | China |
|---|---|
| Brand | TDK |
| Height | 1mm |
| Length | 2.5mm |
| Model | VLS252010HBX-3R3M-1 |
| Depth | 2mm |
| Series | VLS-HBX-1 |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Metal |
| Inductance | 3.3μH |
| Standards/Approvals | Halogen Free, Lead Free, REACH SVHC-Free, RoHS Pb |
| Package/Case | 252010 |
| Maximum DC Current | 1.26A |
| Maximum DC Resistance | 178mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Wirewound |
| Application guides | Smart phones/tablets |
Key Features
- Features a metal magnetic core for enhanced magnetic shielding and compatibility with high-density mounting.
- Compact 252010 package with dimensions of 2.5mm length, 2mm depth, and 1mm height.
- Maximum DC resistance is 178 mΩ ensuring efficient current flow.
- Operates reliably in temperatures from -40°C to 105°C with halogen free, lead free, REACH SVHC-Free, and RoHS Pb compliance.
- Designed for power circuits in smart phones, tablets, HDDs, SSDs, DVCs, and portable electronic devices.
- Wirewound construction supports larger currents with stable electrical performance.
Product Description
TDK VLS252010HBX-3R3M-1 is a shielded wirewound surface mount inductor featuring a metal core, delivering an inductance of 3.3 μH with a tolerance of ±20 % and a maximum DC current rating of 1.26 A. This component fits in a 252010 case size, measuring 2.5mm in length, 2mm in depth, and 1mm in height, making it suitable for compact electronic assemblies.
This inductor employs a high magnetic shield construction with metallic magnetic material, enabling large current handling capabilities and compatibility with high-density PCB layouts. It demonstrates a maximum DC resistance of 178 mΩ, balancing inductance performance with power loss minimization.
The product is qualified for operation in a wide temperature range from -40°C to 105°C. Environmentally compliant certifications include halogen free, lead free, REACH SVHC-Free, and RoHS Pb, supporting sustainable electronic component requirements.
Common industrial and commercial applications encompass power circuits for smartphones, tablet terminals, hard disk drives (HDDs), solid-state drives (SSD), digital video cameras (DVCs), digital still cameras (DSCs), mobile display panels, and portable gaming devices. The wirewound construction enhances durability and electrical stability under demanding conditions.
Metal magnetic core ensures efficient magnetic shielding and reduced electromagnetic interference. Compact surface mount package allows integration in space-constrained designs. Wide operating temperature range supports diverse environmental conditions.
Compliance with RoHS and related environmental standards ensures safe use. Designed for demanding applications in consumer electronics and compact power supply modules.
This TDK inductor is ideal for electronic manufacturing, telecommunications, computing hardware, and other industries requiring reliable, shielded inductive components. Explore our Electronics & Electricals category for related Surface Mount Inductors on EnvMart.
