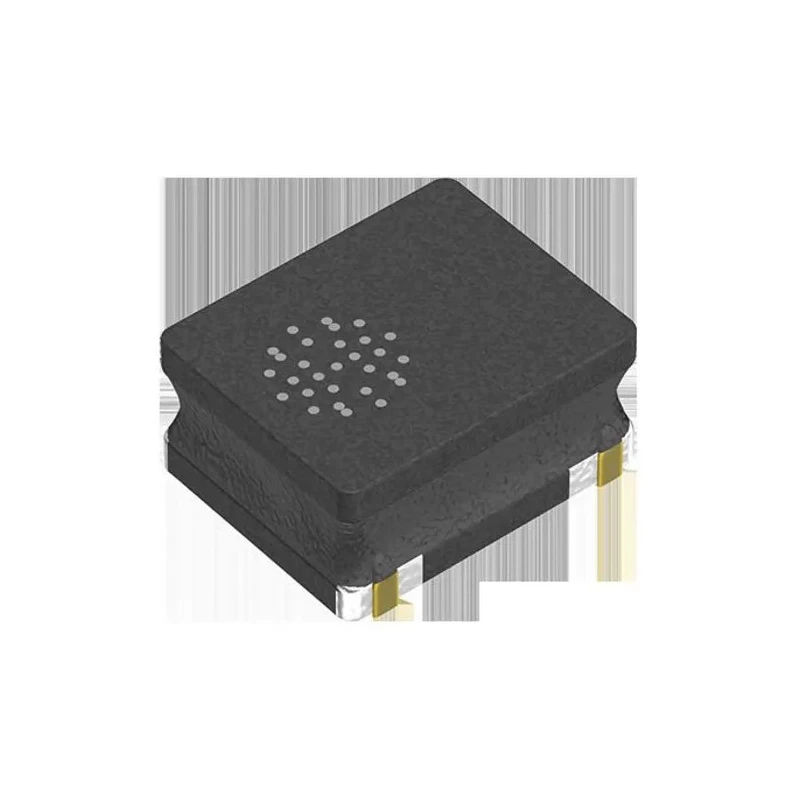

TDK Shielded Wirewound Surface Mount Inductor 2.2 μH ±20% 1.53 A IDC, Ferrite Core, 201610 Package VLS201610CX-2R2M-1

TDK VLS201610CX-2R2M-1 is a shielded wirewound Surface Mount Inductor featuring a ferrite core, with an inductance of 2.2 μH and tolerance of ±20%. It supports a maximum DC current of 1.53 A and is housed in a compact 201610 package measuring 2 mm in length, 1 mm in height, and 1.6 mm in depth.

This high magnetic shield construction makes the inductor suitable for power circuits requiring high-density mounting. The ferrite core is optimized to provide larger current capacity and lower DC resistance of 163 mΩ. The device operates efficiently within a temperature range from -40°C to 105°C, ensuring reliability in varied industrial and consumer electronic applications.

The VLS201610CX-2R2M-1 model is widely used in smart phones, tablet terminals, hard disk drives (HDDs), solid-state drives (SSDs), digital video cameras (DVCs), digital still cameras (DSCs), mobile display panels, portable game devices, and compact power supply modules.

Its surface mount termination style facilitates automated PCB assembly, enhancing production efficiency. The shielded design minimizes electromagnetic interference, improving circuit performance in sensitive electronics.

Magnetic shield type wound inductor for power circuits using ferrite material. High magnetic shield construction suitable for high-density mounting. Optimized ferrite core for larger current and lower DC resistance. Compact 201610 package with 2 mm length, 1 mm height, and 1.6 mm depth.

Operates reliably between -40°C and 105°C. Compliant with Lead Free, REACH, RoHS, SVHC-free, and Halogen Free standards. Designed for smart phones, tablet terminals, HDDs, SSDs, DVCs, DSCs, and portable game devices. Ideal for compact power supply modules and mobile display panels.

EnvMart offers this TDK inductor as a reliable component for advanced electronic manufacturing and repair, supporting a diverse range of industrial, consumer electronics, and communication equipment applications.
