STMicroelectronics 100 V 20 A Schottky Diode 3-Pin Surface Mount TO-252 Package FERD20S100SB-TR

Free Delivery in India | Lowest Global Shipping Charges

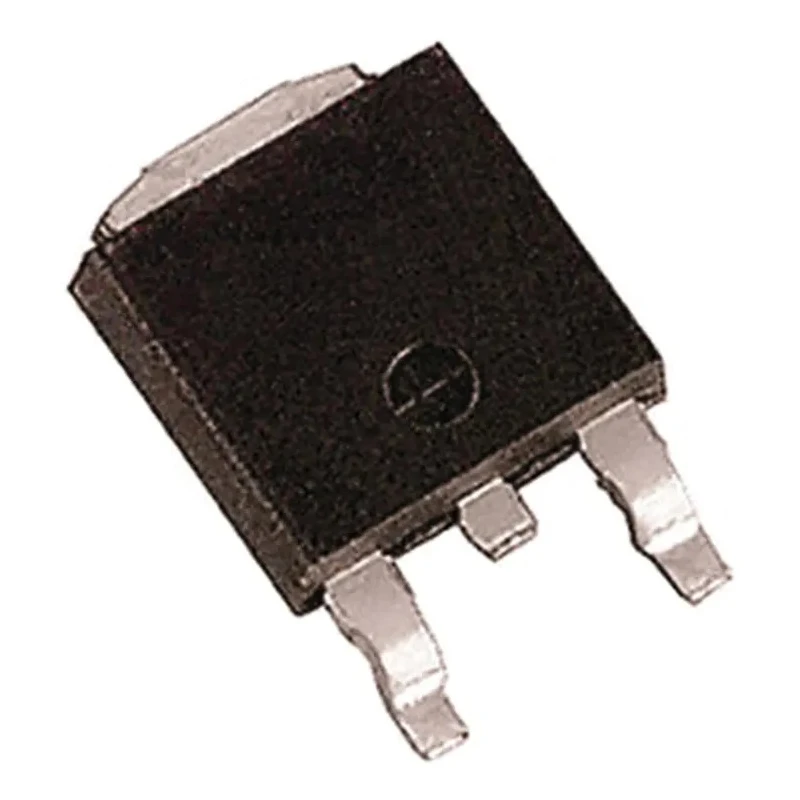

STMicroelectronics 100 V 20 A Schottky Diode 3-Pin Surface Mount TO-252 Package FERD20S100SB-TR

Name: STMicroelectronics 100 V 20 A Schottky Diode 3-Pin Surface Mount TO-252 Package FERD20S100SB-TR
Brand: STMicroelectronics
SKU: 398450
Price: 0.75 USD
Availability: InStock



Category Schottky Diode Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	2.4mm
Length	6.73mm
Model	FERD20S100SB-TR
Width	6.22mm
Mount Type	Surface
Series	FERD20S100S
Maximum Operating Temperature	175°C
Package Type	TO-252
Pin Count	3
Maximum Continuous Forward Current If	20A
Peak Reverse Repetitive Voltage Vrrm	100V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	12mA
Peak Non-Repetitive Forward Surge Current Ifsm	150A
Maximum Forward Voltage Vf	760mV

Key Features

Maximum continuous forward current rated at 20A.
Peak reverse repetitive voltage of 100V ensuring excellent blocking capability.
Low forward voltage drop of 760mV for high efficiency operation.
Peak non-repetitive forward surge current up to 150A supports transient conditions.
Compact TO-252 surface mount package with dimensions approximately 6.73mm length, 6.22mm width, and 2.4mm height.
Maximum operating temperature of 175°C enabling reliable performance under thermal stress.
Pin count of 3 suited for standard DPAK mounting footprints.
Stable leakage current and low reverse current of 12mA contribute to energy efficient designs.

Product Description

STMicroelectronics FERD20S100SB-TR is a high-performance Schottky Diode designed for power rectification with a maximum continuous forward current of 20A and peak reverse voltage of 100V. The diode leverages ST’s advanced rectifier technology enabling low forward voltage drop (760mV) and stable leakage current, which helps designers meet stringent energy efficiency standards such as Energy Star 6.0 without requiring synchronous rectification.

This diode is housed in a compact 3-pin TO-252 surface mount package (DPAK) with dimensions approximately 6.73mm in length, 6.22mm width, and 2.4mm height, suitable for space-constrained PCB layouts. It can operate at temperatures up to 175°C, ensuring durability and performance in demanding industrial and consumer electronics applications.

The peak non-repetitive forward surge current of 150A provides robustness against transient overloads, while a low peak reverse current of 12mA minimizes power loss during blocking operation. The diode’s single diode configuration and efficient design make it ideal for power management in devices such as smart phone battery chargers, tablets, compact adapters, and switched-mode power supplies.

STMicroelectronics’ FERD series is known for combining low forward voltage drop and reduced leakage current to facilitate energy-efficient power designs without the cost of synchronous rectification techniques.

Maximum continuous forward current: 20A. Peak reverse repetitive voltage: 100V. Low forward voltage drop: 760mV. Peak forward surge current: 150A. Operating temperature up to 175°C. Compact surface mount TO-252 package. Three-pin configuration for standard PCB mounting.

Low leakage current ensuring energy efficiency. Suitable for industrial, consumer electronics, power supplies, and battery charger applications. Explore more components and solutions in the Electronics & Electricals category at EnvMart for your design and manufacturing needs.
