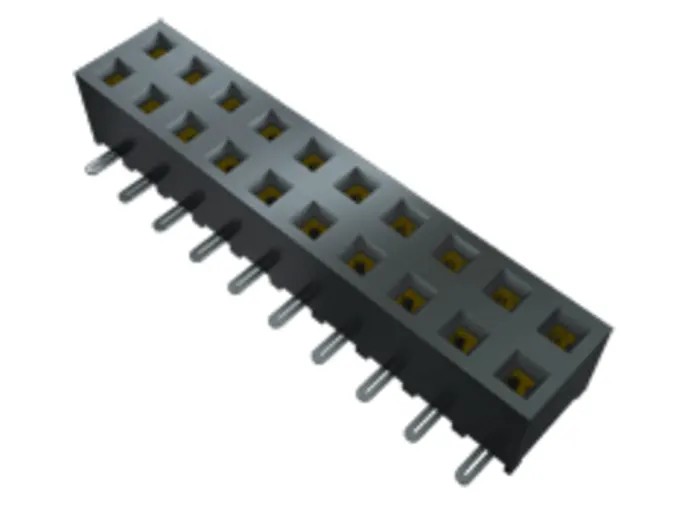

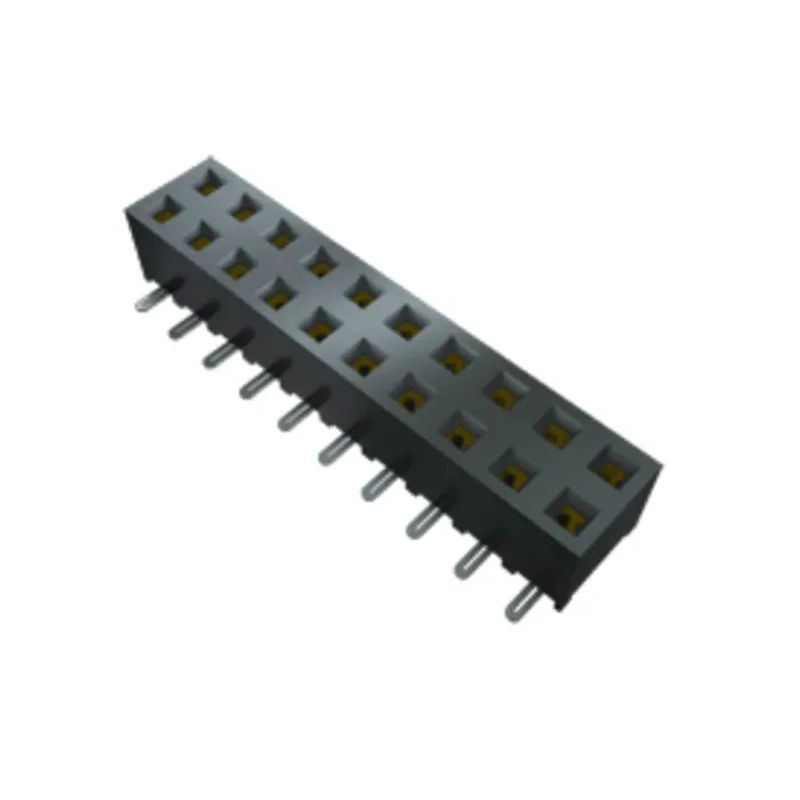

Samtec SMM Series Straight Surface PCB Socket, 14-Contact, 2 Row, 2 mm Pitch Solder SMM-107-02-S-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 3.2A |
| Model | SMM-107-02-S-D |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Series | SMM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 14 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Row Pitch | 1.27mm |
Key Features
- This PCB socket supports 3.2A current capacity to ensure reliable performance.
- The socket uses liquid crystal polymer housing for durability and stability at high temperatures.
- It has female bronze contacts plated with gold to provide excellent conductivity and corrosion resistance.
- Designed with a 350V voltage rating and suitable for operating temperatures ranging from -55°C to 125°C.
- The 2.00 mm Tiger Eye™ high-reliability socket strip ensures precise, secure board connections.
- Surface mount type with a straight orientation facilitates easy PCB assembly.
- The connector system is designed for board-to-board interface applications.
- Row pitch is 1.27 mm, matching precise mechanical standards for PCB layouts.
Product Description
Samtec SMM-107-02-S-D is a high-quality straight surface mount PCB socket designed for board-to-board connectivity with exceptional reliability and precision. Featuring 14 female contacts arranged in 2 rows, this connector utilizes a 2 mm pitch and is terminated by solder to facilitate secure electrical connections on densely packed PCBs.
Constructed with a liquid crystal polymer housing, this socket withstands harsh operating conditions, supporting temperature ranges from -55°C to 125°C. The bronze contacts are gold plated to enhance conductivity and resist corrosion, ensuring long-term performance in demanding industrial and electronic applications. It supports currents up to 3.2A and voltages up to 350V, suitable for a wide range of power and signal transmission requirements.
The 2.00 mm Tiger Eye™ socket strip technology provides high reliability and precise alignment between boards. Its surface mount design and straight orientation allow easy installation on circuit boards, making it suitable for manufacturing, telecommunications, automation, and electronics industries.
This PCB socket is ideal for industrial electronics, manufacturing assembly lines, test equipment, and any application requiring durable board-to-board connectors with consistent electrical contact quality.
This PCB socket supports 3.2A current capacity to ensure reliable performance. The socket uses liquid crystal polymer housing for durability and stability at high temperatures. It has female bronze contacts plated with gold to provide excellent conductivity and corrosion resistance.
Designed with a 350V voltage rating and suitable for operating temperatures ranging from -55°C to 125°C. The 2.00 mm Tiger Eye™ high-reliability socket strip ensures precise, secure board connections. Surface mount type with a straight orientation facilitates easy PCB assembly.
The connector system is designed for board-to-board interface applications. Row pitch is 1.27 mm, matching precise mechanical standards for PCB layouts. Explore more PCB Sockets and electronic connectors at EnvMart for a comprehensive selection of reliable industrial components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current capacity of 3.2A, ensuring reliable performance in various applications.
The voltage rating for this socket is 350V, making it suitable for a range of power and signal transmission requirements.
The housing is made from liquid crystal polymer, while the contacts are female bronze plated with gold for enhanced conductivity and corrosion resistance.
This socket can operate within a temperature range of -55°C to 125°C, accommodating various environmental conditions.
The Samtec SMM-107-02-S-D features 14 female contacts arranged in 2 rows, designed for efficient board-to-board connectivity.
The contact pitch for this socket is 2 mm, which is standard for many PCB layouts.
This model uses solder termination, facilitating secure electrical connections on densely packed PCBs.
The connector is designed with a straight orientation, which aids in easy PCB assembly.
It is ideal for board-to-board interface applications in industrial electronics, manufacturing assembly lines, and telecommunications.
The row pitch for this model is 1.27 mm, matching precise mechanical standards for PCB layouts.
The country of origin for this PCB socket is India.
This PCB socket is part of a board-to-board connector system, designed for high-reliability applications.
