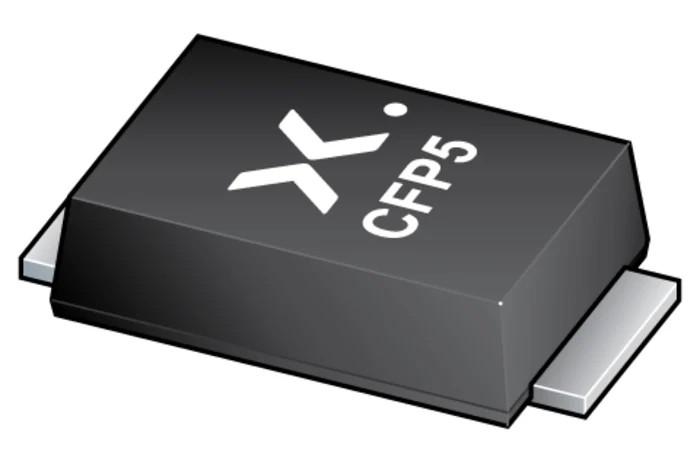

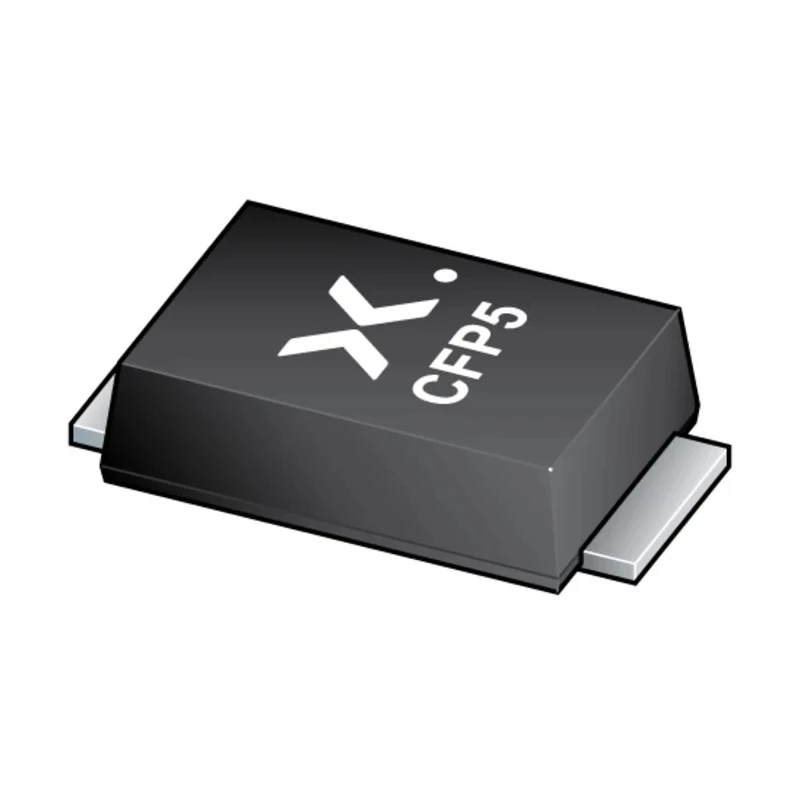

Nexperia 40 V 2 A Low VF MEGA Schottky Barrier Rectifier Diode 2-Pin SOD-128 PMEG4020ETP,115

Free Delivery in India | Lowest Global Shipping Charges

Nexperia 40 V 2 A Low VF MEGA Schottky Barrier Rectifier Diode 2-Pin SOD-128 PMEG4020ETP,115

Name: Nexperia 40 V 2 A Low VF MEGA Schottky Barrier Rectifier Diode 2-Pin SOD-128 PMEG4020ETP,115
Brand: Nexperia
SKU: 398266
Price: 0.2 USD
Availability: InStock



Category Schottky Diode Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1.1mm
Length	4mm
Model	PMEG4020ETP,115
Width	2.7mm
Mount Type	Surface
Series	PMEG4020ETP
Maximum Operating Temperature	175°C
Package Type	SOD-128
Minimum Operating Temperature	-55°C
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	2A
Peak Reverse Repetitive Voltage Vrrm	40V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	15mA
Peak Non-Repetitive Forward Surge Current Ifsm	50A
Maximum Forward Voltage Vf	490mV
Average forward current	IF(AV) ≤ 2 A
Reverse voltage	VR ≤ 40 V

Key Features

Low forward voltage of 490 mV improves efficiency.
Peak reverse repetitive voltage rating of 40 V.
Surface mount device in compact SOD-128 plastic package.
Qualified to automotive AEC-Q101 standard for reliability.
Operates reliably at temperatures from -55°C up to 175°C.
High surge current capability of 50 A peak non-repetitive forward surge current.
Integrates guard ring for stress protection.
Ideal for low voltage rectification and DC/DC converter applications.

Product Description

Nexperia PMEG4020ETP,115 is a low VF MEGA Schottky barrier rectifier diode in a 2-pin SOD-128 surface mount package designed for high efficiency and high power capability applications.

This single diode offers a maximum continuous forward current of 2 A and a peak reverse repetitive voltage of 40 V, making it suitable for switching power supplies, DC to DC converters, and automotive electronics. The device incorporates an integrated guard ring that provides stress protection to enhance reliability.

Featuring a low forward voltage drop of 490 mV, it reduces power loss thereby improving overall circuit efficiency. The diode withstands high peak non-repetitive forward surge currents up to 50 A and is qualified to compliant with automotive industry AEC-Q101 standards, ensuring ruggedness and durability in harsh environments.

Its compact SOD-128 plastic package with dimensions approximately 4 mm length, 2.7 mm width, and 1.1 mm height allows for space-saving PCB layouts in both commercial and industrial applications.

Operating temperature range from -55°C to 175°C makes it suitable for elevated temperature conditions commonly encountered in automotive and industrial use cases. Applications include reverse polarity protection, high frequency rectification, and efficient power conversion in embedded and consumer electronics systems.

Key features include low forward voltage, high power clip-bonding technology, and AEC-Q101 compliance for automotive reliability. This makes the Nexperia PMEG4020ETP,115 diode an excellent choice for engineers designing space-efficient, reliable power rectification solutions.

Low forward voltage drop of 490 mV. High continuous forward current of 2 A. Peak reverse voltage rating of 40 V. Compact surface mount SOD-128 package. Qualified to automotive AEC-Q101 standard. Wide operating temperature range: -55°C to 175°C.

High surge current capability of 50 A. Integrated guard ring for stress protection. Ideal for DC to DC converters and switching power supplies. Enables efficient low voltage rectification and reverse polarity protection.
