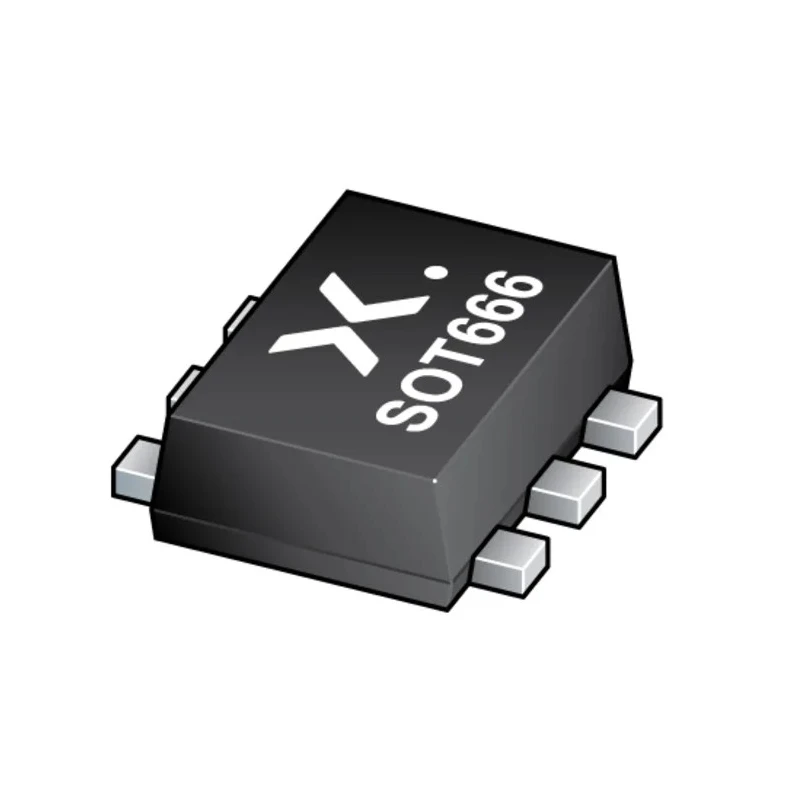

Nexperia Schottky Diode 30 V 200 mA Dual 2-Pin SOT-666 Surface Mount PMEG3002TV,115

Free Delivery in India | Lowest Global Shipping Charges

Nexperia Schottky Diode 30 V 200 mA Dual 2-Pin SOT-666 Surface Mount PMEG3002TV,115

Name: Nexperia Schottky Diode 30 V 200 mA Dual 2-Pin SOT-666 Surface Mount PMEG3002TV,115
Brand: Nexperia
SKU: 398259
Price: 0.2 USD
Availability: InStock



Category Schottky Diode Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	0.6mm
Length	1.7mm
Model	PMEG3002TV,115
Width	1.3mm
Mount Type	Surface
Series	PMEG3002TV
Maximum Operating Temperature	150°C
Package Type	SOT-666
Minimum Operating Temperature	-65°C
Pin Count	2
Forward Current	≤ 0.2 A
Maximum Continuous Forward Current If	200mA
Peak Reverse Repetitive Voltage Vrrm	30V
Diode Configuration	Dual
Rectifier Type	Schottky
Peak Reverse Current Ir	400μA
Peak Non-Repetitive Forward Surge Current Ifsm	2.5A
Maximum Forward Voltage Vf	480mV
Reverse voltage	≤ 30 V

Key Features

This diode features a very low forward voltage drop of 480 mV for efficient power conversion.
It supports operation over a temperature range of -65°C to 150°C, suiting harsh environments.
The planar MEGA Schottky barrier design provides high efficiency and low power consumption.
The compact SOT-666 package is ultra small and flat-lead, ideal for space-constrained PCB assemblies.
It is well-suited for DC-to-DC converters, switch mode power supplies, and inverse polarity protection.
Peak non-repetitive forward surge current capability is 2.5 A, ensuring robustness against transients.
The diode configuration is dual, providing two Schottky barrier rectifiers in one component.
Forward current is rated at 0.2 A continuous, with a peak reverse current of only 400 µA.

Product Description

The Nexperia PMEG3002TV,115 is a dual Schottky diode designed for surface mount applications requiring low forward voltage and high switching efficiency. It is encapsulated in an ultra-small and flat-lead SOT-666 plastic package, making it especially suitable for compact electronic devices.

This diode supports a maximum continuous forward current of 200 mA and a peak reverse repetitive voltage of 30 V. The very low forward voltage of 480 mV minimizes conduction losses, improving overall device efficiency in power conversion circuits.

Its broad operating temperature range from -65°C to 150°C enables reliable performance in various industrial, automotive, and communication electronic environments. The device features an integrated guard ring for stress protection, enhancing reliability under electrical and thermal stress.

Applications for the PMEG3002TV,115 include switch mode power supplies, DC/DC converters, low voltage rectification, inverse polarity protection, and other low power consumption devices. The diode's planar MEGA Schottky barrier structure is optimized for high efficiency operation.

This diode is surface mount type with a compact 2-pin SOT-666 package. Low voltage rectification ensures minimal power loss in circuits. High efficiency DC-to-DC conversion capability promotes energy savings. Integrated guard ring provides enhanced stress protection.

Planar MEGA Schottky design delivers very low forward voltage and fast switching. Device operates reliably over a wide temperature range (-65°C to 150°C). Suitable for automotive and industrial electronic applications. Peak surge forward current is 2.5 A for transient robustness.

Dual diode configuration simplifies PCB design requirements. This component is ideal for engineers and designers who require a highly efficient, compact Schottky Diode solution for low power and high frequency applications.
