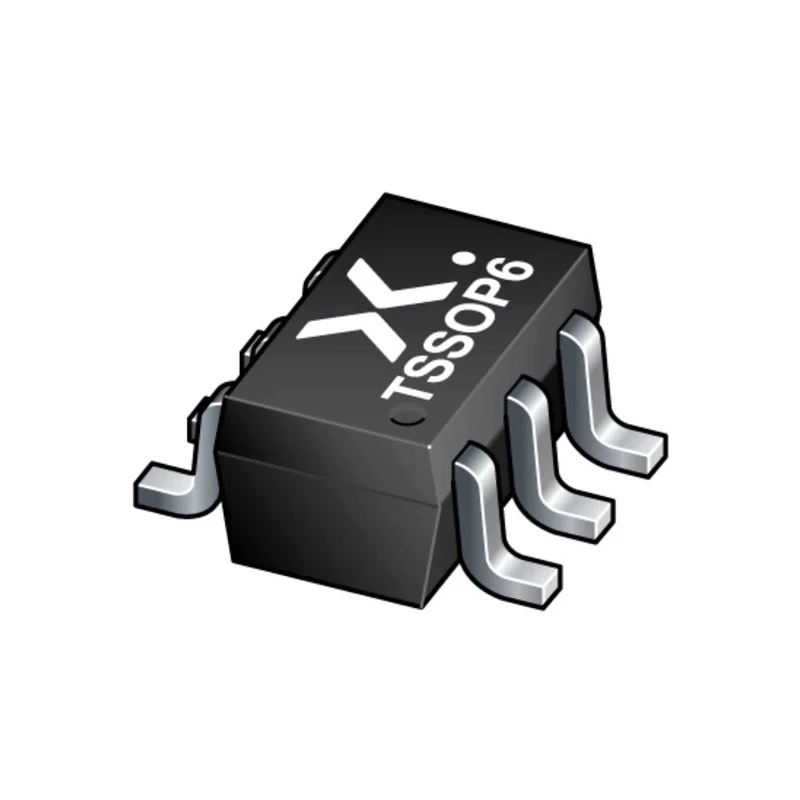

Nexperia Schottky Diode 40 V 120 mA Surface Mount SOT-363 Package BAS40XY,115

Free Delivery in India | Lowest Global Shipping Charges

Nexperia Schottky Diode 40 V 120 mA Surface Mount SOT-363 Package BAS40XY,115

Name: Nexperia Schottky Diode 40 V 120 mA Surface Mount SOT-363 Package BAS40XY,115
Brand: Nexperia
SKU: 398252
Price: 0.13 USD
Availability: InStock



Category Schottky Diode Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1.1mm
Length	2.2mm
Model	BAS40XY,115
Width	1.35mm
Mount Type	Surface
Series	BAS40XY
Maximum Operating Temperature	150°C
Package Type	SOT-363
Minimum Operating Temperature	-65°C
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	120mA
Peak Reverse Repetitive Voltage Vrrm	40V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	10μA
Peak Non-Repetitive Forward Surge Current Ifsm	200A
Maximum Forward Voltage Vf	1V

Key Features

General purpose diode suitable for low-voltage rectification applications.
Ultra-small, low-profile SOT-363 surface mount package reduces PCB space.
Low forward voltage drop enhances efficiency in power management circuits.
Integrated guard ring provides stress protection and high reliability.
High switching speed enables efficient DC-to-DC conversion.
Low leakage current minimizes power loss and current drain.
Meets automotive standard AEC-Q101 for enhanced quality and durability.
Operating temperature range from -65°C to 150°C ensures robust performance.

Product Description

Nexperia BAS40XY,115 is a high-efficiency Schottky diode designed for general-purpose electronic applications requiring fast switching and low forward voltage drop. This diode features a maximum continuous forward current of 120 mA and a peak reverse voltage of 40 V enclosed in a compact SOT-363 package, suitable for automated surface-mount technology (SMT) assembly.

The diode’s ultra-small and low-profile surface mount package makes it ideal for space-constrained applications such as power management circuits, including DC-to-DC converters and low-voltage rectification tasks. Its integrated guard ring technology protects against electrical stress, resulting in improved reliability and longer device lifespan.

With a maximum forward voltage of 1 V and low leakage currents (peak reverse current 10 μA), it ensures lower energy losses and efficient circuit operation. The device is qualified to the AEC-Q101 automotive standard, making it suitable for automotive electronics and other demanding environments.

Key features also include a wide operating temperature range from -65°C to 150°C and a high peak non-repetitive forward surge current of 200 A, providing robustness against transient conditions. Typical use cases include reverse polarity protection, voltage clamping, and general switching in industrial, automotive, and consumer electronics.

General purpose Schottky diode with low forward voltage drop and fast switching speed. Small SOT-363 surface mount package for miniature PCB designs. Integrated guard ring for enhanced stress protection and durability. Compliant with automotive AEC-Q101 standard for robust application.

Wide operating temperature range suitable for industrial and automotive use. High surge current capability supports transient load conditions. Excellent low leakage current properties for efficient power management. Useful in power supply rectification, DC-to-DC conversion, and reverse polarity protection.

Choose the Nexperia BAS40XY,115 Schottky Diode for reliable low-voltage and high-frequency applications. Explore the wide range of semiconductor components available at EnvMart for advanced electronics design needs.
