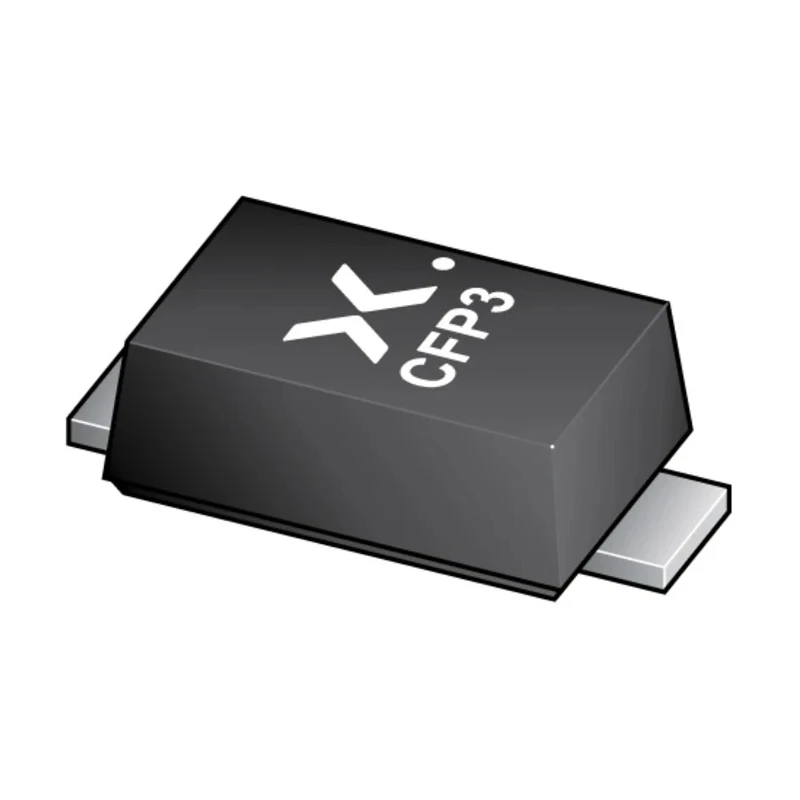

Nexperia 40 V 1.4 A Surface Mount Schottky Diode 2-Pin SOD-123W PMEG4010ETR,115

Free Delivery in India | Lowest Global Shipping Charges

Nexperia 40 V 1.4 A Surface Mount Schottky Diode 2-Pin SOD-123W PMEG4010ETR,115

Name: Nexperia 40 V 1.4 A Surface Mount Schottky Diode 2-Pin SOD-123W PMEG4010ETR,115
Brand: Nexperia
SKU: 398250
Price: 0.12 USD
Availability: InStock



Category Schottky Diode Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1.1mm
Length	2.8mm
Model	PMEG4010ETR,115
Width	1.9mm
Mount Type	Surface
Series	PMEG4010ETR
Maximum Operating Temperature	175°C
Package Type	SOD-123W
Minimum Operating Temperature	-55°C
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	1.4A
Peak Reverse Repetitive Voltage Vrrm	40V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	30mA
Peak Non-Repetitive Forward Surge Current Ifsm	50A
Maximum Forward Voltage Vf	490mV
Peak Reverse Recovery Time trr	4.4ns
Average forward current	IF(AV) ≤ 1 A
Reverse voltage	VR ≤ 40 V

Key Features

Operating voltage of up to 40 volts ensures reliability in various electronic circuits.
Maximum continuous forward current of 1.4 amperes supports medium power applications.
Low forward voltage drop of 490 millivolts improves energy efficiency.
Compact 2-pin SOD-123W surface-mount design saves PCB space.
Fast switching with 4.4 nanoseconds peak reverse recovery time.
High peak non-repetitive forward surge current up to 50 amperes.
Qualified for automotive applications with AEC-Q101 certification.
Wide operating temperature range from -55°C to 175°C for harsh environments.

Product Description

Nexperia PMEG4010ETR,115 is a high-performance Schottky barrier diode designed for medium power applications requiring efficiency and reliability. Encapsulated in a small SOD-123W surface-mount plastic package, this diode offers a maximum continuous forward current of 1.4 A and peak reverse voltage of 40 V.

This diode features a low forward voltage drop of 490 mV which reduces power loss and heat generation in electronic circuits, enhancing overall efficiency. Its peak reverse recovery time of 4.4 ns enables rapid switching and improved performance in high-frequency applications.

Designed for robust industrial, automotive, and consumer electronics, the PMEG4010ETR,115 diode operates reliably within a wide temperature range from -55°C to 175°C. The device complies with the AEC-Q101 automotive standard, making it suitable for automotive power management and electronic control units.

Key technical attributes include a peak non-repetitive forward surge current of 50 A, low peak reverse current of 30 mA, and compact dimensions of 2.8 mm length by 1.9 mm width and 1.1 mm height, enabling space-saving PCB layouts.

Operating voltage of up to 40 volts ensures reliability in various electronic circuits. Maximum continuous forward current of 1.4 amperes supports medium power applications. Low forward voltage drop of 490 millivolts improves energy efficiency.

Compact 2-pin SOD-123W surface-mount design saves PCB space. Fast switching with 4.4 nanoseconds peak reverse recovery time. High peak non-repetitive forward surge current up to 50 amperes. Qualified for automotive applications with AEC-Q101 certification.

Wide operating temperature range from -55°C to 175°C for harsh environments. Low peak reverse current of 30 milliamperes enhances performance.

This medium-power Schottky diode is ideal for automotive electronics, power supply rectification, battery management, and other semiconductor applications requiring efficient low voltage drop diodes with fast switching. Explore more semiconductor components in the Schottky Diodes & Rectifiers category at EnvMart.
