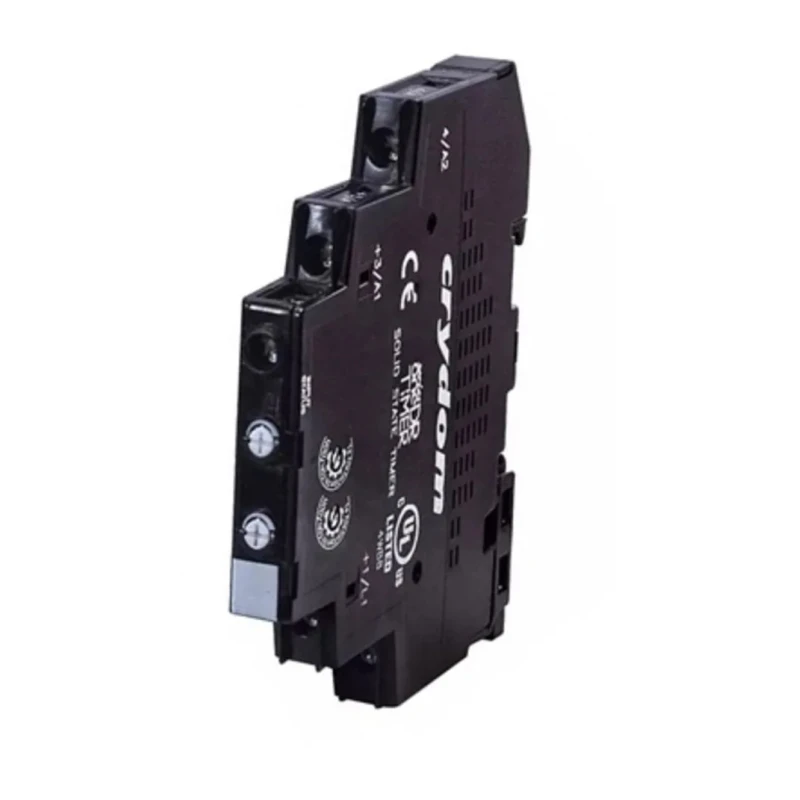

Crydom OneDR Series DIN Rail Timer Relay, 2-Contact, 48 V dc 12V ac, 24 V ac, 0.1 s to 100 h, 1-Function, SPST DRTB06D06

The Crydom DRTB06D06 from the OneDR Series is a DIN Rail mounted timer relay designed for industrial, automation, and electrical control applications requiring precise timing functions. It features a 2-contact, SPST switch configuration providing reliable switching control for AC loads up to 24 and 280 V ac.

This timer relay operates with supply voltages of 48 V dc and 12 to 24 V ac, capable of timing ranges from as low as 0.1 seconds up to 100 hours, making it adaptable for a wide range of timing requirements.

The device is built for durability with a screw terminal connection type and an IP20 housing incorporating a unique integrated heat sink design to ensure thermal stability and long operational life. Its compact form factor, measuring 87.7 mm in length, 83 mm in height, and only 11 mm in width, allows for efficient installation in compact panels.

Operating temperature ranges from -30°C to 80°C, the timer relay is compliant with major industry standards such as IEC 60068-2-6, IEC 61000-4-5, IEC 60068-2-27, IEC 62314, IEC 61000-4-4, IEC 60947, and is UL Listed, ensuring quality and reliability in various environments.

The output power rating is 6 A single channel, suitable for controlling small to medium electrical loads with precision timing functions. The relay is ideal for use in industrial automation, electrical control panels, HVAC systems, manufacturing automation, and laboratory or commercial timing applications.

Compact DIN Rail mounting format for efficient panel space usage. Single-channel output with a 6 A current rating for robust performance. Wide timing range from 0.1 seconds to 100 hours suits diverse automation tasks. Durable housing with integrated heat sink ensures long-term reliability.

Complies with multiple international safety and performance standards. Screw terminal type for secure, stable wiring connections. LED status indicator provides clear operational feedback. Highly suitable for automation and control systems requiring precise time delays.

The Crydom OneDR Series DRTB06D06 timer relay offers a combination of versatility, compact design, and standards compliance, making it an excellent choice for professionals seeking reliable timing devices for electrical and automation projects. Browse the Electronics & Electricals category on EnvMart for similar Timer Relay products and related accessories.
