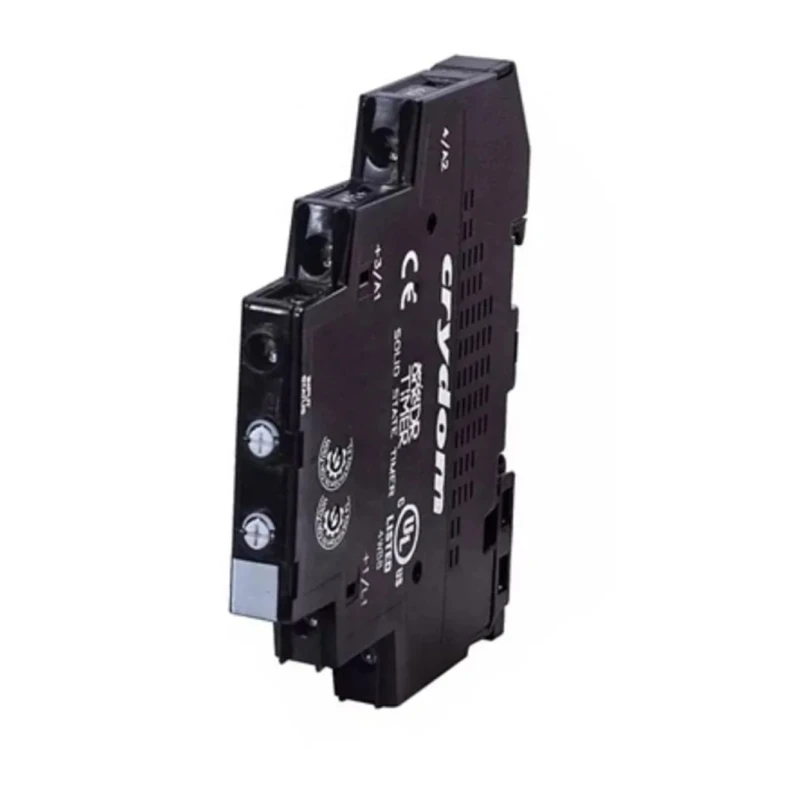

Crydom OneDR Series DIN Rail Timer Relay, 2-Contact, 48 V dc 180V ac, 240 V ac, 0.1 s to 100 h, 1-Function, SPST DRTL24A06R

The Crydom OneDR Series DIN Rail Timer Relay, model DRTL24A06R, is a reliable and versatile timing device designed for industrial and commercial automation applications. It supports supply voltages of 48 V dc and 180 to 240 V ac with a switching voltage capability up to 280 V ac, making it compatible with diverse electrical control systems.

Its compact form factor fits standard DIN rail setups with dimensions 87.7mm length, 83mm height, and 11mm width, optimizing panel space utilization. This relay features a single timer function with an extensive timing range from 0.1 seconds up to 100 hours, catering to a wide variety of timing requirements in machinery and process controls.

Equipped with a SPST contact configuration, it handles up to 6 amps of contact current, suitable for controlling moderate loads. The screw terminal design ensures a secure and straightforward wiring process, enhancing installation efficiency.

Operating reliably within a broad temperature range from -30°C to 80°C, this timer relay withstands harsh industrial environments. Additional robustness is provided by the IP20 rated housing with an integrated heat sink and LED status indication for real-time operational feedback.

Compliance with international standards including IEC 60068 series and UL listings guarantees the safety, electromagnetic compatibility, and durability of this product for demanding uses. Applications span industrial automation, HVAC control systems, manufacturing process timing, and other electrical control circuits requiring precise time delays.

Supports supply voltages of 48 V dc and 180 to 240 V ac for flexible power input. Compact DIN rail mounting design measuring 87.7mm length by 83mm height and 11mm width. Features a single timer function with offset double ring end multifunction capability.

Equipped with screw terminal connections for secure wiring and easy installation. Operates reliably between -30°C and 80°C ambient temperature range. Switches up to 6 amps contact current suitable for standard control applications.

Repeating cycle timing mode enables cyclic operation control tasks. LED status indicator and IP20 housing with integrated heat sink for durability. Complies with IEC and UL standards ensuring industrial safety and reliability.

This Crydom OneDR series Timer Relay is ideal for industrial automation, manufacturing process control, HVAC systems, and other electrical timing applications requiring durable and precise time delay functions. Explore the extensive range of relays and timers in the EnvMart catalog to find components tailored to your specialized control system needs.
