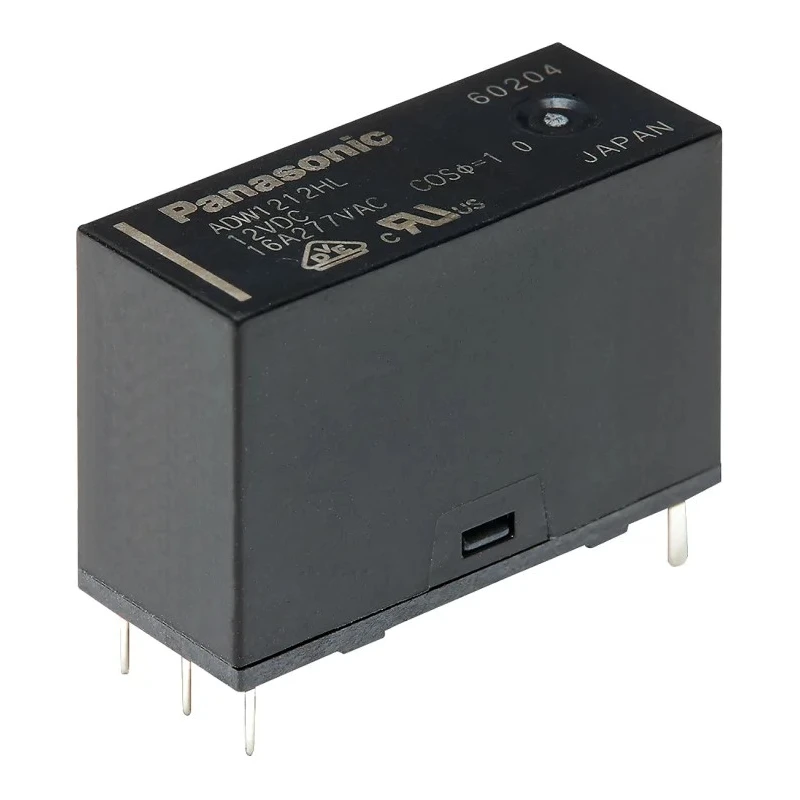

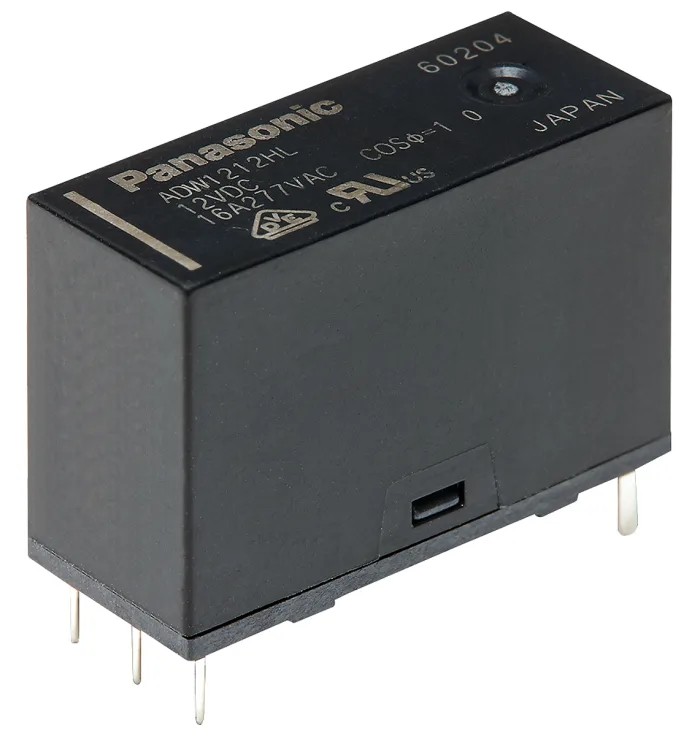

Panasonic PCB Power Relay 12V dc Coil 16A Switching Current SPST ADW1212HLW

Panasonic ADW1212HLW PCB Power Relay is a high-performance power relay with a 12V dc coil and 16A switching current, configured as SPST (Single Pole Single Throw). Designed for PCB mounting, this relay combines compact dimensions with robust reliability, making it suitable for various industrial and domestic applications.

Key attributes of this relay include its ability to operate reliably at extreme temperatures, with a minimum operating temperature of -40°C and a maximum of 70°C. It features a coil resistance of 360 ohms, and consumes 400mW of coil power. The relay supports switching AC voltage up to 277V ac, making it versatile for diverse electrical environments.

The relay body measures 24mm in length, 15.8mm in height, and 10mm in width, offering a compact footprint for space-constrained designs. It utilizes silver alloy contacts which provide low contact resistance of 100mΩ, ensuring efficient switching performance and long service life.

Certified to multiple international standards including VDE, UL, TV-8, PTI 325V, cULus, cUL, and CSA, this relay guarantees safety and compliance for commercial and industrial installations. It is particularly advantageous for applications in appliances such as refrigerators and washing machines, power supplies, smart meters, and lighting control systems.

The ADW1212HLW series of latching power relays deliver high switching capacity and operate reliably under stressful conditions, supporting industrial, energy, lighting, and appliance sectors. Their compact size and enhanced robustness make them a preferred choice for modern automated systems.

The relay is designed for PCB mount applications with a compact size. It operates reliably at temperatures ranging from -40°C to 70°C. The coil resistance is 360 ohms, consuming 400mW coil power. High switching AC voltage up to 277V ac is supported.

Silver alloy contact material with low contact resistance of 100mΩ ensures high performance. The relay complies with multiple standards including VDE, UL, cULus, and CSA. Dimensions are compact at 24mm length, 15.8mm height, and 10mm width.

This latching relay is robust under stressful operating conditions, ideal for industrial and appliance use. Applications include lighting controls, smart meters, power supplies, refrigerators, and washing machines. Suitable for industries such as appliances, energy, lighting, and industrial automation.
