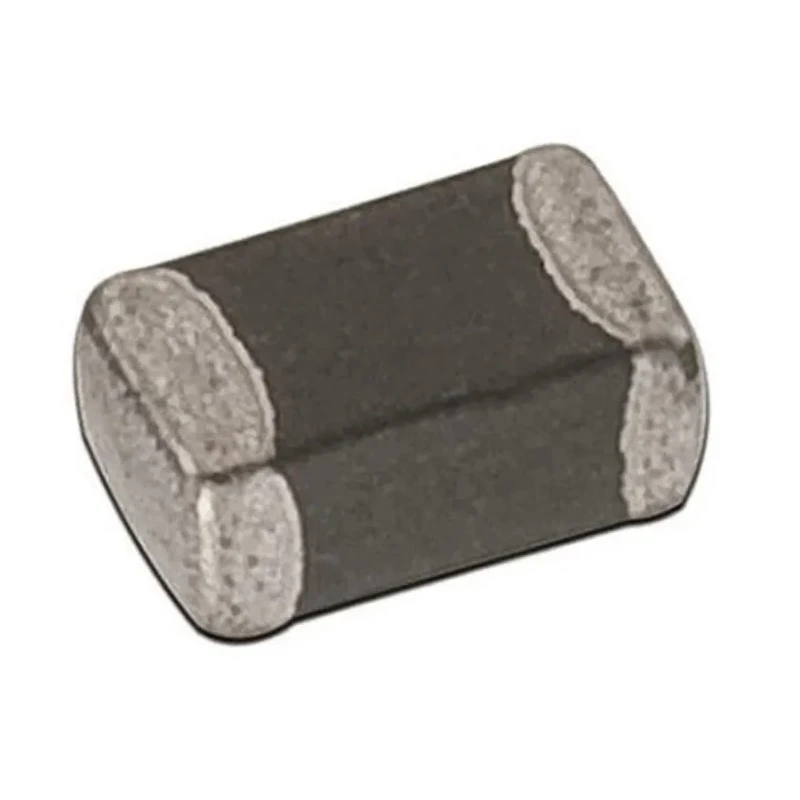

Wurth Elektronik WE-PMI 0805 Shielded Multilayer Surface Mount Inductor 10 μH ±20% 650mA Ferrite Core 74479777310

Wurth Elektronik 74479777310 WE-PMI 0805 Shielded Multilayer Surface Mount Inductor is specified at 10 μH inductance with a ±20% tolerance, designed to support maximum DC current of 650mA. This multilayer inductor has a ferrite core providing magnetic shielding to suppress interference and crosstalk in electronic circuits.

The component features a low DC resistance of 500mΩ, a maximum self-resonant frequency of 25MHz, and a minimum quality factor of 35, ensuring stable performance under demanding conditions. Its compact 0805 case measures 2 mm in length, 1.25 mm in height, and 1.25 mm in depth, making it suitable for space-constrained applications.

Designed for surface mount technology with tape and reel packaging, it supports operation across a broad temperature range from -40°C to 125°C. The inductor construction is multilayer and moulded for durability and consistent functionality in industrial and commercial electronic devices.

Recommended for applications such as DC-DC converters, especially at high switching frequencies, and portable electronic devices including PDAs and digital cameras. The product complies with REACH and RoHS environmental and safety standards, affirming its suitability for modern electronic manufacturing.

The inductor features magnetic shielding to minimize cross talk in circuits. It has a maximum DC resistance of 500 mΩ ensuring efficient performance. Its operating temperature ranges from -40°C to 125°C suitable for varied environments.

Packaged in tape & reel with an 0805 case size, dimensions are 2 mm length, 1.25 mm height, and 1.25 mm depth. Constructed with a multilayer design, enhancing inductance stability and quality factor of minimum 35. The component is recommended for reflow soldering and complies with REACH and RoHS standards.

Ideal usage includes DC-DC converters and portable electronic devices such as PDAs and digital cameras.

This Wurth Elektronik WE-PMI series inductor offers reliable performance for industrial, laboratory, and commercial electronics, suitable for use in demanding designs requiring noise reduction and high current tolerance. Explore our broad selection of inductors and surface mount components at EnvMart for innovative electronics solutions.
