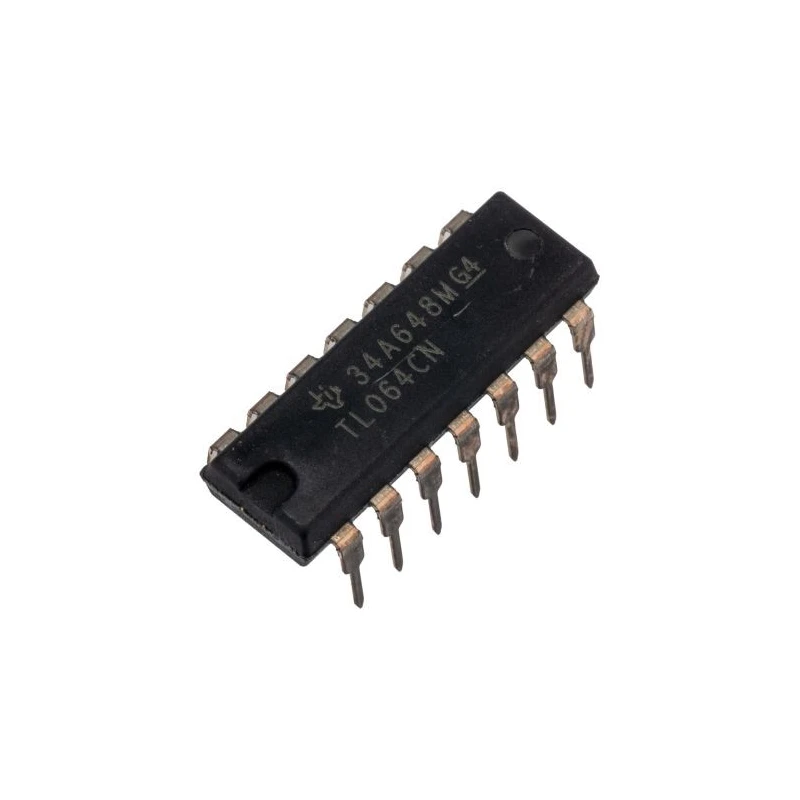

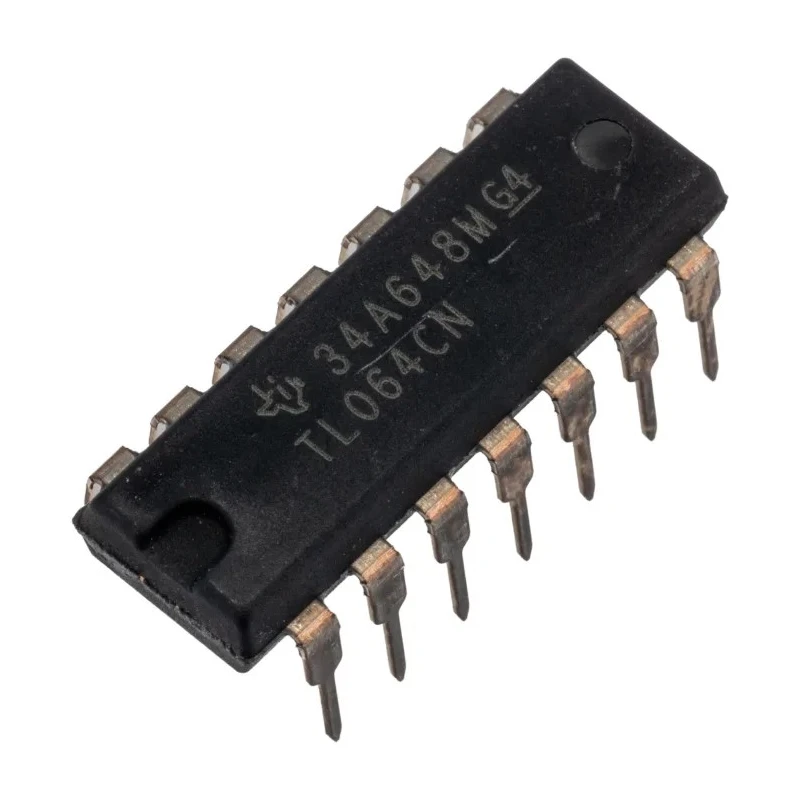

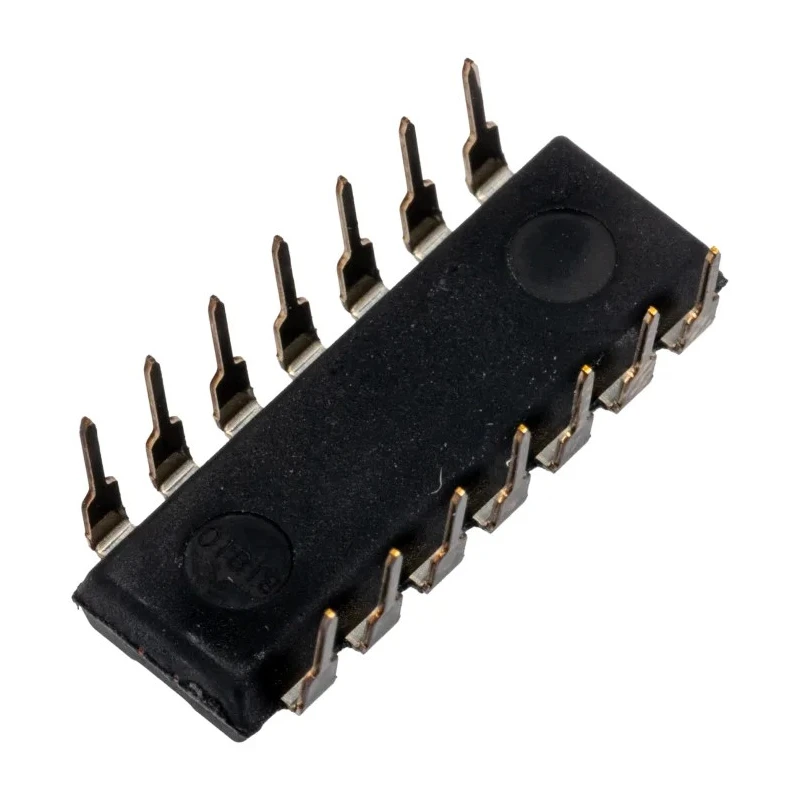

Texas Instruments Operational Amplifier 1 MHz, 14-Pin 15V PDIP TL064CN
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | TL064CN |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | TL064 |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 4 |
| Pin Count | 14 |
| Maximum Supply Voltage | 15V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | 1 nA |
| Slew Rate | 3.5V/μs |
| Input Offset Current | 5 nA |
Key Features
- Features a 1 MHz gain bandwidth product for moderate frequency amplification tasks.
- Constructed in a 14-pin PDIP package with through-hole mounting compatibility.
- Supports a supply voltage range from 5 V minimum to 15 V maximum.
- Includes four independent channels in a single package to handle multiple signals.
- Low input bias current and offset voltage ensure high-accuracy signal processing.
- Operates reliably within 0°C to 70°C temperature range for industrial environments.
- Has a slew rate of 3.5 V/µs providing a responsive output for dynamic signals.
- Compact dimensions of 19.3 mm length, 6.35 mm width, and 4.57 mm height enable space-efficient PCB design.
Product Description
Texas Instruments TL064CN is a JFET input operational amplifier designed with the TL060 series' low power consumption to enhance efficiency in electronic circuit amplification. It features a gain bandwidth product of 1 MHz, making it suitable for applications requiring moderate frequency amplification.
The device comes in a 14-pin PDIP package, compatible with through-hole mounting, facilitating easy insertion into printed circuit boards. Its four independent channels allow amplification of multiple signals simultaneously, making it ideal for multi-channel audio, industrial control, and instrumentation uses.
The TL064CN supports a supply voltage range between 5 V to 15 V, accommodating a variety of power supply setups, and maintains operational stability across an industrial temperature range from 0°C to 70°C. It exhibits low input bias current of 1 nA and input offset voltage of 20 µV, ensuring precise and low-noise amplification.
With a slew rate of 3.5 V/µs, the amplifier provides fast response to input signal changes, suitable for dynamic signal environments. Its compact dimensions (19.3 mm length x 6.35 mm width x 4.57 mm height) allow usage in space-constrained electronic assemblies.
1 MHz gain bandwidth product supports diverse amplification needs. Four-channel configuration enables multi-signal handling. Low offset voltage and bias current enhance signal integrity. Wide supply voltage range for flexibility in circuit design.
Robust industrial temperature tolerance ensures reliable operation. Compact PDIP package for standard PCB integration. Slew rate of 3.5 V/µs for responsive signal processing.
This operational amplifier is widely utilized in industrial control systems, audio electronics, laboratory instrumentation, and automated machinery requiring reliable and efficient signal amplification. The TL064 series by Texas Instruments is recognized for combining performance with low power consumption, making it a preferred choice for designers and engineers in electronics development.
Explore the broad selection of Operational Amplifiers at EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TL064CN features a gain bandwidth product of 1 MHz, suitable for moderate frequency amplification tasks.
This model includes four independent channels, allowing it to handle multiple signals simultaneously.
It supports a supply voltage range from 5 V minimum to 15 V maximum, accommodating various power supply setups.
The compact dimensions of this unit are 19.3 mm in length, 6.35 mm in width, and 4.57 mm in height.
It operates reliably within a temperature range of 0°C to 70°C, making it suitable for industrial environments.
The TL064CN has a slew rate of 3.5 V/µs, providing a responsive output for dynamic signals.
This model is constructed in a 14-pin PDIP package, compatible with through-hole mounting.
It exhibits a low input bias current of 1 nA, ensuring high-accuracy signal processing.
The TL064CN has an input offset voltage of 20 µV, contributing to its low-noise amplification capabilities.
This operational amplifier is widely utilized in industrial control systems, audio electronics, laboratory instrumentation, and automated machinery.
The input offset current for this operational amplifier is 5 nA, which supports its precision in signal amplification.
It belongs to the TL064 series, which is recognized for combining performance with low power consumption.
