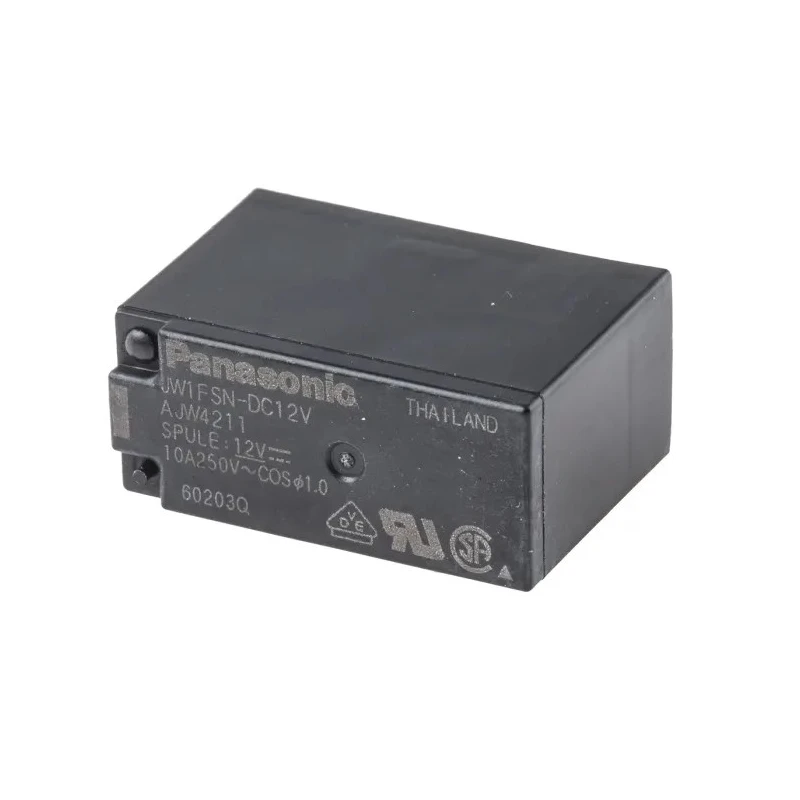

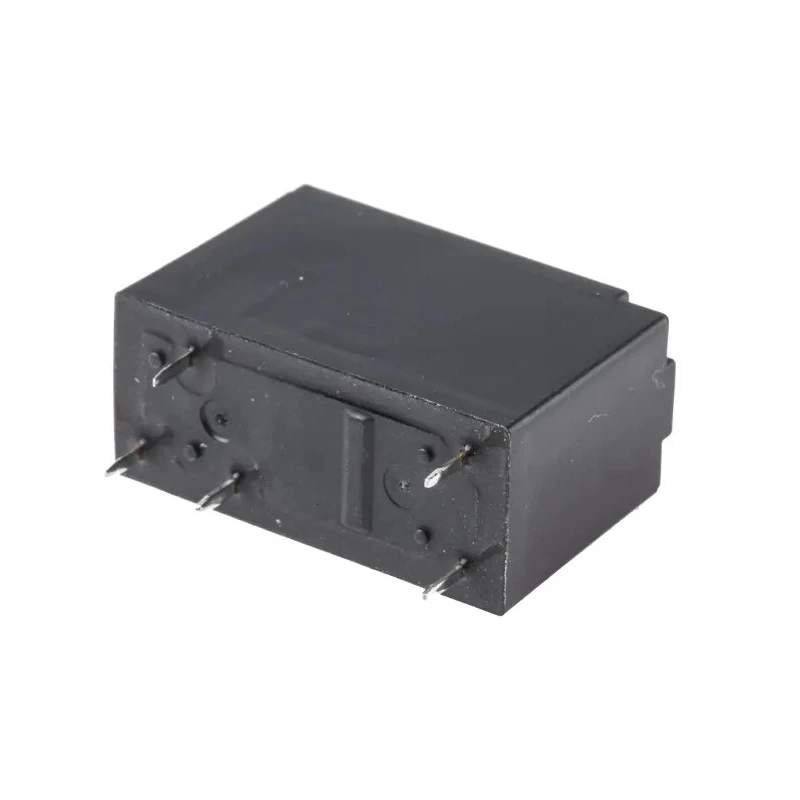

Panasonic PCB Power Relay 12V DC Coil 3.5mA Switching Current SPDT JW1FSN-DC12V
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Panasonic |
| Height | 20mm |
| Length | 28.6mm |
| Model | JW1FSN-DC12V |
| Width | 12.8mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | JW |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 3.5mA |
| Terminal type | Through Hole |
| Standards/Approvals | CE, RoHS, VDE, UL, TUV, IEC |
| Coil Resistance | 270Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 230V ac |
| Coil Power | 4kW |
Key Features
- This relay has a coil voltage of 12V DC suitable for PCB mounting applications.
- It supports switching currents of 3.5mA and switching AC voltage up to 230V AC.
- The contact configuration is Single Pole Double Throw (SPDT) with silver alloy contacts for reliability.
- Coil resistance is specified at 270Ω with coil power rated at 4kW.
- Compact dimensions of 28.6 mm length, 12.8 mm width, and 20 mm height ensure easy PCB integration.
- Operational temperature range from -40°C to 60°C ensures wide environmental usability.
- The relay offers high surge withstand voltage of 10,000V between contacts and coil.
- Sealed construction protects against dust and moisture for longevity in industrial uses.
Product Description
Panasonic JW1FSN-DC12V is a compact PCB mount power relay designed for reliable switching in industrial, commercial, and home appliance applications. Featuring a 12V DC coil and a low switching current rating of 3.5mA, this Single Pole Double Throw (SPDT) relay supports switching AC voltage up to 230V AC. The relay's silver alloy contacts ensure durable and stable electrical connections.
Its sealed construction protects internal components from dust and moisture, enhancing long-term dependability. Measuring 28.6 mm in length, 12.8 mm in width, and 20 mm in height, it fits standard PCB footprints with through-hole terminals for straightforward mounting.
Designed for environments ranging from -40°C to 60°C, it withstands challenging conditions, making it suitable for a wide range of industrial equipment and office machines. The coil resistance is 270Ω with a rated coil power of 4kW, providing efficient electromagnetic operation.
The JW series relay is known for high surge withstand capability with 10,000V voltage endurance between contacts and coil, ensuring robustness in transient environments. It complies with stringent global standards including CE, RoHS, VDE, UL, TUV, and IEC certifications, aligning with international quality measures.
This power relay is specifically designed for PCB mounting using through-hole technology. Applications include use in industrial control systems, automation equipment, home appliance controls, and office machinery. Its long electrical life and robust design offer stable performance in monitoring and switching circuits.
The silver alloy contact material enhances conductivity while resisting wear. Thailand is the country of origin for this Panasonic JW1FSN-DC12V relay.
For users requiring a reliable, compact, and safe power relay with precise coil and switching characteristics, the Panasonic JW1FSN-DC12V is an excellent choice. Explore more from the Power Relay category on EnvMart for comprehensive solutions tailored to your industry needs.
