| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1.3mm |
| Length | 3.1mm |
| Model | MUN2213T1G |
| Width | 1.7mm |
| Mount Type | Surface |
| Series | MUN2213 |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-346 (SC-59) |
| Pin Count | 3 |
| Maximum Collector Emitter Voltage Vceo | 50V |
| Minimum DC Current Gain hFE | 80 |
| Transistor Polarity | NPN |
| Maximum Collector Base Voltage VCBO | 50V |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 338mW |
| Transistor Configuration | Single |

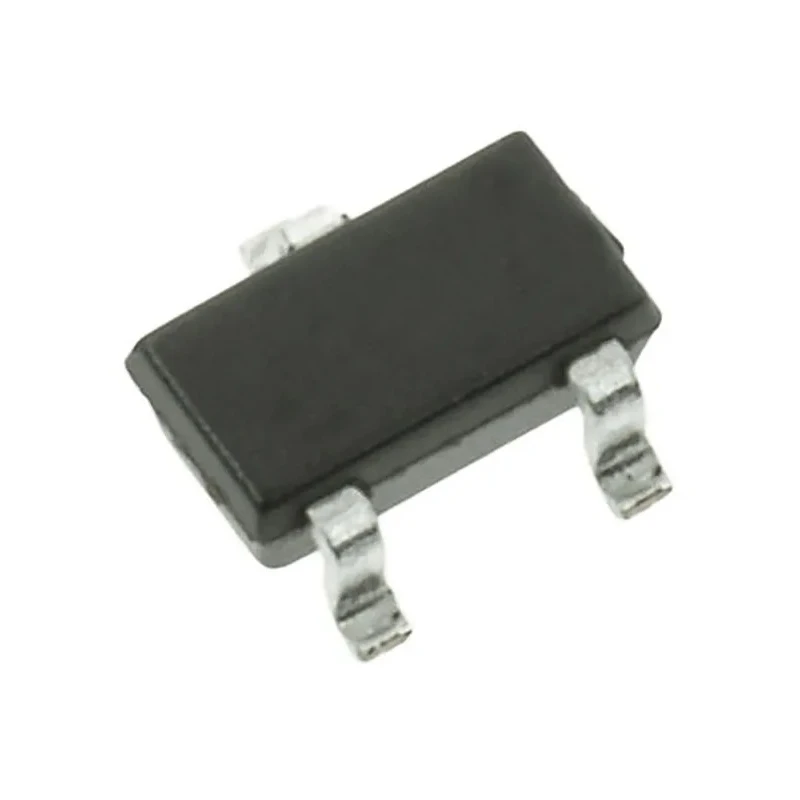

onsemi MUN2213T1G is a digital transistor with integrated resistors designed for versatile digital and switching applications. Encased in a compact SOT-346 (SC-59) 3-pin surface mount package, this NPN transistor offers a maximum collector-emitter voltage of 50 V and a minimum DC current gain of 80. It supports continuous operation at temperatures up to 150°C, making it suitable for a variety of industrial and automotive environments.
The device features a single transistor configuration with integrated bias resistors allowing direct drive from digital sources without the need for external resistor circuitry. This simplifies PCB design and improves reliability in digital switching and amplification circuits.
With a maximum power dissipation of 338 mW, the MUN2213T1G can handle moderate power requirements commonly encountered in signal processing, motor drivers, and switching regulator circuits. Its small footprint and surface mount package make it ideal for compact and high-density electronic assemblies.
These transistors comply with the AEC-Q101 automotive standard, ensuring reliability and quality for automotive applications requiring rugged components. Integrated series input or potential divider resistors for direct digital driving.
Compact SOT-346 surface mount package dimensions: length 3.1 mm, width 1.7 mm, height 1.3 mm. High gain and low voltage operation enable usage in precision switching circuits. Ideal for industrial, automotive, and consumer electronics requiring durable transistors.
Robust operation over a wide temperature range from ambient to 150°C.
This Digital Transistor by onsemi is suited for use in industrial automation, control circuitry, automotive electronics, and other semiconductor-based electronic assemblies. It supports efficient signal switching with reduced component count.
