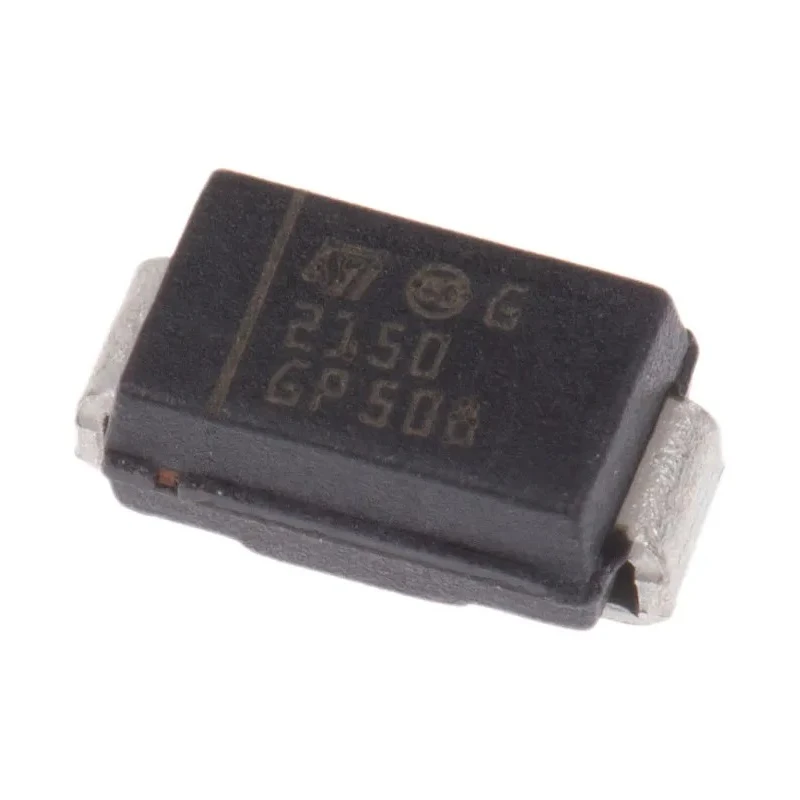

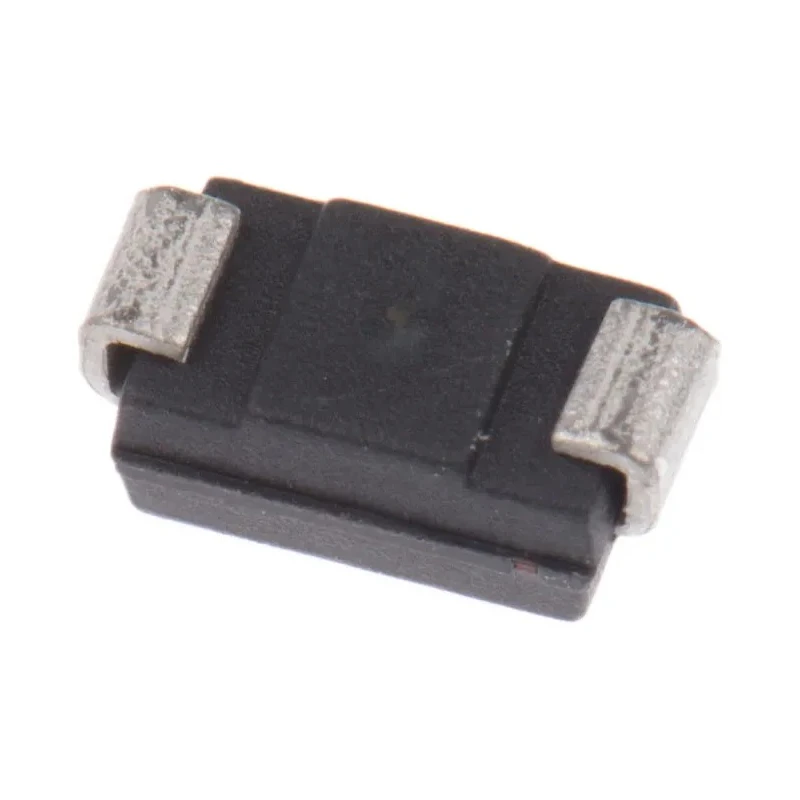

STMicroelectronics 150 V 2 A Surface Mount Schottky Diode 2-Pin DO-214AC STPS2150A

STMicroelectronics STPS2150A is a Schottky barrier diode designed for surface mount applications with a DO-214AC package. It supports a continuous forward current of 2 amperes and a peak reverse voltage rating of 150 volts, making it suitable for power supply circuits and rectification in a variety of electronic devices.

The diode features low forward voltage drop of 0.62 volts, which contributes to higher efficiency and less heat generation in power conversion processes. With operating temperatures from -65°C to 175°C, this diode performs reliably in harsh environmental conditions.

Its compact package dimensions (4.6 mm length, 2.95 mm width, and 2.03 mm height) allow space-saving layouts on printed circuit boards and efficient assembly. The device has low leakage current (1.5 μA) and can withstand high peak surge currents up to 75 A, ensuring robustness under transient stress.

Ideal for use in industrial electronics, power supplies, and other semiconductor applications requiring fast switching speed, low forward voltage, and efficient performance. The single diode with 2-pin configuration simplifies integration in various circuit designs.

Surface mount device in DO-214AC package. 2 A continuous forward current capability. 150 V peak reverse repetitive voltage rating. Low forward voltage drop of 0.62 V for efficiency. Wide operating temperature range (-65°C to 175°C).

Compact physical dimensions suitable for dense PCB layouts. Low leakage current and high surge current tolerance. Schottky Diode topology for fast switching.

This product is suited for industrial, power electronics, and semiconductor manufacturing use cases. STMicroelectronics' quality and reliability provide assurance for designers and engineers.
