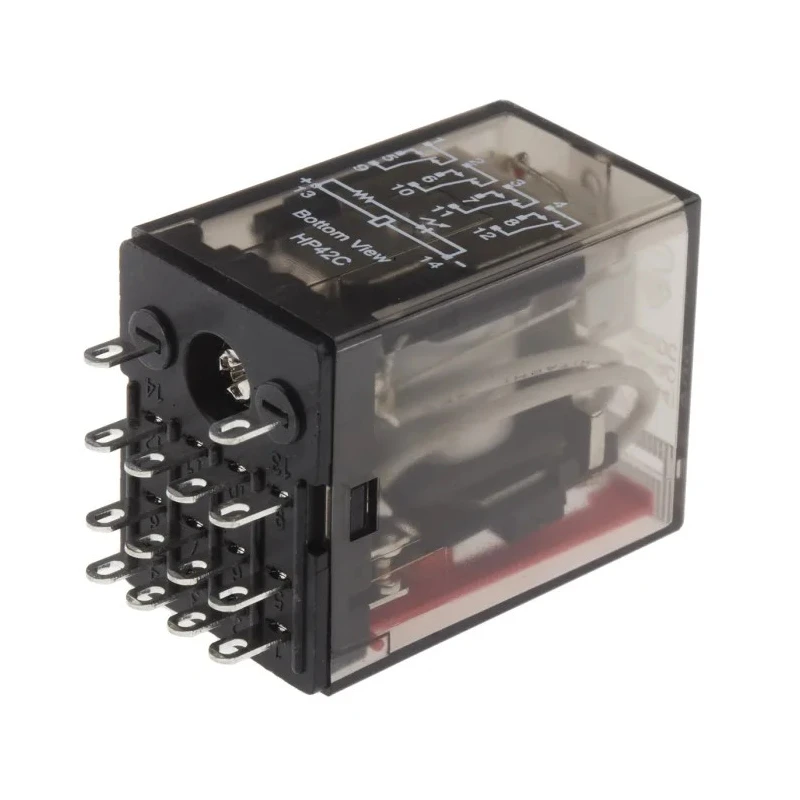

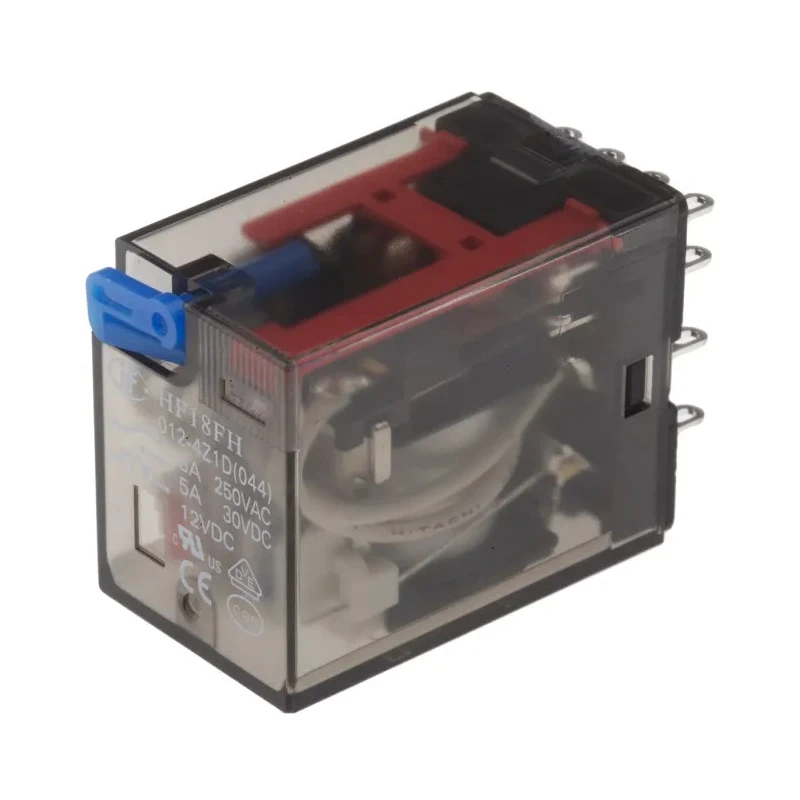

Hongfa Europe GMBH Chassis Power Relay, 12V DC Coil, 5A Switching Current, 4PDT Contact Configuration HF18FH0124Z1D
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 36mm |
| Length | 28mm |
| Model | HF18FH0124Z1D |
| Width | 21.5mm |
| Mount Type | Chassis |
| Contact Material | Silver Alloy |
| Series | HF18FH |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 4PDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 5A |
| Terminal type | Plug-In |
| Contact Resistance | 100mΩ |
| Standards/Approvals | CQC, cULus |
| Coil Resistance | 160Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V |
| Coil Power | 1.1W |
| Switching Power | 150W |
Key Features
- This power relay features a 4PDT contact configuration with a 5A switching current capacity.
- The relay is designed for chassis mounting and uses plug-in terminals for easy installation.
- Rated switching voltages include 30V DC and 250V AC, supporting diverse circuit requirements.
- Operating temperature ranges from -40°C minimum to 70°C maximum ensuring durability in harsh environments.
- Constructed with silver alloy contacts with low contact resistance of 100mΩ for effective conductivity.
- The coil resistance is 160Ω with a coil power consumption of 1.1W, optimizing energy efficiency.
- The compact relay dimensions are 28mm length, 21.5mm width, and 36mm height, saving installation space.
- Compliant with CQC and cULus standards, guaranteeing quality and safety compliance.
Product Description
Hongfa Europe GMBH HF18FH0124Z1D Chassis Power Relay is engineered for robust switching applications in industrial and automation environments. Featuring a 12V DC coil, this relay provides a dependable 5A switching current with a 4PDT contact configuration ideal for controlling multiple circuits simultaneously.
The chassis mount design with plug-in terminals enables easy installation and maintenance. The relay supports switching voltages up to 30V DC and 250V AC, making it versatile for a variety of electrical systems.
Designed to operate reliably within a temperature range from -40°C to 70°C, it is suitable for demanding conditions. High-quality silver alloy contacts ensure low contact resistance at 100mΩ enhancing conductivity and longevity.
With a coil resistance of 160Ω and coil power of 1.1W, the relay maintains energy-efficient operation without compromising performance. Measuring 28mm by 21.5mm by 36mm, the relay is compact, facilitating integration into space-constrained installations.
It complies with international safety and quality standards including CQC and cULus certifications, assuring safety and durability in industrial and commercial applications.
This HF18FH series miniature intermediate power relay is suitable for industrial automation, manufacturing controls, HVAC systems, and electrical equipment requiring reliable switching.
The power relay design enables switching multiple contacts simultaneously for complex control circuits. Approved and certified for safety, providing peace of mind in application deployment. Ideal for use in control panels, automation modules, and other industrial power switching needs.
Hongfa Europe GMBH represents a trusted brand with proven reliability in power relays and related components. Discover a wide range of Power Relays and related components at EnvMart to support your project requirements with trusted quality and performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current capacity of 5A.
It features a 4PDT (four pole double throw) contact configuration.
The relay supports switching voltages of up to 30V DC and 250V AC.
It operates with a coil voltage of 12V DC and has a coil power consumption of 1.1W.
The operating temperature range is from -40°C to 70°C.
It uses plug-in terminals for easy installation.
The dimensions are 28mm in length, 21.5mm in width, and 36mm in height.
The contacts are constructed from silver alloy, ensuring low contact resistance.
The contact resistance is rated at 100mΩ.
It complies with CQC and cULus standards, ensuring quality and safety.
The coil resistance is 160Ω.
This relay is suitable for industrial automation, manufacturing controls, HVAC systems, and other electrical equipment requiring reliable switching.
