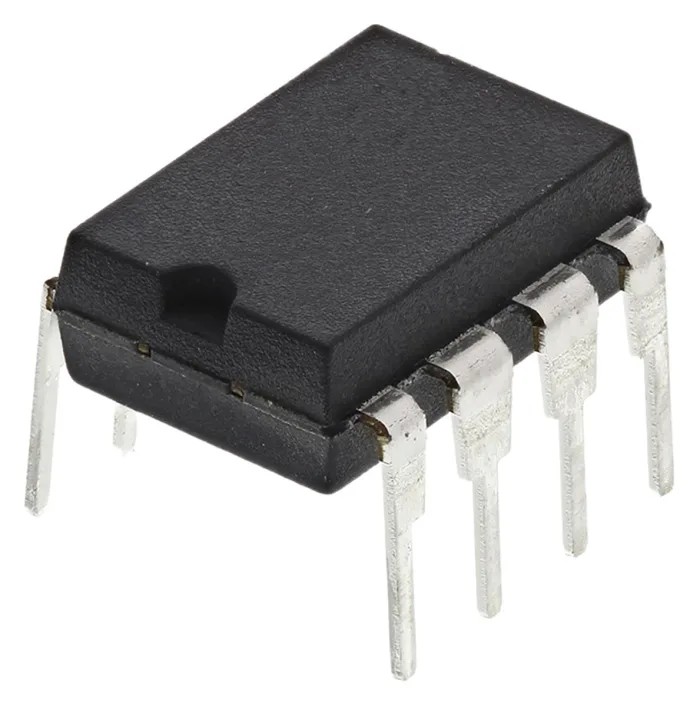

Renesas Electronics Operational Amplifier 3.7 MHz 8-Pin 36V PDIP CA3140EZ

Renesas Electronics CA3140EZ is a high-performance operational amplifier featuring a gain bandwidth product of 3.7 MHz, encapsulated in an 8-pin Plastic Dual Inline Package (PDIP) designed for through-hole mounting. Operating at supply voltages ranging from 5 V to 36 V, it is suitable for a wide variety of analog signal processing applications requiring high precision and stability.

The device utilizes a BiMOS architecture combining MOSFET input and bipolar output stages to provide extremely high input impedance and very low input bias currents, measured at 50 pA, and minimal offset currents of 0.1 pA. Input offset voltage is typically 15 mV, making it ideal for accurate analog amplification tasks.

With a slew rate of 7 V/μs, the CA3140EZ supports fast changing signals and is capable of driving output currents of 10 mA, enhancing its utility in various interface circuits and active filters. The amplifier is designed to operate reliably in extreme temperature conditions from -55°C to 125°C, making it appropriate for industrial and automotive applications not requiring automotive certification.

The compact physical dimensions of 10.16 mm in length, 7.11 mm in width, and 4.95 mm in height minimize board space usage. The product is RoHS compliant, ensuring environmental safety and compliance with international regulations.

This operational amplifier is commonly employed in industrial control systems, instrumentation, telecommunications equipment, and audio circuits where precision analog amplification is essential. It supports designers working on instrumentation amplifiers, active filters, and analog signal conditioning modules.

Through hole mount with plastic dual in-line package design. Single channel operation with 8 pins for compact integration. High gain bandwidth product of 3.7 MHz appropriate for precision applications. Wide supply voltage operation between 5 V and 36 V for versatile system use.

Low input bias and offset currents contribute to minimal signal distortion. Fast slew rate supports dynamic signal processing. Wide temperature operating range suitable for harsh environments. Compact package dimensions save board space.

RoHS compliance ensures environmental friendliness. Explore the Electronics & Electricals catalog at EnvMart for a broad range of Operational Amplifiers and related semiconductor devices for your industrial and laboratory needs.
