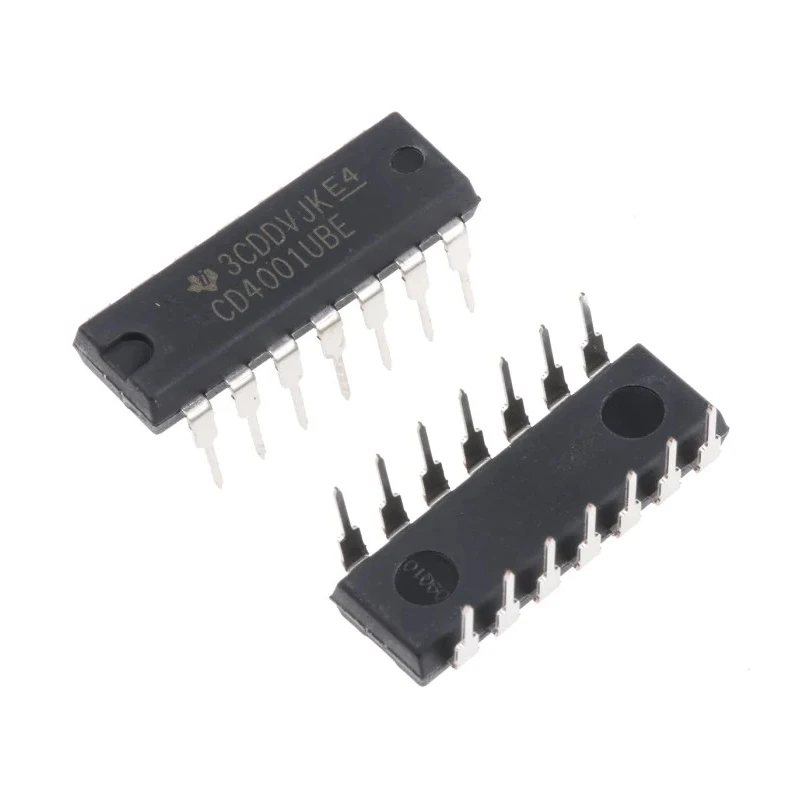

Texas Instruments 4 2-Input NOR Logic Gate, 14-Pin PDIP CD4001UBE

Texas Instruments CD4001UBE 4 2-Input NOR Logic Gate in a 14-Pin PDIP package is a versatile CMOS logic IC designed for a wide range of semiconductor applications. It integrates four independent 2-input NOR gates suitable for logic functions in digital electronics, industrial automation, control systems, and embedded systems.

Operating with a supply voltage between 3 volts and 18 volts, this logic IC offers flexibility across low voltage and higher voltage designs. The device maintains stable performance over a broad temperature range from -55 degrees Celsius to 125 degrees Celsius, making it reliable in industrial, laboratory, and environmental conditions.

This Logic Gate IC features a maximum propagation delay of 80 nanoseconds at given load conditions, facilitating efficient and responsive signal processing in timing-critical applications. The 14-pin PDIP package supports through-hole mounting, simplifying PCB assembly and prototyping. The CMOS input type ensures low power consumption without sacrificing performance, and the standard 4000 logic family compatibility allows easy integration into existing circuit designs.

Four independent 2-input NOR gates integrated into a compact PDIP package. Wide operating voltage range from 3V to 18V. Operating temperature range from -55°C to 125°C for industrial grade robustness. Maximum propagation delay time of 80ns ensuring quick signal response.

CMOS input type for low power consumption. High and low-level output currents of -4.2mA and 4.2mA respectively. Standard 4000 series logic family ensuring design compatibility. Through hole mounting style with 14-pin configuration for standard PCB use.

This product is ideal for use in semiconductor design, manufacturing, digital logic circuits, electronic prototyping, industrial equipment, laboratory instrumentation, and educational purposes. It combines high reliability with ease of use in a widely accepted standard footprint.

Explore more Texas Instruments logic products on EnvMart to find compatible components for your next project.
