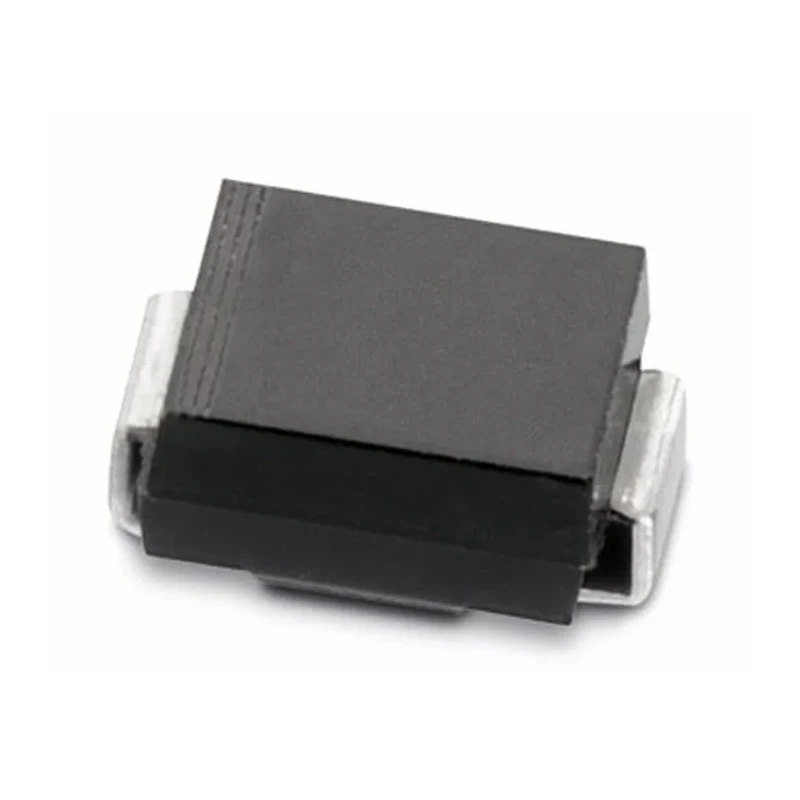

Wurth Elektronik 1-Element Uni-Directional TVS Diode 600 W, 2-Pin DO-214 824520281

Wurth Elektronik 824520281 1-Element Uni-Directional TVS Diode is a robust transient voltage suppressor designed to protect electronic circuits from voltage spikes up to 600 W peak pulse power dissipation. It is ideal for use in industrial, commercial, and automotive electronic systems requiring surface mount protection with high reliability.

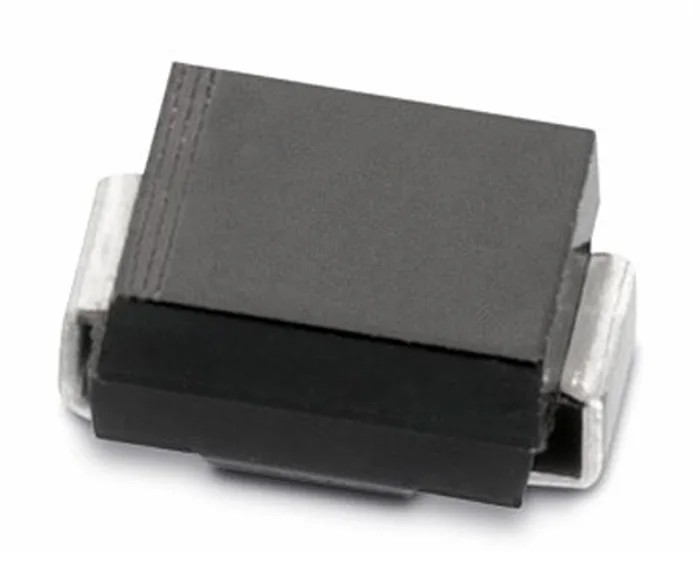

This TVS diode features a uni-directional single diode element configuration packed in a compact DO-214 package, making it suitable for printed circuit boards with limited space. The device sustains operation in extreme temperature environments ranging from -65°C to 150°C, ensuring stability and long-term performance.

Its electrical characteristics include a minimum breakdown voltage of 32.75 V, clamping voltage of 45.4 V, and the capability to handle peak pulse currents of 13.3 A, providing fast and efficient suppression of voltage transients. The glass passivated junction enhances the diode's durability and speed of response.

With pin count of 2 and surface mount mount type, this diode eases automated assembly processes while improving production efficiency. The minimal reverse leakage current of 1 µA contributes to lower system power consumption.

The diode features a Uni-Directional configuration with a single element per chip. Peak pulse power dissipation rating of 600 W supports high transient energy absorption. Compact DO-214 low profile packaging with 2-pin surface mount form factor.

Wide operating temperature range from -65°C to 150°C ensures reliable operation. Minimum breakdown voltage of 32.75 V and clamping voltage of 45.4 V protects sensitive components. Maximum peak pulse current rating of 13.3 A and test current of 1 mA.

Dimensions of 4.32 mm length, 3.62 mm width, and 2.3 mm height allow for space saving PCB designs. Maximum reverse leakage current is 1 µA, minimizing power loss.

This product is manufactured in China and conforms to standard industrial requirements but does not carry special certifications or automotive standard approvals. It is well suited for transient over-voltage protection in electronic control units, power supplies, and communication devices used in industrial automation, laboratory equipment, and general electronic circuitry.
