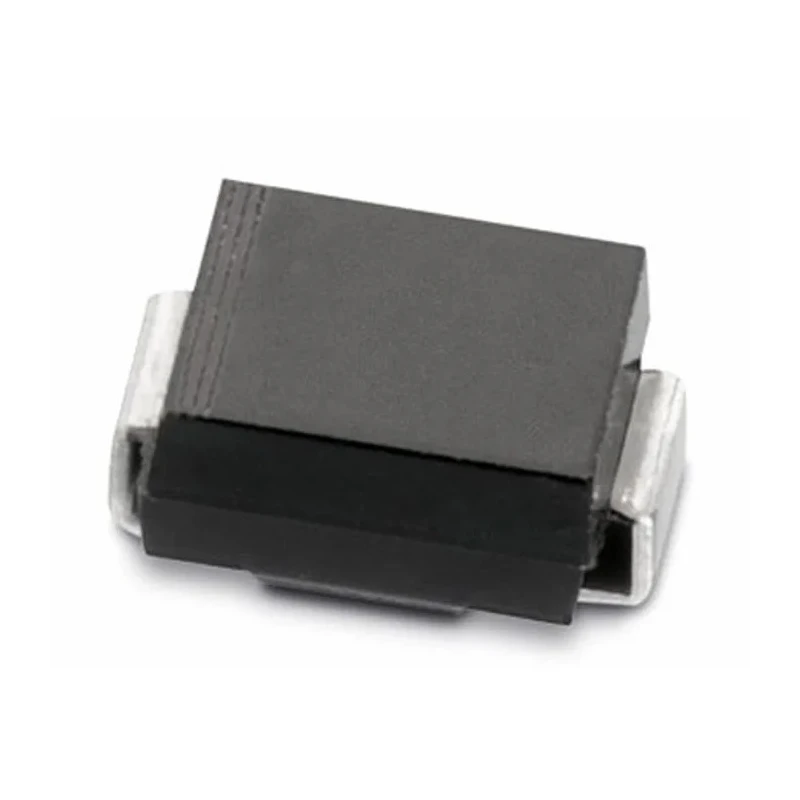

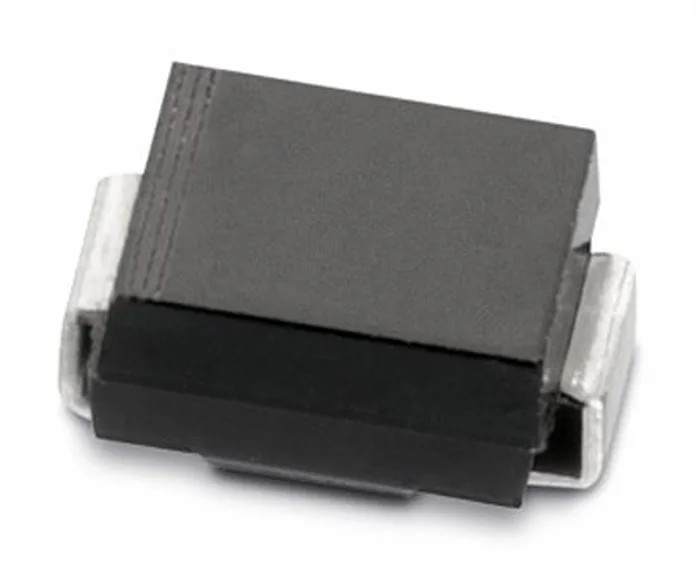

Wurth Elektronik 1-Element Bi-Directional TVS Diode 600 W, 2-Pin DO-214 824521500

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik 1-Element Bi-Directional TVS Diode 600 W, 2-Pin DO-214 824521500

Name: Wurth Elektronik 1-Element Bi-Directional TVS Diode 600 W, 2-Pin DO-214 824521500
Brand: Wurth Elektronik
SKU: 389495
Price: 0.31 USD
Availability: InStock



Category TVS Diode Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Brand	Wurth Elektronik
Height	2.3mm
Length	4.32mm
Width	3.62mm
Mount Type	Surface
Series	WE-TVSP
Maximum Operating Temperature	150°C
Package Type	DO-214
Minimum Operating Temperature	-65°C
Pin Count	2
Number of Elements per Chip	1
Clamping Voltage VC	9.2V
Diode Configuration	Single
Direction Type	Bi-Directional
Minimum Breakdown Voltage Vbr	6.7V
Peak Pulse Power Dissipation Pppm	600W
Test Current It	10mA
Maximum Peak Pulse Current Ippm	65.3A
Maximum Reverse Leakage Current	1.6mA

Key Features

This diode features a single element bi-directional configuration.
The surface mount DO-214 package supports efficient PCB assembly.
It has a minimum breakdown voltage of 6.7 V and a clamping voltage of 9.2 V.
The device operates within a temperature range of -65°C to 150°C ensuring reliability.
Designed for fast response time with glass passivated junction technology.
Supports a maximum peak pulse current of 65.3 A for transient voltage suppression.
Its compact dimensions (4.32 mm length, 3.62 mm width, 2.3 mm height) facilitate use in space-constrained applications.
Maximum reverse leakage current is low at 1.6 mA, enhancing efficiency.

Product Description

Wurth Elektronik model 824521500 is a 1-element bi-directional TVS Diode rated for 600 W peak pulse power dissipation, provided in a surface mount DO-214 package with 2 pins. It features a glass passivated junction for fast transient voltage suppression, suitable for protecting sensitive electronic components against voltage spikes.

The device operates with a minimum breakdown voltage of 6.7 V and clamps at 9.2 V, making it ideal for various power and signal line protection applications in industrial, automotive, telecommunications, and consumer electronics fields.

The diode performs reliably across a wide operating temperature range from -65°C to 150°C and supports a maximum peak pulse current of 65.3 A. Its compact size (4.32 mm length × 3.62 mm width × 2.3 mm height) and low reverse leakage current of 1.6 mA enable efficient integration into modern PCB layouts, particularly in low-profile designs.

Wurth Elektronik’s WE-TVSP series offers bi-directional protection solutions with robust ratings and fast response times, making this diode ideal for transient voltage suppression in various demanding environments.

This diode features a single element bi-directional configuration. Surface mount DO-214 package for automated production. Minimum breakdown voltage of 6.7 V and clamping voltage of 9.2 V. Operational temperature from -65°C to 150°C.

Maximum peak pulse current of 65.3 A for high transient events. Compact dimensions enable space-saving PCB designs. Glass passivated junction ensures fast response. Low maximum reverse leakage current of 1.6 mA. Series WE-TVSP supports a broad voltage range up to 100 V dc.

This model is manufactured in China and is compliant with industrial semiconductor standards. It is ideal for applications in industrial electronics, telecommunications equipment, consumer devices, and automotive systems requiring robust transient voltage protection.
