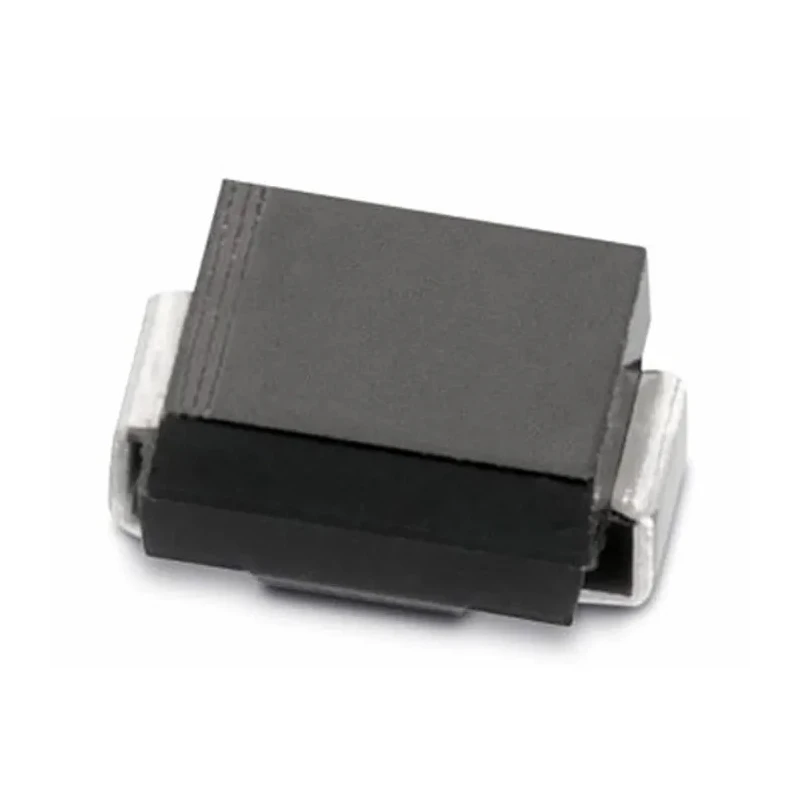

Wurth Elektronik 1-Element Bi-Directional TVS Diode 2-Pin DO-214 Surface Mount, 11.7 V Breakdown, 400 W Peak Pulse 824501101

Wurth Elektronik 824501101 is a high-performance 1-element bi-directional Transient Voltage Suppressor (TVS) diode engineered to protect sensitive electronic circuits from voltage transients and surges. Featuring a robust peak pulse power dissipation of 400 W and a minimum breakdown voltage of 11.7 V, this device provides superior surge protection in a compact surface mount DO-214 2-pin package.

Designed with a glass passivated junction and fast response time, it safeguards electronic components against high voltage spikes generated by inductive loads, switching operations, or electrostatic discharge events. The Wurth Elektronik TVS diode maintains stable operation over a wide temperature range from -65°C to 150°C, making it suitable for demanding industrial, automotive, and consumer electronics applications.

The compact dimensions of 4.24 mm length, 2.67 mm width, and 2.14 mm height allow for easy integration into high-density printed circuit boards. It accommodates a maximum peak pulse current of 23.5 A with a clamping voltage of 17 V, ensuring effective transient voltage suppression and circuit protection.

This diode belongs to the WE-TVSP series, known for high reliability and robust construction. Its low maximum reverse leakage current of 10μA minimizes steady-state losses. Surface mount assembly simplifies manufacturing processes and improves production efficiency.

Typical uses for the Wurth Elektronik 824501101 include protection in power supplies, telecommunications equipment, consumer electronics, automotive electronics, industrial control systems, and other environments prone to voltage surges. This diode contributes to extending device lifetime and preventing costly failures by eliminating voltage stress on components.

Single diode configuration with bi-directional protection. Peak pulse power dissipation of 400 W for energy-intensive surges. Operating temperature range from -65°C up to 150°C for harsh environments. Compact DO-214 surface mount package with 2 pins.

Minimum breakdown voltage 11.7 V with 17 V clamping voltage. Maximum peak pulse current rating of 23.5 A. Glass passivated junction and fast response for enhanced reliability. Low leakage current (10μA) reduces power losses.

Professionals seeking reliable transient voltage suppression for industrial, laboratory, manufacturing, telecommunications, commercial, and automotive use will find the Wurth Elektronik 824501101 model an optimal solution. Explore the comprehensive category of TVS Diodes on EnvMart for complementary components and surge protection devices.
