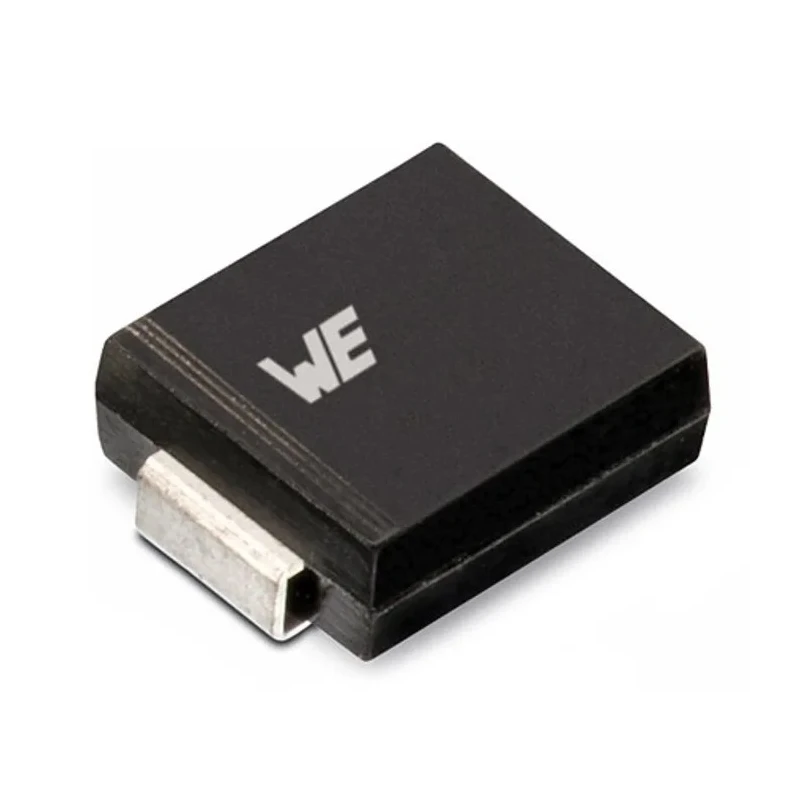

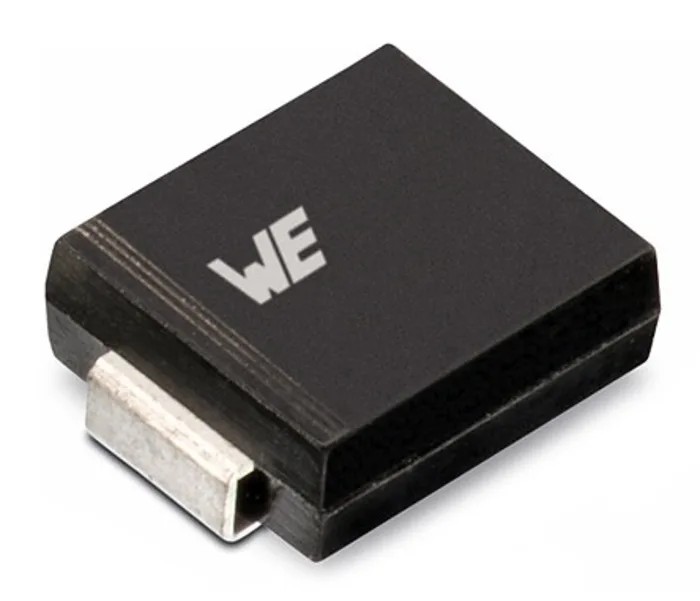

Wurth Elektronik 1-Element Bi-Directional TVS Diode 3 kW, 2-Pin Surface Mount DO-214 824551261

Wurth Elektronik 824551261 1-Element Bi-Directional TVS Diode delivers high transient voltage suppression with a peak pulse power rating of 3 kW and a 2-pin surface mount DO-214 package. Designed for industrial and electronic protective applications, this diode offers robust protection against voltage spikes and surges in sensitive circuits.

This TVS diode features a single element configuration operating bidirectionally, capable of withstanding a minimum breakdown voltage of 30.4 V and clamping voltage of 42.1 V, effectively safeguarding circuits from transient events. It supports a maximum peak pulse current of 71.3 A providing excellent surge handling characteristics.

The device maintains reliable operation over a wide temperature range from -65°C up to 150°C, suitable for harsh and varying environmental conditions commonly encountered in automotive electronics, industrial control systems, and telecommunications.

The compact DO-214 surface mount package allows easy integration into automated manufacturing processes and supports space-efficient PCB designs. It exhibits a low maximum reverse leakage current of 2 μA, contributing to energy efficiency and reducing thermal stress during operation.

Key applications include use in power connectors, semiconductor devices, discrete electronics, and other circuitry where transient voltage suppression is critical to product reliability and safety. This diode's glass passivated junction ensures fast response times mitigating transient surges effectively.

Single diode configuration designed for bi-directional voltage suppression. Minimum breakdown voltage of 30.4 V ensures reliable protection. Clamping voltage rated at 42.1 V during transient events. Peak pulse current up to 71.3 A for high surge tolerance.

Operates between -65°C and 150°C for wide temperature applications. Compact dimensions of 6.86 mm length, 5.9 mm width, and 2.34 mm height. Surface mount package type suitable for automated PCB assembly. Glass passivated junction providing fast response during voltage spikes.

Low maximum reverse leakage current of 2 μA for efficient performance. Manufactured in China, compliant with RoHS standards.

Wurth Elektronik continues to provide high quality electronic components widely used in industrial, automotive, telecommunications, and manufacturing sectors. This model 824551261 TVS Diode embodies reliability and performance for transient voltage suppression needs.
