Wurth Elektronik 1-Element Bi-Directional TVS Diode, 3 kW, 2-Pin DO-214 824551301

Free Delivery in India | Lowest Global Shipping Charges

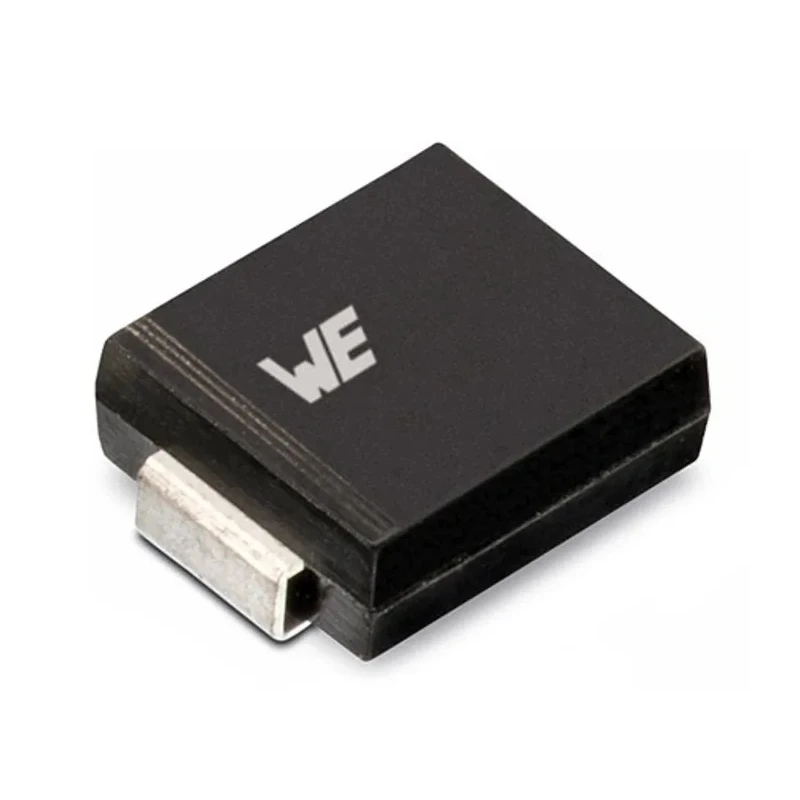

Wurth Elektronik 1-Element Bi-Directional TVS Diode, 3 kW, 2-Pin DO-214 824551301

Name: Wurth Elektronik 1-Element Bi-Directional TVS Diode, 3 kW, 2-Pin DO-214 824551301
Brand: Wurth Elektronik
SKU: 389475
Price: 1.66 USD
Availability: InStock



Category TVS Diode Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Brand	Wurth Elektronik
Height	2.34mm
Length	6.86mm
Width	5.9mm
Mount Type	Surface
Series	WE-TVSP
Maximum Operating Temperature	150°C
Package Type	DO-214
Minimum Operating Temperature	-65°C
Pin Count	2
Number of Elements per Chip	1
Clamping Voltage VC	48.4V
Diode Configuration	Single
Direction Type	Bi-Directional
Minimum Breakdown Voltage Vbr	35.05V
Peak Pulse Power Dissipation Pppm	3kW
Test Current It	1mA
Maximum Peak Pulse Current Ippm	62A
Maximum Reverse Leakage Current	2μA

Key Features

Single diode element with 35.05 V minimum breakdown voltage.
Bi-directional configuration ensures AC and DC transient suppression.
High peak pulse power dissipation rating of 3 kW.
Compact 2-pin DO-214 surface mount package facilitates space-efficient design.
Wide operating temperature range from -65°C to 150°C supports harsh environments.
Low reverse leakage current of 2 μA minimizes power loss.
Fast response time with glass passivated junction increases circuit reliability.
Maximum peak pulse current of 62 A safeguards electronics during surges.

Product Description

Wurth Elektronik 824551301 presents a high-performance 1-Element Bi-Directional TVS Diode designed for robust transient voltage suppression applications. Rated for 3 kW peak pulse power dissipation, this diode ensures protection against voltage spikes and surges in electronic circuits.

The device package is a compact surface mount 2-pin DO-214, facilitating efficient board space usage and reliable mounting. It features a glass passivated junction that provides a rapid response to transient events, enhancing circuit reliability and longevity.

Operating voltages start at a minimum breakdown voltage of 35.05 V, while the clamping voltage at peak conditions is 48.4 V. This diode supports a maximum peak pulse current of up to 62 A and maintains a low leakage current of 2 μA, minimizing power consumption during normal operation.

The 824551301 diode supports a broad operating temperature range, from cryogenic -65°C to high heat endurance at 150°C, suitable for demanding industrial and automotive environments. Its dimensions, 6.86 mm length, 5.9 mm width, and 2.34 mm height, allow effective use in compact electronic assemblies.

Single element design for precise control and fast protection. Bi-directional diode configuration for AC and DC transient suppression. High peak pulse power dissipation of 3 kW. Surface mount DO-214 package for space-saving electronic design.

Wide operating temperature range from -65°C to 150°C. Extremely low reverse leakage current of 2 μA. Reliable protection for industrial, automotive, electronics manufacturing, power supplies, and communication equipment.

This TVS diode is manufactured in China under Wurth Elektronik's rigorous quality standards. It is ideal for engineers and technicians looking for dependable transient voltage protection for sensitive electronics in demanding applications.
