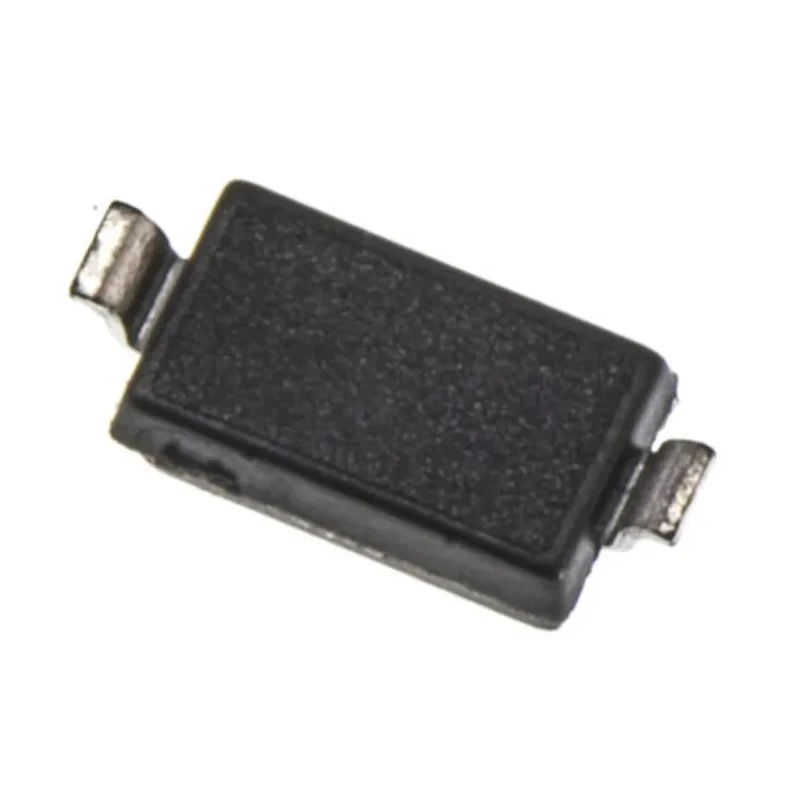

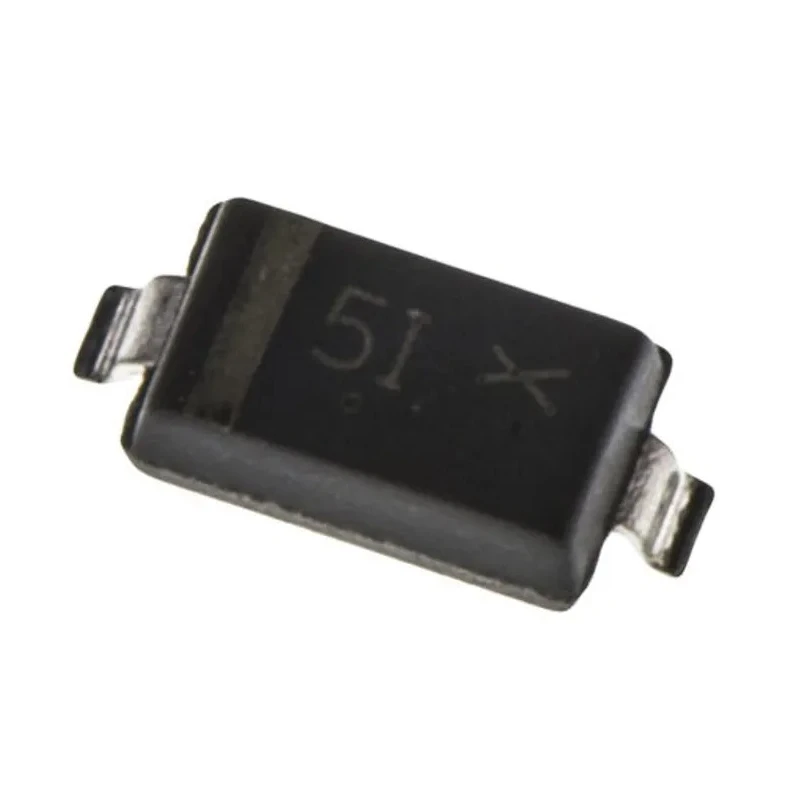

STMicroelectronics 100 V 2 A Schottky Barrier Diode Surface Mount DO-214AA Package STPS2H100UY

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics 100 V 2 A Schottky Barrier Diode Surface Mount DO-214AA Package STPS2H100UY

Name: STMicroelectronics 100 V 2 A Schottky Barrier Diode Surface Mount DO-214AA Package STPS2H100UY
Brand: STMicroelectronics
SKU: 388763
Price: 0.22 USD
Availability: InStock



Category Schottky Diode Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	2.45mm
Length	4.6mm
Model	STPS2H100UY
Width	3.95mm
Mount Type	Surface
Series	STPS2H100-Y
Maximum Operating Temperature	175°C
Package Type	DO-214AA
Minimum Operating Temperature	-40°C
Pin Count	2
Maximum Continuous Forward Current If	2A
Peak Reverse Repetitive Voltage Vrrm	100V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	1mA
Peak Non-Repetitive Forward Surge Current Ifsm	75A
Maximum Forward Voltage Vf	0.6V

Key Features

Designed for surface mount applications with a DO-214AA package type.
Maximum continuous forward current is 2 amperes for stable operation.
Peak reverse repetitive voltage rating of 100 volts ensures reliable blocking performance.
Low forward voltage drop of 0.6 volts for efficient rectification.
Operating temperature range from -40°C up to 175°C supports harsh environments.
Peak non-repetitive forward surge current capability up to 75 amperes.
Single diode configuration with 2 pin count suitable for power and electronic circuit protection.
No automotive certification, conforming to standard semiconductor diode requirements.

Product Description

STMicroelectronics STPS2H100UY is a high-quality Schottky barrier diode designed for surface mount applications. It features a DO-214AA package, supporting a maximum continuous forward current of 2 amperes and a peak reverse repetitive voltage of 100 volts.

This diode offers a low forward voltage drop of 0.6 volts, enabling high efficiency rectification in power supply circuits and other electronic devices. Its robust construction allows operation in temperatures ranging from -40°C to 175°C, making it suitable for industrial and commercial electronic applications requiring durability under varying environmental conditions.

The diode's peak non-repetitive forward surge current rating of 75 amperes ensures reliable performance during transient current events. Its compact size with dimensions of approximately 3.95 mm width, 4.6 mm length, and 2.45 mm height allows easy integration on PCB assemblies.

Ideal use cases include power rectification in power supplies, voltage clamping, and protection in electronic circuits within various industries such as industrial automation, automotive electronics (non-certified), telecommunications, and consumer electronics.

Designed for surface mount applications with a DO-214AA package type. Maximum continuous forward current is 2 amperes for stable operation. Peak reverse repetitive voltage of 100 volts ensures reliable blocking performance.

Low forward voltage drop of 0.6 volts for efficient rectification. Operating temperature range from -40°C to 175°C supports harsh environments. Peak non-repetitive surge current up to 75 amperes for transient reliability.

Compact physical dimensions allow for flexible PCB layouts. Single diode, 2-pin configuration for straightforward design implementation. Suitable for various electronics industrial and commercial applications. Explore a wide range of Schottky Diodes and other semiconductor components at EnvMart, featuring quality products from trusted brands like STMicroelectronics.
