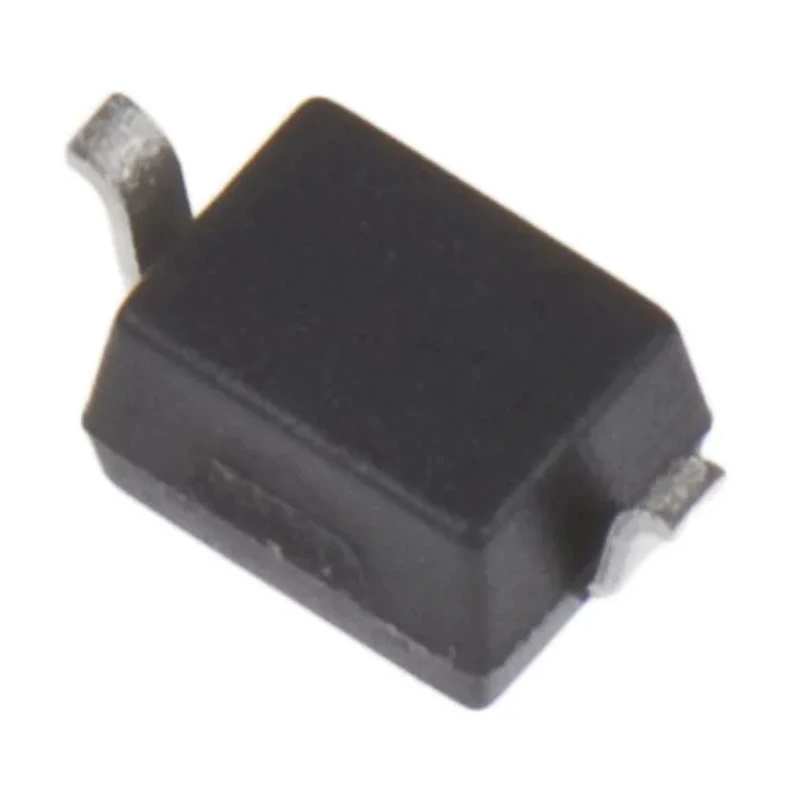

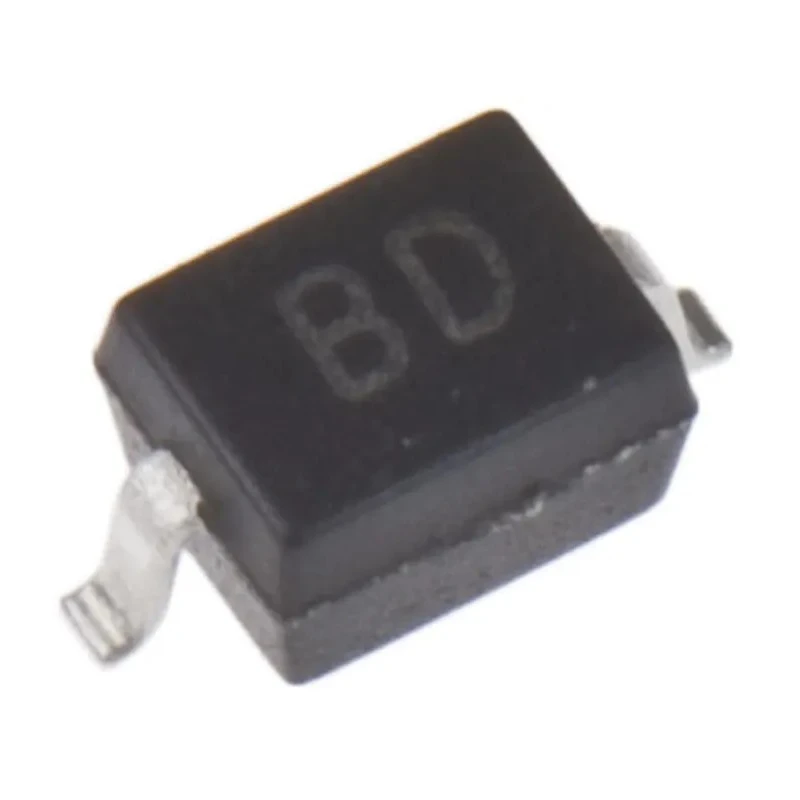

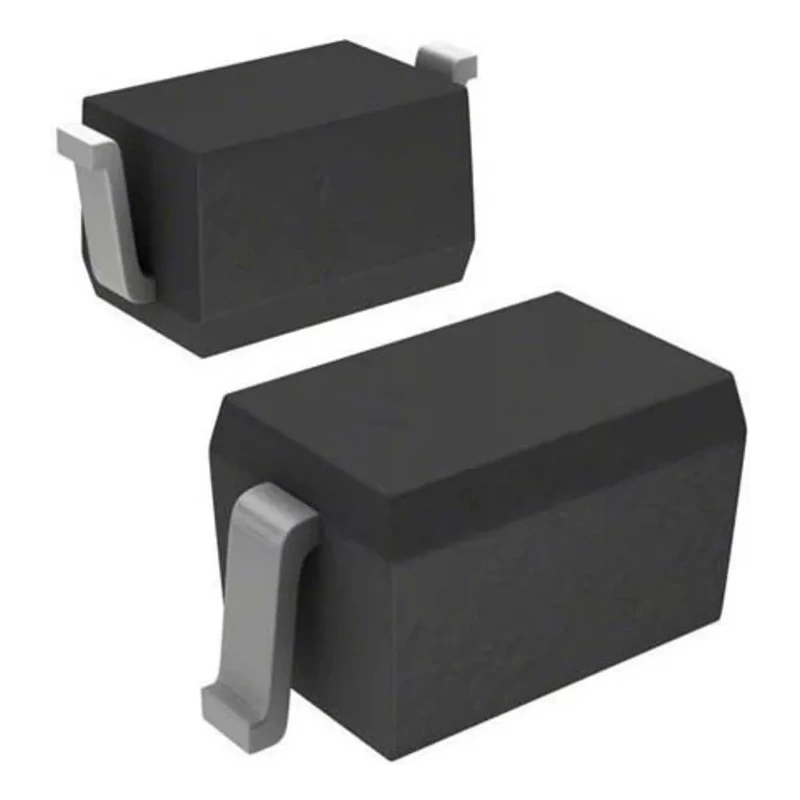

STMicroelectronics 40 V 350 mA Surface Mount Schottky Diode 2-Pin SOD-323 BAT48JFILM

STMicroelectronics BAT48JFILM is a high-efficiency Schottky diode designed for surface mount applications in electronic circuits. Featuring a compact 2-pin SOD-323 package, this diode supports a maximum continuous forward current of 350 mA and a peak reverse repetitive voltage of 40 V.

Its low forward voltage drop of 0.9 V enhances power efficiency, making it suitable for high-frequency rectification and switching applications. The diode can handle a peak non-repetitive forward surge current of 2 A, ensuring resilience against transient current spikes common in power circuits.

Designed to operate reliably within the temperature range of -40°C to 150°C, the BAT48JFILM is ideal for use in industrial, consumer electronics, automotive, and telecommunications devices.

The compact package dimensions (1.8 mm length, 1.45 mm width, and 1.16 mm height) facilitate high-density PCB designs, optimizing space utilization. Its low peak reverse current of 50 μA reduces leakage power loss, contributing to overall energy efficiency.

This single Schottky Diode from STMicroelectronics combines high power density and efficiency, making it a preferred choice for power rectification in DC/DC converters, power supplies, and freewheeling diode applications.

The diode features a surface mount package type SOD-323 suitable for compact circuit assemblies. Maximum continuous forward current is 350 mA, supporting reliable current handling. Peak reverse repetitive voltage rating of 40 V ensures robust reverse voltage endurance.

Forward voltage drop is low at a maximum of 0.9 V to optimize efficiency in power conversion. Peak non-repetitive forward surge current rating of 2 A enables tolerance to short transient currents. Operates over a wide temperature range from -40°C to 150°C for durability in harsh environments.

Compact physical dimensions with length 1.8 mm, width 1.45 mm, and height 1.16 mm allow space-saving PCB layouts. Peak reverse current is very low at 50 μA to minimize leakage losses. Single diode configuration provides straightforward rectification and switching functions.

Ideal for industrial and commercial electronics, this diode ensures high efficiency and reliability. Explore the wide range of STMicroelectronics semiconductors and related components on EnvMart for comprehensive electronic design solutions.
