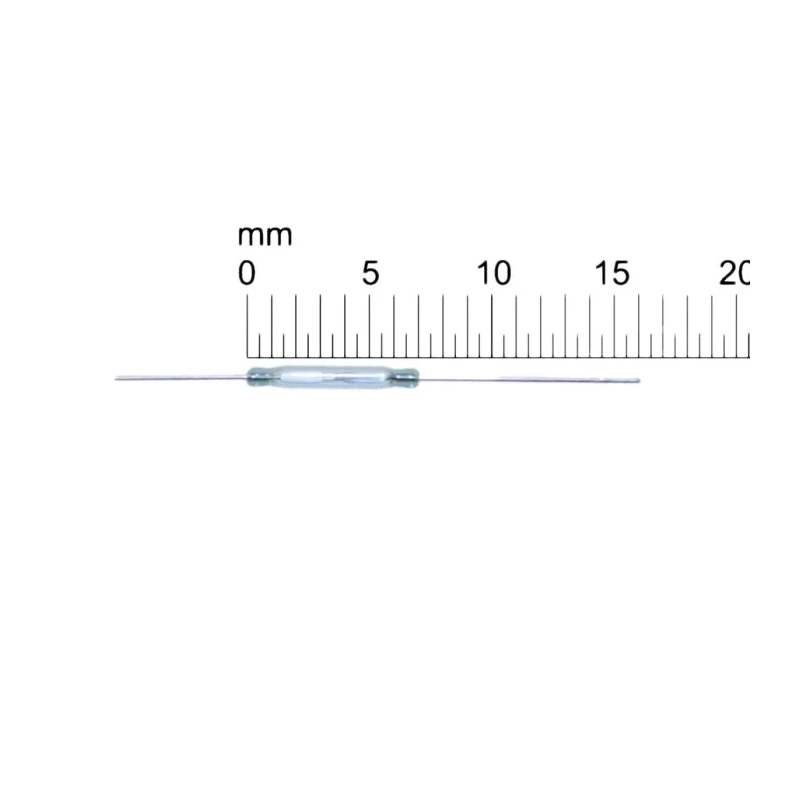

Assemtech SPST-NO PCB Reed Switch 500mA 170V RI-70

Free Delivery in India | Lowest Global Shipping Charges

Assemtech SPST-NO PCB Reed Switch 500mA 170V RI-70

Name: Assemtech SPST-NO PCB Reed Switch 500mA 170V RI-70
Brand: Assemtech
SKU: 387437
Price: 147.27 INR
Availability: InStock



Category Reed Switch Brand Assemtech Condition New

Specifications

Country of Origin	Netherlands
Brand	Assemtech
Length	7mm
Model	RI-70
Width	1.8mm
Mount Type	PCB
Contact Material	Ruthenium on Gold
Series	RI
Maximum Switching Current	500mA
Maximum Operating Temperature	125°C
Contact Configuration	SPST-NO
Minimum Operating Temperature	-55°C
Terminal type	Wire
Contact Resistance	150mΩ
Maximum Switching Power	10W
Standards/Approvals	ISO
Maximum Switching Voltage	170V
Maximum Release Time	0.04ms
Operating Time Including Bounce	0.15ms
AT Value Range	5 to 10 AT

Key Features

Features single pole single throw normally open contact configuration.
Maximum switching current of 500 milliamps and power rating of 10 watts.
Hermetically sealed in gas-filled glass for durability and protection.
Ruthenium on gold contact material ensures minimal contact resistance and corrosion resistance.
Compact dimensions of 7mm length and 1.8mm width suit PCB mounting.
Operates reliably from -55°C up to 125°C temperature range.
Wire terminal type for easy PCB integration and secure mount type.
Extremely fast maximum release and operate times of 0.04ms and 0.15ms respectively.

Product Description

Assemtech RI-70 SPST-NO PCB Reed Switch 500mA 170V is a precision electromechanical component designed for reliable switching applications in electronics and industrial automation sectors. This reed switch features a single pole single throw normally open contact configuration, sealed hermetically within a glass envelope filled with inert gas, ensuring long-lasting performance and resistance to environmental factors.

Its contact material of ruthenium on gold minimizes contact resistance to 150 milliohms and provides enhanced durability against corrosion and wear. The switch is capable of handling a maximum current of 500 mA and can switch power loads up to 10 watts at a maximum voltage of 170 volts, making it suitable for signal switching and low power control circuits.

The compact form factor measuring 7 mm in length and 1.8 mm in width makes it ideal for PCB mounting, with wire terminal type for secure connection and integration into various applications. It operates flawlessly in a wide temperature range from -55°C to 125°C, ensuring consistent performance in harsh industrial and commercial environments.

The mechanical life expectancy reaches up to 10^8 operations, providing exceptional reliability for long-term use. Fast operating times including a maximum release time of 0.04 milliseconds and an operating time including bounce of 0.15 milliseconds, allow for precise control and quick response in automation systems.

The RI-70 series complies with ISO quality standards and is manufactured in the Netherlands, reflecting high-quality construction and rigorous testing. Features single pole single throw normally open contact configuration.

Maximum switching current of 500 milliamps and power rating of 10 watts. Hermetically sealed to protect contacts and extend service life. Ruthenium on gold contacts provide low resistance and high reliability. Compact size for PCB mounting with wire terminal type.

Wide operating temperature range from -55°C to 125°C. Fast switching times with maximum release time of 0.04ms. Highly durable with mechanical life up to 100 million operations.

This Reed Switch is ideal for use in electrical, automation, and industrial equipment such as sensors, relays, and control circuits in laboratory and manufacturing settings. Explore more precision switching components in the Electronics & Electricals category on EnvMart.
