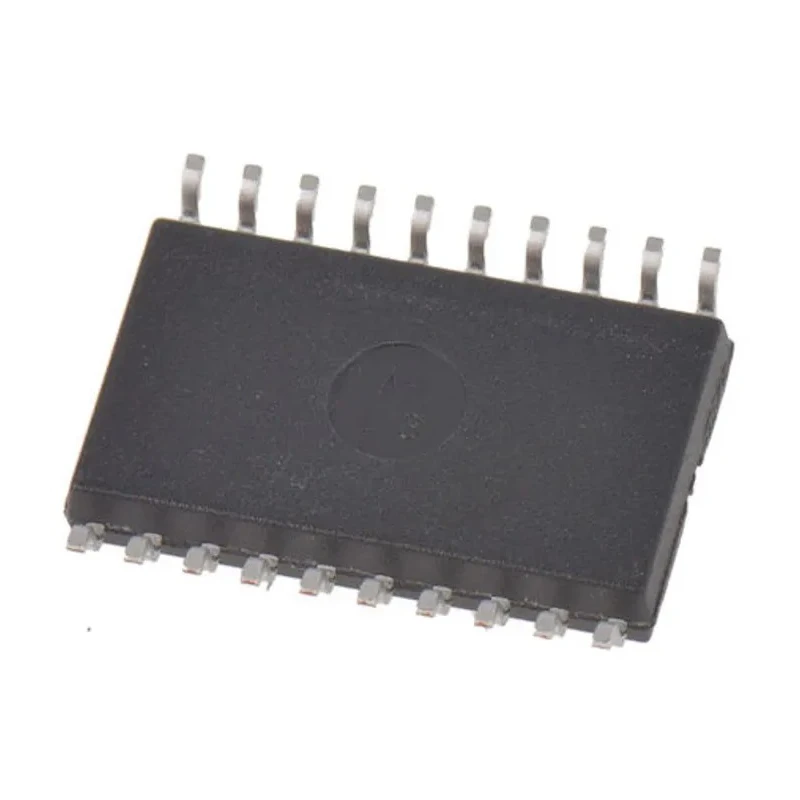

onsemi Inverting 3 State Bus Buffer 20-Pin SOIC MM74HCT541WMX

The onsemi MM74HCT541WMX is an Inverting 3 State Bus Buffer integrated circuit housed in a 20-Pin SOIC surface mount package. It belongs to the 74HCT logic family designed for high-speed CMOS logic applications. This device operates with a supply voltage ranging from 4.5V to 5.5V, making it ideal for digital circuits requiring reliable level shifting from TTL to CMOS.

The MM74HCT541WMX offers a maximum propagation delay time of 12ns, ensuring fast signal processing within complex digital systems. It features an inverting buffer with 3-state output functionality, allowing multiple devices to share a data bus while avoiding interference. The device supports TTL-level inputs and CMOS outputs, making it compatible with a wide range of logic circuits.

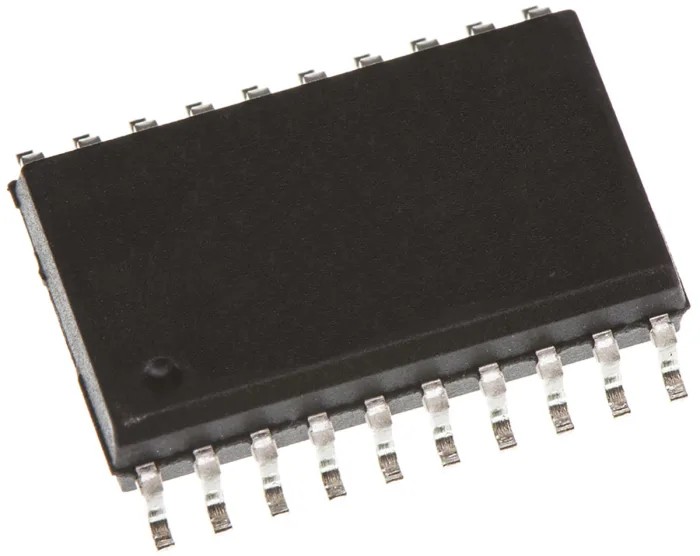

This bus buffer has a pin count of 20 arranged in a small outline IC (SOIC) package type, suitable for surface mounting on printed circuit boards. The operating temperature range from -40°C to 85°C guarantees stable operation across industrial and commercial environments. It has maximum output current ratings of ±7.2mA ensuring adequate driving capability for downstream devices.

Key electrical attributes include low quiescent supply current of approximately 1.5mA, contributing to energy-efficient designs. The MM74HCT541WMX does not incorporate Schmitt trigger inputs but remains compliant with standard logic input and output specifications common to the 74HCT series family.

Operates at supply voltages between 4.5V and 5.5V. Provides an inverting buffer logic function with 3-state output. Compatible with TTL inputs and CMOS outputs. Surface mount SOIC package with 20 pins. Propagation delay time of 12 nanoseconds maximum at typical load.

Suitable for industrial temperature range applications. Maximum output current ±7.2 mA at high and low logic levels. Low supply current of 1.5 mA supports power efficiency. Integrates in 74HCT540/MM74HCT541 series logic family.

The MM74HCT541WMX bus buffer is widely used in industrial, commercial, and laboratory electronics for bus isolation, signal buffering, and multiplexing tasks. Its fast switching speeds and compatibility with mixed logic levels make it ideal for digital systems such as microprocessor interfaces, data transmission lines, and communication equipment.

Choose onsemi MM74HCT541WMX for robust logic buffer applications requiring inverting 3-state outputs in a compact surface mount format. Browse the Semiconductor and Buffers categories on EnvMart to discover complementary logic ICs and related components.
