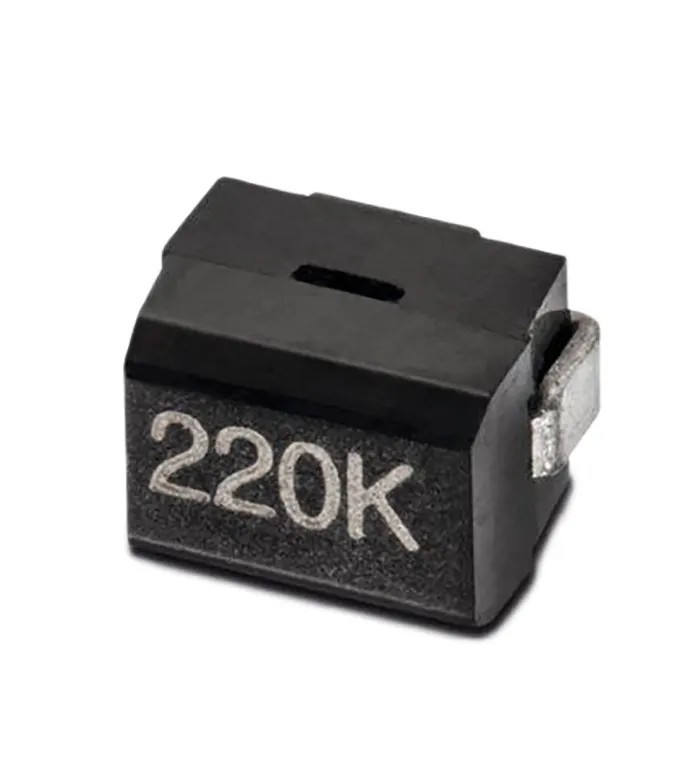

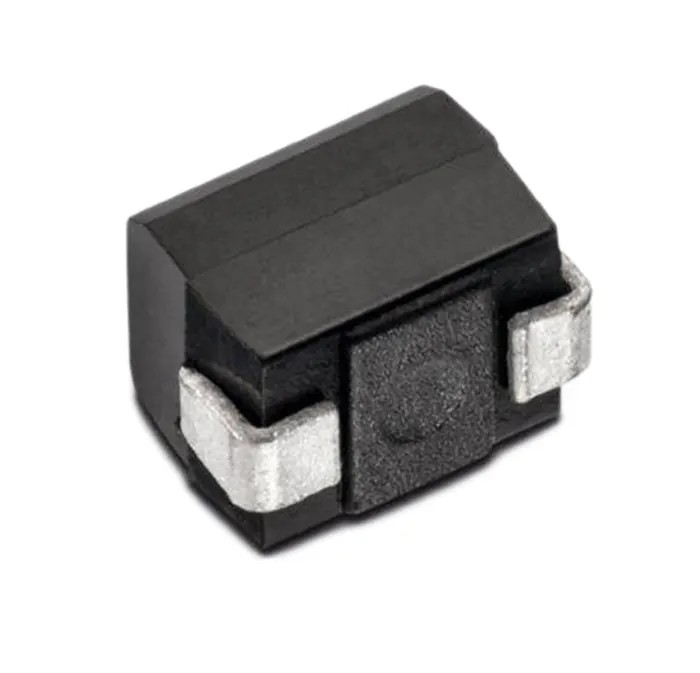

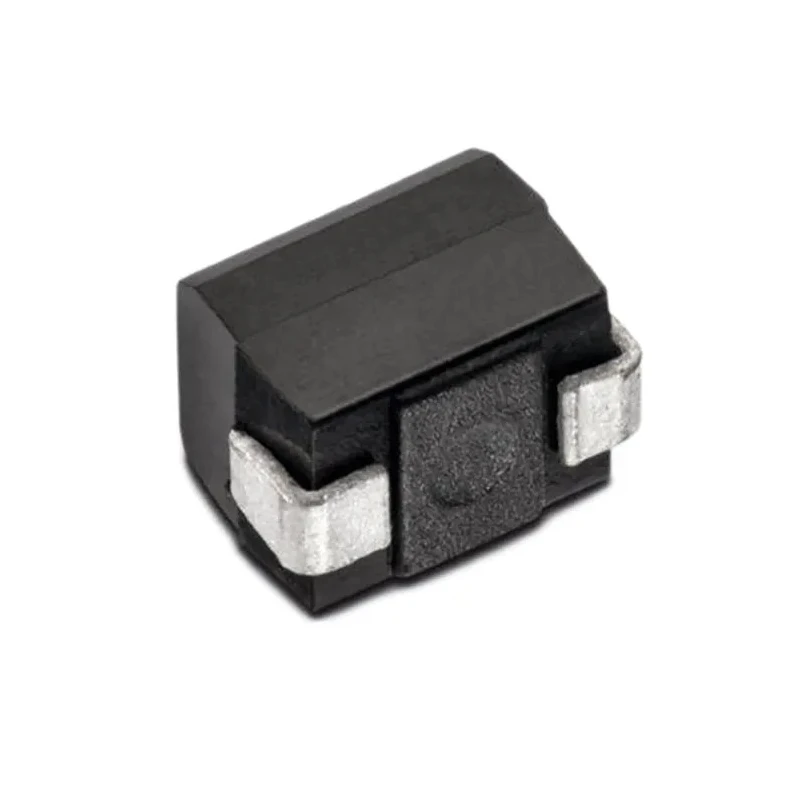

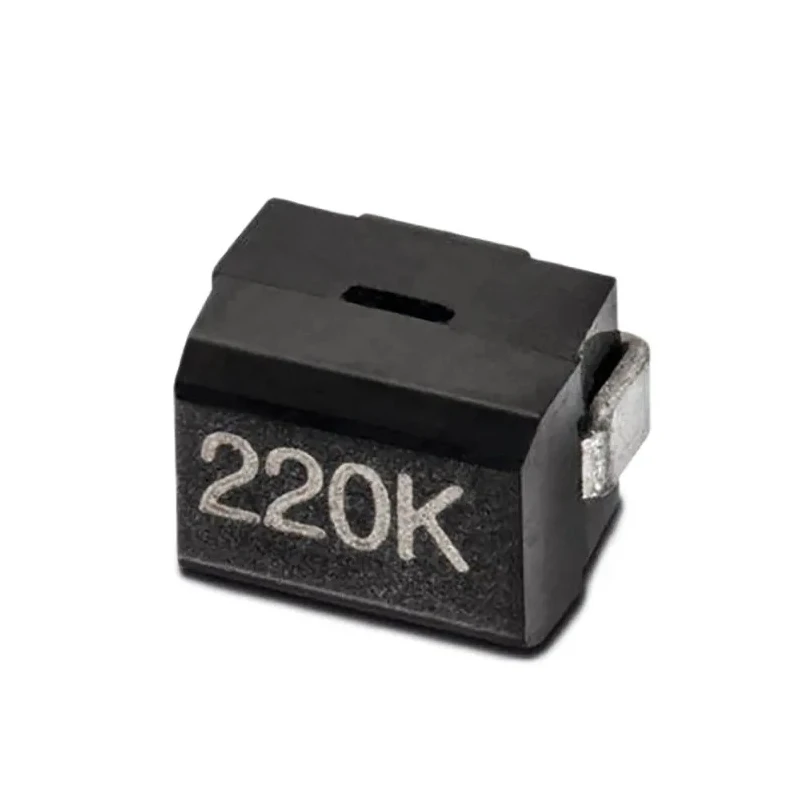

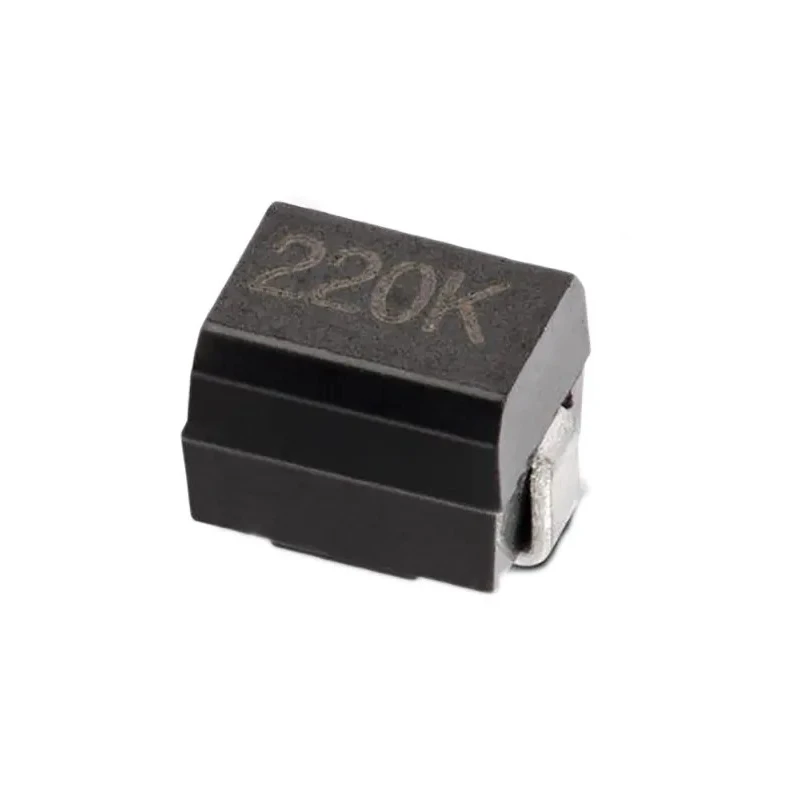

Wurth Elektronik Wirewound Surface Mount Inductor 220μH 200mA Iron Core Moulded 4532 WE-GFH 7447669220

Wurth Elektronik model 7447669220 is a wirewound surface mount inductor featuring a 220μH inductance and 200mA maximum DC current rating. This inductor utilizes an iron core and is moulded for enhanced mechanical strength and stability, making it suitable for demanding electronic environments.

The inductor’s compact 4532 package measures 4.2mm in length, 3.2mm in height and depth, facilitating placement on high-density printed circuit boards. Its inductance tolerance of ±10% allows for reliable and consistent performance in complex electronic circuits.

With a maximum DC resistance of 7.2Ω, this device reduces power dissipation while maintaining high efficiency. It operates reliably across a temperature range from -40°C up to 125°C, supporting various industrial and commercial applications.

The termination style is surface mount, suitable for automated assembly lines and ensuring excellent solder joint reliability. Its maximum self-resonant frequency of 6.5MHz and a minimum quality factor of 40 make it ideal for acoustic filtering, high-frequency filtering, and other HF circuit applications.

Wurth Elektronik inductors meet REACH and RoHS environmental compliance, ensuring safe deployment in modern equipment. This model is part of the WE-GFH series, known for higher current capabilities and low DC resistance in a compact form factor.

Ideal for use in industrial electronics, power management systems, telecommunications, and automotive electronics, it supports efficient filtering and magnetic flux control. The robust moulded construction supports durability in various conditions.

Explore more options in Surface Mount Inductors through EnvMart’s extensive category listings for industrial electronic components. Constructed with an iron core providing reliable magnetic properties. Moulded construction ensures durability and stable performance.

Compact 4532 package size suitable for high-density PCB layouts. Inductance tolerance of ±10% for precise circuit control. Maximum DC resistance of 7.2Ω minimizes power loss. Maximum operating temperature rating of 125°C for wide application use.

Supports surface mount termination style for modern assembly techniques. Maximum self-resonant frequency of 6.5MHz suitable for high-frequency applications. Minimum quality factor of 40 ensures efficient inductance behavior.

Compliant with REACH and RoHS standards for environmental safety. Browse the comprehensive range of Wurth Elektronik inductors and related electronic components on EnvMart for reliable sourcing.
