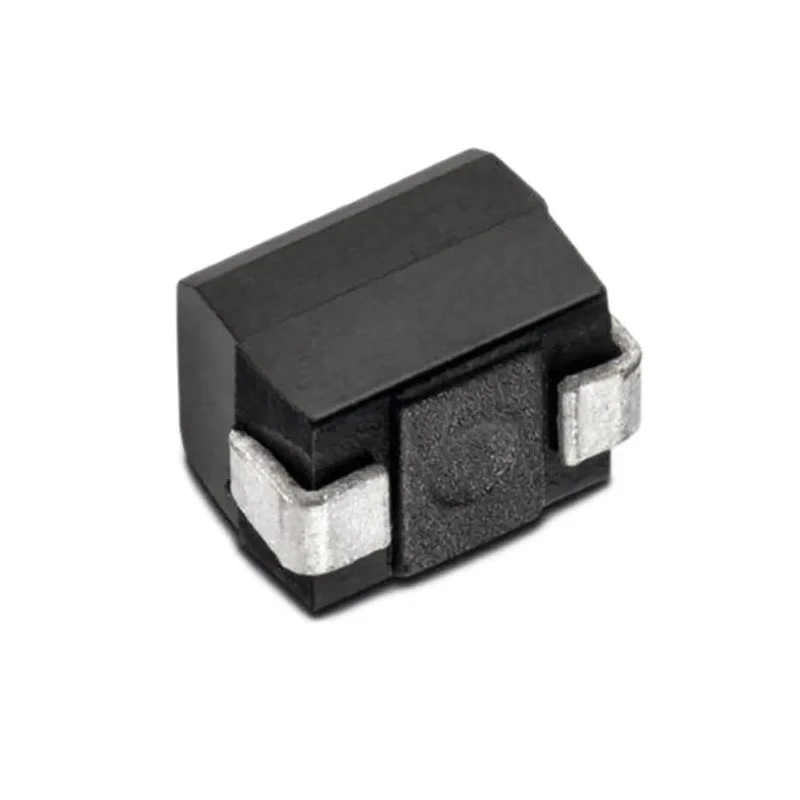

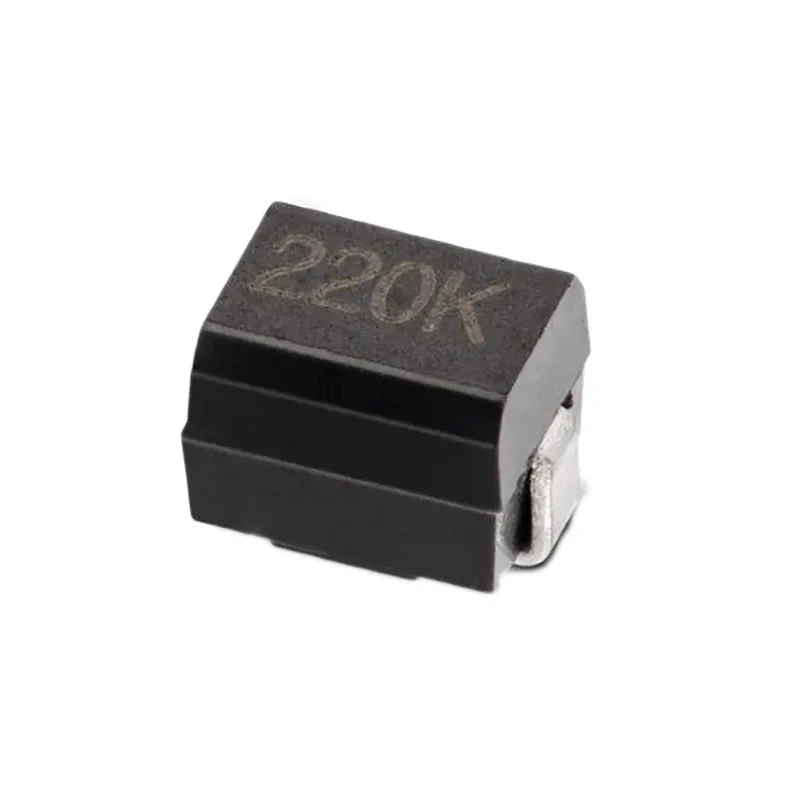

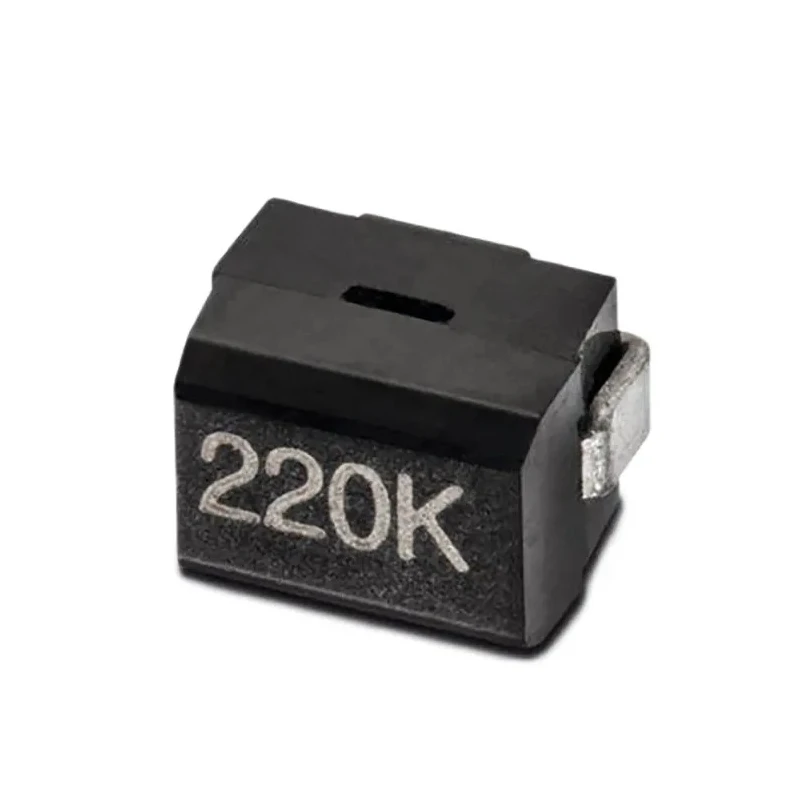

Wurth Elektronik Wirewound Surface Mount Inductor 220μH 200mA Iron Core 4532 Package WE-GFH 7447669220
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Height | 3.2mm |
| Length | 4.2mm |
| Depth | 3.2mm |
| Packaging | Tape & Reel |
| Series | WE-GFH |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Iron |
| Inductance | 220μH |
| Standards/Approvals | REACH, RoHS |
| Package/Case | 4532 |
| Maximum DC Current | 200mA |
| Pin Count | 2 |
| Maximum DC Resistance | 7.2Ω |
| Inductance Tolerance | ±10 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 6.5MHz |
| Minimum Quality Factor | 40 |
| Inductor Construction | Moulded |
Key Features
- Compact 4532 package suitable for surface mount technology.
- Constructed with an iron core for enhanced magnetic properties.
- Inductance tolerance of ±10% ensures predictable performance.
- Maximum DC resistance of 7.2Ω for efficient operation.
- Maximum operating temperature of 125°C for reliable use in various conditions.
- Minimum operating temperature of -40°C supports wide temperature applications.
- Operates with a maximum self-resonant frequency of 6.5MHz.
- Features a minimum quality factor of 40 for optimal performance.
Product Description
Wurth Elektronik 7447669220 wirewound surface mount inductor is designed for high-frequency applications requiring a compact and reliable inductance component. Featuring a 220μH inductance with an iron core, this moulded inductor offers stable performance with a ±10% tolerance and supports a maximum DC current of 200mA. Its 4532 package size makes it suitable for modern PCB surface mount technology.
The inductor is built to operate efficiently across a wide temperature range from -40°C to 125°C. Its maximum DC resistance of 7.2Ω ensures minimal power loss while the minimum quality factor of 40 guarantees performance in high-frequency circuits. With a self-resonant frequency of up to 6.5MHz, the component is ideal for use in acoustic filtering, HF filtering, and various other HF circuits.
This component includes a surface mount termination style and comes packaged in tape and reel format, facilitating ease of use in automated assembly lines. Compliance with REACH and RoHS standards assures environmentally responsible manufacturing. Wurth Elektronik's WE-GFH series provides a reliable solution for industrial and electronic applications demanding stable inductors with robust mechanical and electrical properties.
Compact 4532 package for space-efficient PCB design. Iron core construction enhances magnetic properties and stability. Wide operating temperature range from -40°C to 125°C. Low DC resistance of 7.2Ω reduces energy losses.
High-frequency performance with a 6.5MHz self-resonant frequency. Quality factor minimum of 40 ensures effective performance. Surface mount termination style compatible with SMT assembly. Packaged in tape and reel for automated manufacturing.
Compliance with REACH and RoHS environmental standards.
This Wurth Elektronik Surface Mount Inductor is well-suited for electronic manufacturing, industrial assemblies, and high-frequency circuit applications. Explore more quality inductors and electronic components with EnvMart for reliable sourcing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 220μH with a tolerance of ±10%.
It can handle a maximum DC current of 200mA.
The maximum operating temperature is 125°C, allowing for reliable use in various conditions.
The minimum operating temperature is -40°C, supporting a wide range of applications.
The maximum DC resistance is 7.2Ω, which helps in efficient operation.
The maximum self-resonant frequency is 6.5MHz, making it suitable for high-frequency applications.
It has a minimum quality factor of 40, ensuring effective performance in high-frequency circuits.
This inductor is housed in a compact 4532 package, suitable for surface mount technology.
It is constructed with an iron core, which enhances its magnetic properties.
It is packaged in tape and reel format, facilitating ease of use in automated assembly lines.
This model complies with REACH and RoHS environmental standards, ensuring responsible manufacturing.
It features a surface mount termination style, compatible with SMT assembly.
