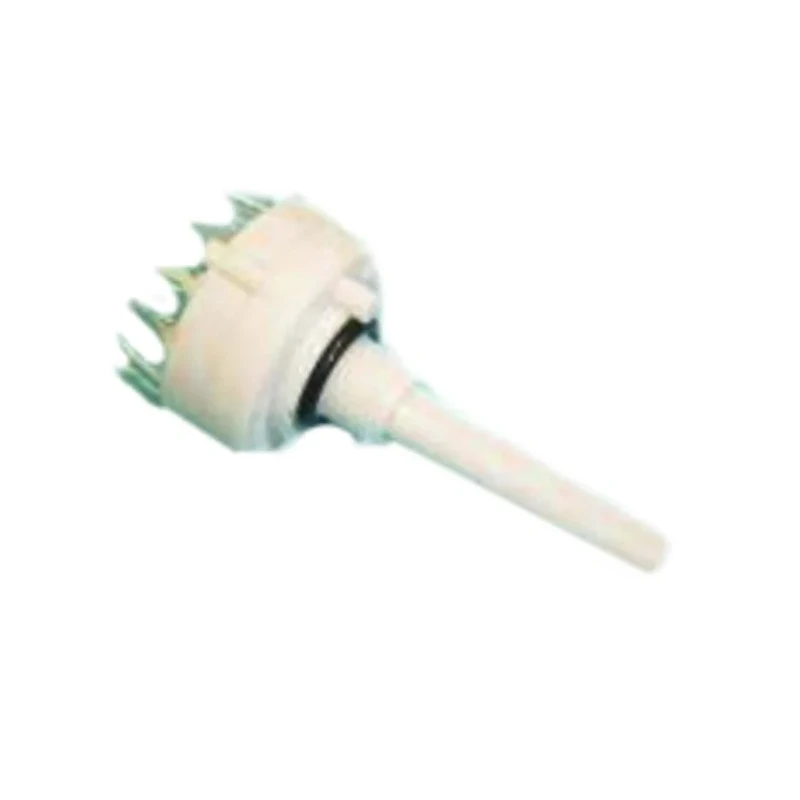

Lorlin Sealed Polyamide Rotary Switch for PCB Mounting Solder Tag Terminals, 250V AC, 24V DC, 90° Throw, Model CKS1037

Lorlin CKS1037 is a sealed rotary switch designed for reliable electrical signal switching in industrial, automation, and electronic applications. Featuring a polyamide housing and solder tag terminals for PCB mount, this switch offers robust mechanical and environmental protection.

Operating at a maximum AC voltage of 250V and a maximum DC voltage of 24V, the switch supports a 90° angle of throw with smooth dampened indexing reducing axial play, ensuring precise and repeatable switching actions. It accommodates up to 4 poles and a maximum of 12 positions per wafer, allowing versatile multi-pole switching configurations.

The front panel is sealed to IP67, making it resistant to dust ingress and capable of withstanding temporary immersion in up to 1 meter of water, ideal for challenging environments requiring durability and reliability. The switch’s mechanical life of 10,000 cycles ensures extended operational longevity for industrial and laboratory use.

Additional features include a black actuator for ease of use, UL-V0 and RoHS compliance for safety and environmental standards, and a compact form factor dimensioned at 27.5 mm diameter and 26.2 mm width for seamless integration into panel designs.

This cost-effective switch is suitable for a wide variety of signal applications, including industrial control systems, automation equipment, and electronic instrumentation. The design supports both shorting (make before break) and non-shorting (break before make) contact options, enhancing its adaptability.

Set contents include one Lorlin CKS1037 rotary switch with solder tag terminals ready for PCB mounting. This product is made in the United Kingdom ensuring adherence to stringent quality standards and reliable performance.

Lorlin Rotary Switches provide a balance of durability, environmental protection, and precise switching control, making them well-suited for industrial automation, electrical equipment manufacturing, testing apparatus, and various commercial applications.

Constructed with durable polyamide housing for robust performance. Features 90° angle of throw for precise switching action. Supports up to 4 poles and 12 positions on a single wafer. Designed with dampened indexing and reduced axial play for smooth operation.

Front panel sealed to IP67, protecting against effects of temporary immersion in water. Mechanical life rated at 10,000 cycles for reliable long-term use. Black actuator color for clear visibility and professional appearance.

Suitable for multiple signal applications requiring cost-effective sealed switches. Manufactured in the United Kingdom maintaining high quality standards.
