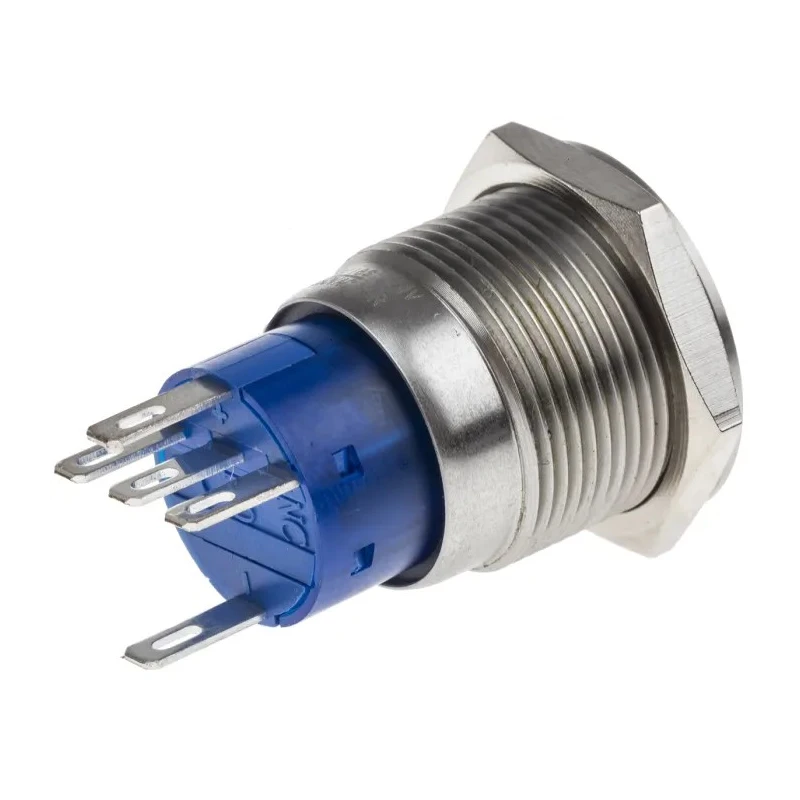

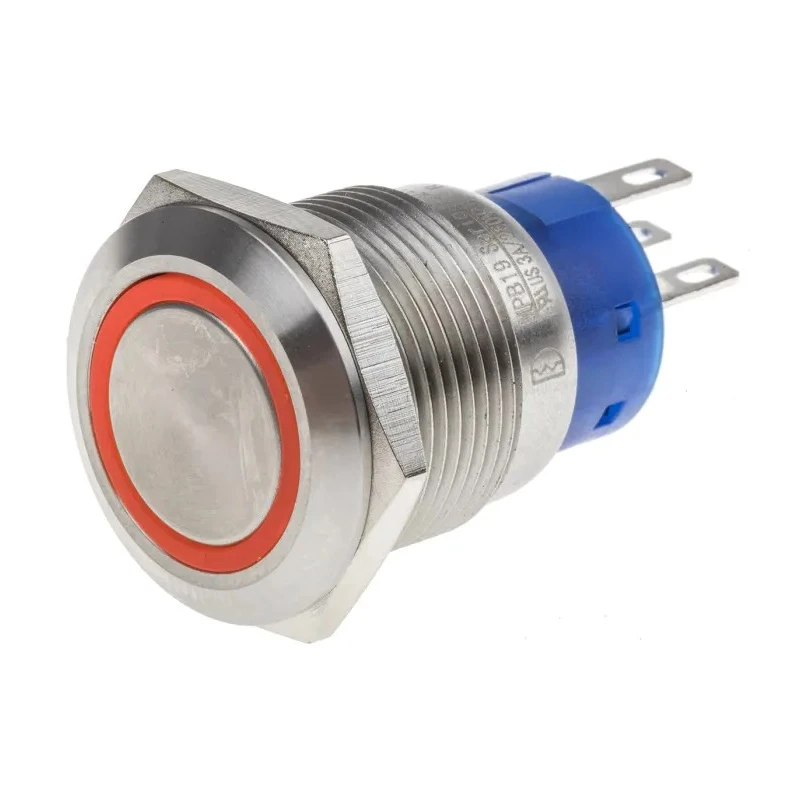

RS PRO Illuminated Push Button Switch Latching Panel Mount 19.2 mm Cutout SPDT Red LED IP67 250 V 5A 111-3766

RS PRO 111-3766 Illuminated Push Button Switch offers a robust latching operation designed for panel mounting with a precise 19.2 mm cutout diameter. The switch is equipped with a single pole double throw (SPDT) contact configuration and enhanced with a red LED illumination to clearly indicate switch status. Operating voltage is rated for 250 V DC and 250 V AC, supporting applications requiring reliable switching under demanding electrical conditions.

The actuator has a silver metallic finish with a round shape for ergonomic user interaction. Its silver plated copper contacts guarantee a firm and corrosion-resistant electrical connection, suitable for long-term industrial use. The device is IP67 rated, ensuring dust tightness and water resistance, suitable for installation in harsh industrial, manufacturing, communication, and medical equipment environments where moisture or dust ingress is a concern.

The push button switch supports a wide operating temperature range from -20°C up to +55°C, enabling use in cold and warm climates. This switch complies with recognized safety and impact standards including cULus E 187490 and IK10 rating for mechanical robustness. The solder pin type terminals offer stable and secure mounting, facilitating assembly into complex control panels.

Typical industrial applications include automation control machinery, communications equipment, medical devices, and premium hobbyist switching setups. This IP67 rated illuminated push button switch is engineered for durable operation, making it a reliable component for industrial electrical control systems.

The switch uses reliable latching operation suitable for industrial and commercial control panels. Includes panel mount design with a 19.2 mm cutout for versatile installation options. Red LED illumination provides clear operating status visibility.

Rated for electrical loads up to 250 V and 5 A current tolerance. Robust IP67 protection ensures resistance to dust and water ingress. Wide operating temperature range expands usability in diverse environments. Complies with UL and IK10 certifications for safety and impact resistance.

Silver plated copper contacts maximize conductivity and reduce corrosion risk. Solder pin terminals ensure easy and secure electrical connections. Designed for industrial, medical, communication, and hobbyist electrical control assemblies.
