RS PRO Toggle Switch, PCB Mount, On-On, SPDT, Through Hole Terminal, 15 V dc, 240 V ac 401-709

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Toggle Switch, PCB Mount, On-On, SPDT, Through Hole Terminal, 15 V dc, 240 V ac 401-709

Name: RS PRO Toggle Switch, PCB Mount, On-On, SPDT, Through Hole Terminal, 15 V dc, 240 V ac 401-709
Brand: RS PRO
SKU: 117767
Price: 645.9 INR
Availability: InStock



Category Toggle Switch Brand RS PRO Condition New

Specifications

Country of Origin	China
Brand	RS PRO
Model	401-709
IP Rating	IP67
Mount Type	PCB
Maximum Operating Temperature	85°C
Contact Configuration	SPDT
Switch Configuration	On-On
Minimum Operating Temperature	-30°C
Terminal type	Through Hole
Standards/Approvals	UL, CE, CSA, RoHS
Switch Operation	On-On
Actuator Length	6.1mm
Contact DC Voltage	15V dc
Switch Contact Current	400mA
Mechanical Life	30000Cycles
Contact AC Voltage	240V ac
Actuator Material	Brass
Straight mount on-on toggle switch,0.4VABrand	C & K
RS PRO Toggle Switch, PCB Mount, On-On, SPDT, Through Hole TerminalBrand	RS PRO

Key Features

Features a brass actuator with a length of 6.1 mm for durable operation.
Gold-plated copper contacts ensure corrosion resistance and reliable conductivity.
Rated for a contact current of 400 mA at 15 V dc and 240 V ac.
Ingress Protection rating of IP67 provides dust-tight and waterproof performance.
Operating temperature range from -30°C to 85°C suits harsh industrial environments.
Mechanical life rated at 30,000 cycles ensures long service durability.
SPDT configuration suitable for switching between two circuits with a latching On-On operation.
Mounts via through-hole terminals on printed circuit boards for secure installation.

Product Description

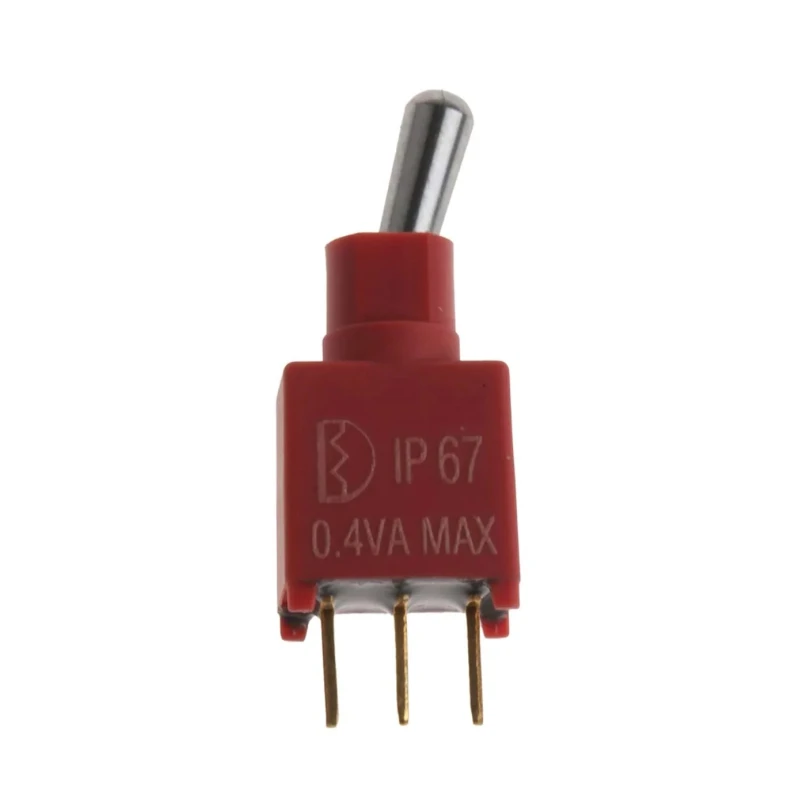

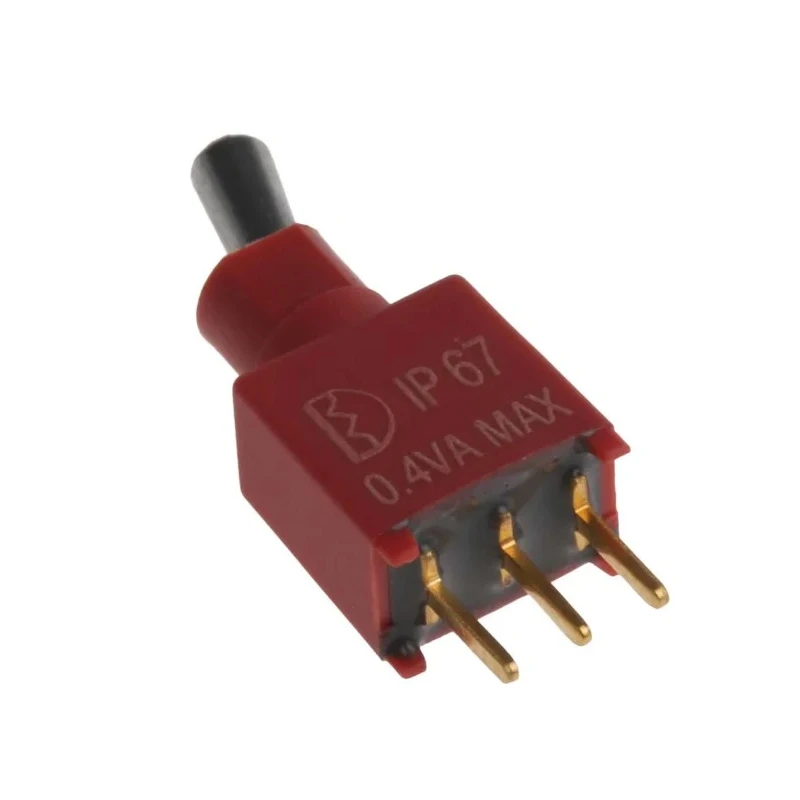

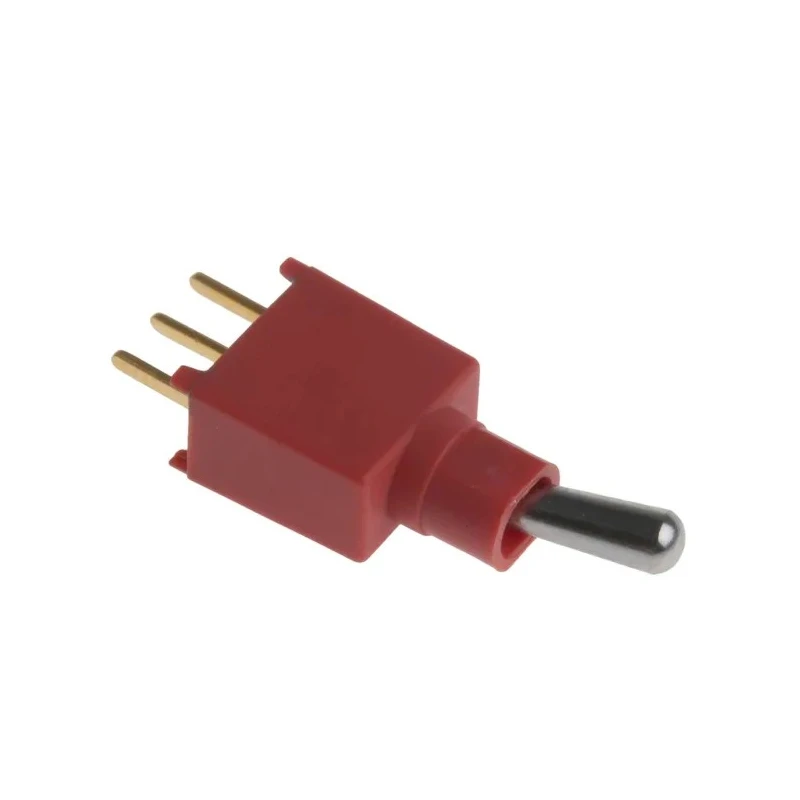

RS PRO 401-709 toggle switch is an IP67-rated, latching SPDT toggle switch designed for PCB mounting in demanding industrial and electrical applications. It operates at 15 V dc and 240 V ac, making it suitable for controlling two circuits in industrial machinery, telecommunications, and test equipment systems.

The switch features a robust brass actuator measuring 6.1 mm in length, combined with gold-plated copper contacts that provide excellent reliability and resistance to corrosion. An O-ring seal integrated with the actuator guarantees dust-tightness and allows the unit to remain waterproof - withstanding immersion in water up to one meter deep for 30 minutes.

With an operating temperature range from -30°C to 85°C and a mechanical life expectancy of 30,000 cycles, this toggle switch is engineered for longevity and consistent performance in harsh environments. Its SPDT (Single Pole Double Throw) configuration enables switching between two electrical circuits efficiently with an On-On latching mechanism.

The through-hole terminal design facilitates secure PCB mounting, making it ideal for integration in industrial automation, instrumentation, and electrical control systems. Its compliance with UL, CE, CSA, and RoHS standards assures adherence to safety and environmental requirements.

Brass actuator with 6.1 mm length for durability. Gold-plated copper contacts for corrosion resistance. Contact current rated at 400 mA for 15 V dc and 240 V ac operation. IP67 rating ensures dust-tight and waterproof protection.

Wide operating temperature range from -30°C to 85°C. Mechanical life of 30,000 cycles for extended reliability. SPDT On-On latching switch configuration. Through-hole PCB mounting for secure attachment. UL, CE, CSA, and RoHS compliant.

This toggle switch is suited for use in industrial machinery, automation equipment, telecommunications infrastructure, and electrical control panels where reliable switching between dual circuits is required. RS PRO products offer quality and precision engineering to meet demanding applications.
