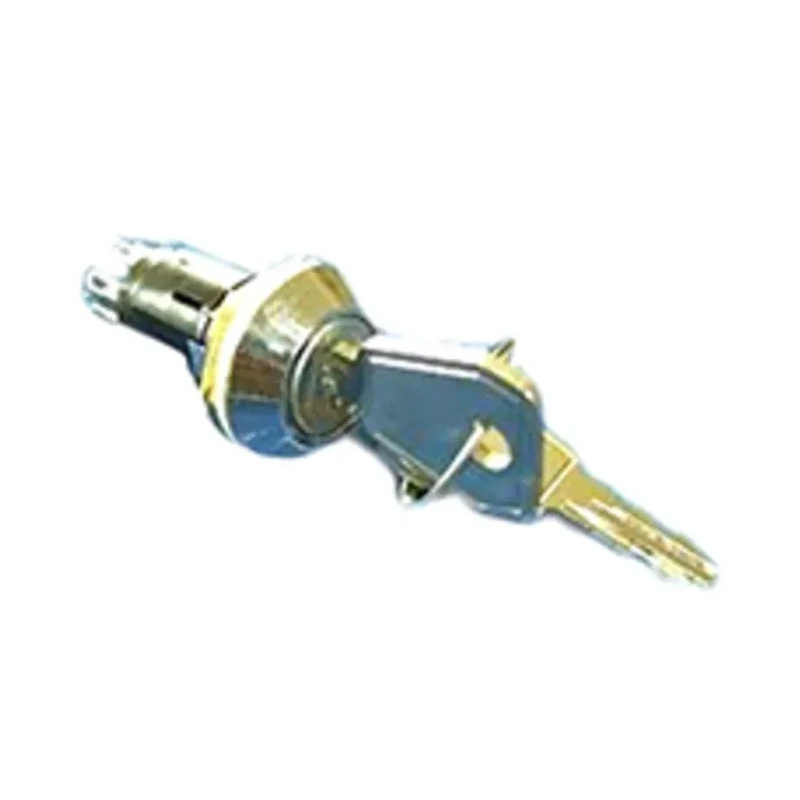

Lorlin IP66 IP67 Keylock Switch SPST 1A 3-Position Latching Common Key WRL-5-F-S-2-RS

Free Delivery in India | Lowest Global Shipping Charges

Lorlin IP66 IP67 Keylock Switch SPST 1A 3-Position Latching Common Key WRL-5-F-S-2-RS

Name: Lorlin IP66 IP67 Keylock Switch SPST 1A 3-Position Latching Common Key WRL-5-F-S-2-RS
Brand: Lorlin
SKU: 394333
Price: 2774.84 INR
Availability: InStock



Category Key Switch Brand Lorlin Condition New

Specifications

Country of Origin	United Kingdom
Brand	Lorlin
Model	WRL-5-F-S-2-RS
IP Rating	IP66, IP67
Housing Material	Polyamide 66
Contact Material	Brass CZ108
Series	WRL
Maximum Operating Temperature	65°C
Contact Configuration	SPST
Number of Positions	3
Minimum Operating Temperature	-20°C
Terminal type	Solder
Standards/Approvals	RoHS
Switch Operation	Latching
Contact DC Voltage	24V dc
Switch Contact Current	1A
Mechanical Life	10000Cycles
Contact AC Voltage	115V ac
Key Type	Common
Bezel Shape	Round
Key Index Angle	90°

Key Features

Miniature 16mm key lock with IP66 and IP67 ingress protection ratings.
Latching switch mechanism with 3 operational positions.
Single Pole Single Throw (SPST) contact configuration supporting 1A current.
Common key type allowing key operation in all positions.
Housing made from durable Polyamide 66 material.
Suitable for operating temperatures from -20°C to 65°C.
Solder terminal type with round bezel shape for easy panel assembly.
Brass CZ108 contact material ensuring reliability and conductivity.

Product Description

Lorlin WRL-5-F-S-2-RS is a miniature key-operated lock switch designed for demanding electrical and automation applications requiring high ingress protection. This keylock switch features a latching Single Pole Single Throw (SPST) operation with 3 selectable positions, making it suitable for secure control panels.

The device offers IP66 and IP67 ratings, ensuring excellent resistance to dust and water ingress, ideal for harsh industrial or outdoor environments. Manufactured from robust Polyamide 66 housing and equipped with brass CZ108 contacts, the switch provides reliable electrical performance at up to 1A contact current.

The switch supports both 24V DC and 115V AC operational voltages and a 90° key index angle, delivering versatile options for integration.

The common key type supports double entry operation with keys that can be inserted in either orientation. Two keys come supplied with each switch, offering options for either common keying or different key combinations.

This switch is highly suitable for applications in electrical automation, control panels, security systems, marine environments, and industrial equipment, where robust operation and secure control are essential.

Manufactured in the United Kingdom, the WRL series switches adhere to RoHS directives ensuring environmental compliance. Miniature 16mm key lock with IP66 and IP67 ingress protection ratings. Latching switch mechanism with 3 operational positions.

Single Pole Single Throw (SPST) contact configuration supporting 1A current. Common key type allowing key operation in all positions. Housing made from durable Polyamide 66 material. Suitable for operating temperatures from -20°C to 65°C.

Solder terminal type with round bezel shape for easy panel assembly. Brass CZ108 contact material ensuring reliability and conductivity. Mechanical life rating of 10,000 cycles for extended service durability. Designed and manufactured in the United Kingdom applying RoHS compliance standards.

Explore more keylock switches in the Lorlin WRL series and related products for industrial automation and secure electrical systems at EnvMart.

Explore more products in our Key Switch category.
