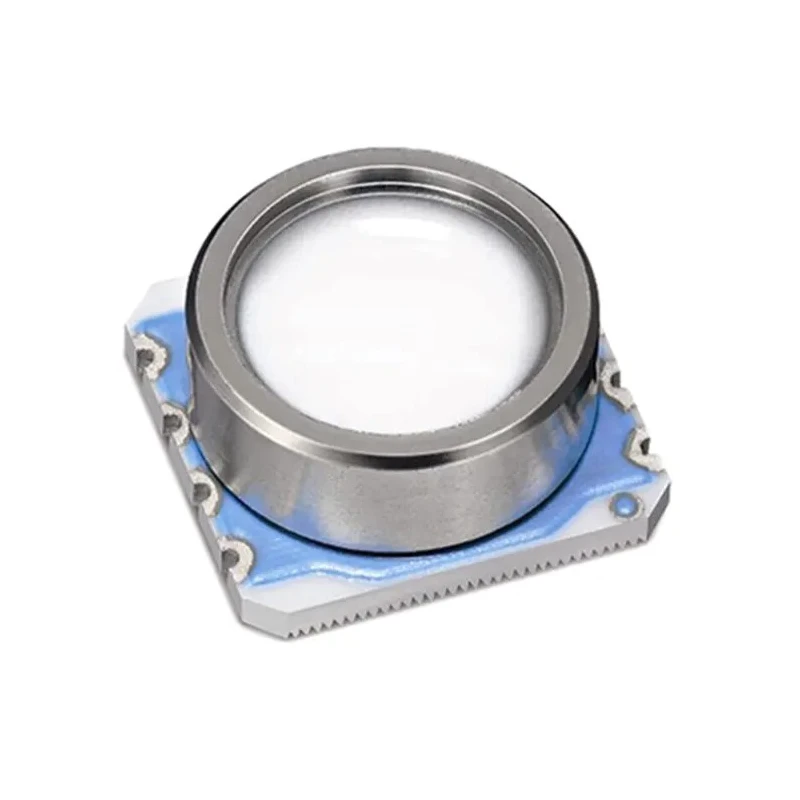

TE Connectivity Barometric Pressure Sensor Surface Mount 8-Pin QFN 1.8-3.6V ±1.5 mbar Accuracy MS580302BA01-00
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±1.5 mbar |
| Brand | TE Connectivity |
| Maximum Operating Pressure | 1100 mbar |
| Height | 5mm |
| Length | 3mm |
| Model | MS580302BA01-00 |
| Sensor Type | Absolute Pressure Sensor |
| Width | 950μm |
| Mount Type | Surface |
| Series | MS580302BA01-00 |
| Maximum Operating Temperature | 85°C |
| Package Type | QFN |
| Minimum Operating Temperature | -40°C |
| Pin Count | 8 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 1.8V |
| Minimum Output Voltage | 0mV |
| Minimum Operating Pressure | 10mbar |
| Maximum Overload Pressure | 10bar |
Key Features
- Compact surface mount QFN package with 8 pins for easy PCB integration.
- Wide operating temperature range from -40°C to 85°C for harsh environments.
- Pressure sensing range from 10 mbar to 1100 mbar with maximum overload of 10 bar.
- Integrated 24-bit ΔΣ ADC with factory calibration for high precision output.
- Supports I2C and SPI interfaces for flexible microcontroller connectivity.
- Low power consumption ideal for portable or battery-powered equipment.
- High stability and low hysteresis improve sensor repeatability and reliability.
- Suitable for applications such as altimeters, weather stations, and mobile devices.
Product Description
TE Connectivity MS580302BA01-00 is a high-precision barometric pressure sensor in a compact surface mount 8-pin QFN package. Designed for measuring absolute pressure with ±1.5 mbar accuracy, this sensor operates with a supply voltage range of 1.8V to 3.6V and withstands pressures up to 10 bar overload and a maximum operating pressure of 1100 mbar.
The sensor integrates a digital 24-bit sigma-delta ADC combined with an internal factory-calibrated pressure element. This configuration provides a highly linear output pressure and temperature measurement that can interface with microcontrollers via either I2C or SPI digital communication protocols.
Its wide operating temperature range from -40°C to 85°C and compact footprint of 3mm length, 950µm width, and 5mm height makes it well-suited for embedded systems in industrial, automotive, environmental, and consumer electronics applications requiring reliable and precise atmospheric pressure measurement.
The sensor benefits from very low hysteresis and high stability of the pressure and temperature signals, ensuring consistent performance in demanding conditions. Additionally, due to its surface mount design, it facilitates automated assembly processes and compact PCB layouts.
Compact surface mount 8-pin QFN package. Wide supply voltage from 1.8V to 3.6V. Pressure range: 10 mbar to 1100 mbar, with 10 bar maximum overload. ±1.5 mbar pressure accuracy. Operating temperature range from -40°C to 85°C.
Integrated 24-bit sigma-delta ADC for digital output. I2C and SPI interface compatibility. Low hysteresis and high signal stability.
This sensor is ideal for use in altimeters, mobile altimeter and depth measuring systems, weather stations, bike computers, dataloggers, and diving computers. It provides precise and reliable pressure data essential for accurate environmental measurements and control in industrial, laboratory, and consumer electronic applications.
Explore the full range of specialized Pressure Sensor ICs and components at EnvMart for your development and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a pressure sensing range from 10 mbar to 1100 mbar, with a maximum overload pressure of 10 bar.
The sensor provides an accuracy of ±1.5 mbar.
It operates with a supply voltage range of 1.8V to 3.6V.
This unit supports I2C and SPI interfaces for flexible connectivity with microcontrollers.
The operating temperature range is from -40°C to 85°C.
It has a compact footprint with dimensions of 3mm in length, 950µm in width, and 5mm in height.
This model is classified as an absolute pressure sensor.
It benefits from very low hysteresis and high stability, which improve the repeatability and reliability of pressure measurements.
Yes, it has low power consumption, making it ideal for portable or battery-powered equipment.
It features a surface mount design, which facilitates automated assembly processes.
It is suitable for applications such as altimeters, weather stations, and mobile devices.
The country of origin for this sensor is India.
