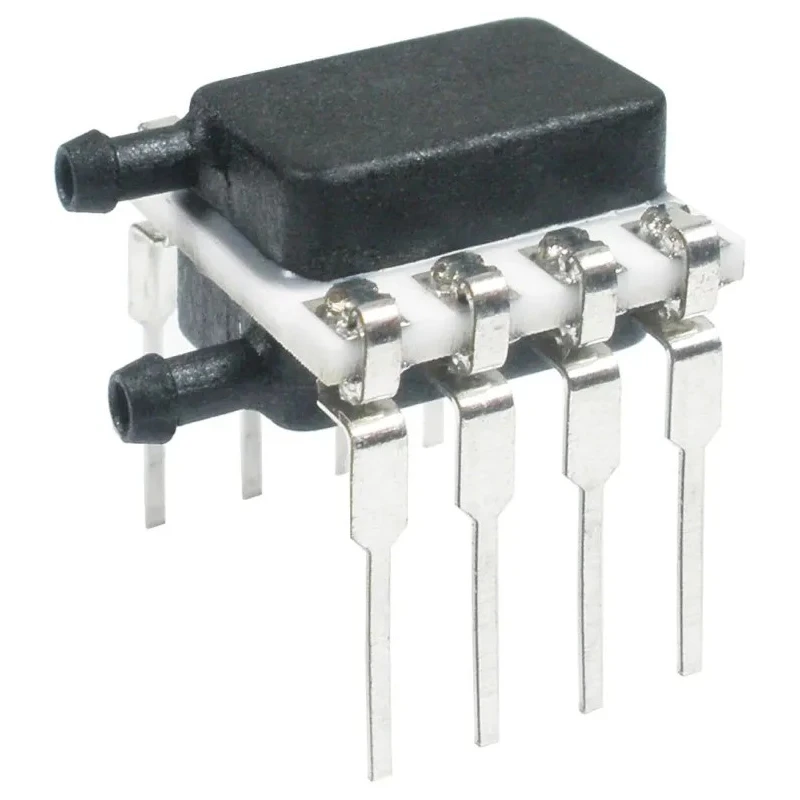

Honeywell Technologies Pressure SensorBoard 8 DIP with ±0.25% Accuracy, 3.3V to 5V Supply HSCDRRN040MD2A3
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±0.25 % |
| Brand | Honeywell |
| Maximum Operating Pressure | 40 mbar |
| Height | 13.75mm |
| Length | 10mm |
| Model | HSCDRRN040MD2A3 |
| Sensor Type | Piezoresistive Pressure Sensor |
| Width | 13.3mm |
| Mount Type | Board |
| Series | HSC |
| Maximum Operating Temperature | +85°C |
| Port Type | Dual Radial Barbed |
| Package Type | DIP |
| Minimum Operating Temperature | -20°C |
| Standards/Approvals | ISO 9001 |
| Pin Count | 8 |
| Automotive Standard | ISO 9001 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 3.3V |
| Minimum Operating Pressure | -40mbar |
| Maximum Overload Pressure | 850mbar |
Key Features
- Provides ratiometric analogue and 12-14 bit digital outputs compatible with I2C or SPI communication protocols.
- Built for differential pressure measurement of non-corrosive gases and selected liquids.
- Dual radial barbed ports ensure easy and secure tubing connections.
- Operates reliably within a temperature range of -20°C to +85°C on the board mount.
- Calibrated and temperature compensated for superior stability in industrial and medical settings.
- Maximum operating pressure of 40 mbar with overload protection up to 850 mbar.
- Compact dimensions of approximately 13.75mm height, 13.3mm width, and 10mm length.
- Ideal for respiratory equipment airflow monitoring, HVAC filter clog detection, gas flow instrumentation, chromatography, and medical ventilator monitoring.
Product Description
Honeywell HSCDRRN040MD2A3 is a high precision piezoresistive pressure sensor board in DIP package featuring 8 pins, designed for differential pressure measurements with ±0.25% accuracy. It operates on low voltage ranging from 3.3V minimum to 5V maximum supply, making it suitable for low voltage systems.
This sensor is calibrated and temperature compensated across 0°C to 50°C to maintain stable and accurate output readings. It provides ratiometric analogue outputs and digital signals compatible with I2C or SPI, supporting rapid measurement updates critical for control loops.
Equipped with dual radial barbed ports, it allows straightforward connection to tubing for differential pressure measurement of non-corrosive gases and selected liquids. The device withstands maximum operating pressure of 40 mbar with an overload pressure tolerance up to 850 mbar, ensuring robustness in demanding industrial and medical applications.
The compact form factor with dimensions 13.75mm height, 13.3mm width, and 10mm length allows easy integration on printed circuit boards. It is ideal for HVAC systems, respiratory and anaesthesia monitoring, gas flow instrumentation, chromatography, and laboratory instruments requiring fast differential pressure readings.
Provides ±0.25% accuracy minimizing software calibration requirements. Operates with low power consumption suitable for portable battery-powered equipment. Complies with ISO 9001 quality standards ensuring manufacturing reliability.
Interfaces available for multiple output types including analogue and digital. Supports usage in automotive and industrial sensors requiring reliable differential pressure measurement.
Incorporate the Honeywell HSCDRRN040MD2A3 pressure sensor in your next industrial, medical, or laboratory project for accurate, fast, and stable differential pressure sensing. Explore more Pressure Sensor ICs and components at EnvMart for advanced sensor solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Honeywell HSCDRRN040MD2A3 pressure sensor has an accuracy of ±0.25%.
This model can operate at a maximum pressure of 40 mbar and can withstand overload pressures up to 850 mbar.
The dimensions of the Honeywell HSCDRRN040MD2A3 are approximately 13.75mm in height, 13.3mm in width, and 10mm in length.
The sensor operates on a supply voltage range from 3.3V to 5V.
It provides ratiometric analogue outputs and digital signals compatible with I2C or SPI communication protocols.
The operating temperature range for this sensor is from -20°C to +85°C.
This model features dual radial barbed ports for easy and secure tubing connections.
The minimum operating pressure for the Honeywell HSCDRRN040MD2A3 is -40 mbar.
This sensor complies with ISO 9001 quality standards, ensuring manufacturing reliability.
The Honeywell HSCDRRN040MD2A3 has a pin count of 8.
This model uses a piezoresistive pressure sensor type for differential pressure measurement.
It is suitable for applications such as respiratory equipment airflow monitoring, HVAC filter clog detection, gas flow instrumentation, and chromatography.
