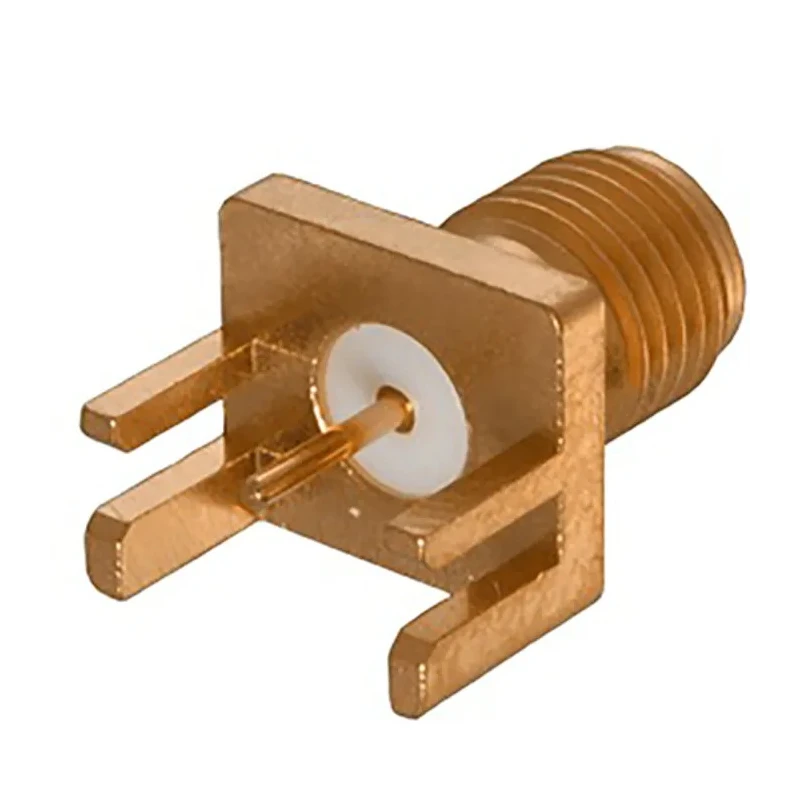

Cinch SMA Series Coaxial Connector Edge Female SMA, 50 Ω, Straight Body, Solder Termination 142-0701-841

Free Delivery in India | Lowest Global Shipping Charges

Cinch SMA Series Coaxial Connector Edge Female SMA, 50 Ω, Straight Body, Solder Termination 142-0701-841

Name: Cinch SMA Series Coaxial Connector Edge Female SMA, 50 Ω, Straight Body, Solder Termination 142-0701-841
Brand: Cinch
SKU: 385183
Price: 6.75 USD
Availability: InStock



Category Coaxial Connector Brand Cinch Condition New

Specifications

Country of Origin	India
Size	Standard
Brand	Cinch
Orientation	Straight
Mount Type	Edge
Operating Frequency	18GHz
Contact Material	Beryllium Copper
Series	SMA
Termination Type	Solder
Maximum Operating Temperature	165°C
Cable Type	RG142, RG178, RG58
Minimum Operating Temperature	-65°C
Polarity	Normal
Impedance	50Ω
Contact Plating	Gold
Contact Gender	Female
Connector Gender	Female
Coaxial Connector Type	SMA
Body Plating	Gold over Nickel

Key Features

Constructed with gold plating over nickel body for enhanced corrosion resistance.
Compatible with RG142, RG178, and RG58 cable types providing flexibility.
Operates over a wide frequency range up to 18 GHz with 50 Ω impedance.
Features female connector gender with normal polarity and straight orientation.
Termination via solder ensures solid electrical contact and mechanical strength.
Body material includes stainless steel ensuring mechanical durability.
Contact material is beryllium copper with gold plating to maintain signal integrity.
Suitable for operating temperatures from -65°C to 165°C offering robustness in harsh environments.

Product Description

Cinch 142-0701-841 SMA Series Coaxial Connector Edge Female SMA with 50 Ω impedance and straight body solder termination is engineered for high frequency RF signal transmission. Its professional grade construction utilizes a stainless steel body plated with gold over nickel, promoting excellent durability and corrosion resistance.

Designed to accommodate cable types RG142, RG178, and RG58, this connector ensures broad compatibility for industrial, laboratory, electronic equipment manufacturing, and telecommunications applications.

The connector features a female gender with normal polarity, optimized for edge mounting and operates reliably up to 18 GHz frequency. Its termination type is solder, providing a secure and effective electrical connection.

The contact is composed of beryllium copper plated with gold, guaranteeing superior signal conductivity and resistance to wear. It operates efficiently within a temperature range of -65°C to 165°C, suitable for demanding environmental conditions.

This SMA connector is especially useful in applications requiring precision and stability in signal connection such as RF test equipment, aerospace communication devices, and microwave systems.

Constructed with gold plating over nickel body for enhanced corrosion resistance. Compatible with RG142, RG178, and RG58 cable types providing flexibility. Operates over a wide frequency range up to 18 GHz with 50 Ω impedance.

Features female connector gender with normal polarity and straight orientation. Termination via solder ensures solid electrical contact and mechanical strength. Body material includes stainless steel ensuring mechanical durability.

Contact material is beryllium copper with gold plating to maintain signal integrity. Suitable for operating temperatures from -65°C to 165°C offering robustness in harsh environments. Explore comprehensive ranges of Coaxial Connectors and electronic components at EnvMart for your industrial, laboratory, and telecommunications needs.
