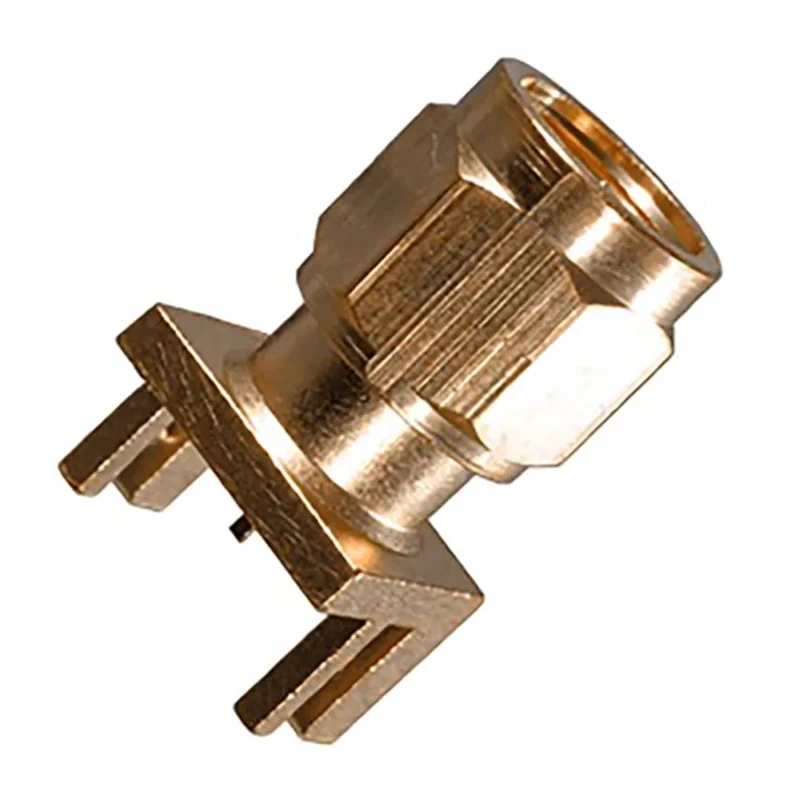

Cinch SMA Series Coaxial Connector PCB Male SMA, 50 Ω, Straight Body Solder 142-0801-811

Free Delivery in India | Lowest Global Shipping Charges

Cinch SMA Series Coaxial Connector PCB Male SMA, 50 Ω, Straight Body Solder 142-0801-811

Name: Cinch SMA Series Coaxial Connector PCB Male SMA, 50 Ω, Straight Body Solder 142-0801-811
Brand: Cinch
SKU: 385180
Price: 14.87 USD
Availability: InStock



Category Coaxial Connector Brand Cinch Condition New

Specifications

Country of Origin	United States
Size	Standard
Brand	Cinch
Orientation	Straight
Mount Type	PCB
Operating Frequency	18GHz
Contact Material	Brass
Series	SMA
Termination Type	Solder
Maximum Operating Temperature	165°C
Cable Type	RG58, RG178, RG142
Minimum Operating Temperature	-65°C
Polarity	Normal
Impedance	50Ω
Contact Plating	Gold
Contact Gender	Male
Connector Gender	Male
Coaxial Connector Type	SMA
Body Plating	Gold over Nickel

Key Features

Operates at frequencies up to 18 GHz ensuring high signal integrity.
Gold over Nickel body plating provides excellent corrosion resistance.
Compatible with RG58, RG178, and RG142 cable types for versatile use.
Features a brass contact material with gold plating assuring reliable connectivity.
Designed for PCB mounting with a standard size and male connector gender.
Robust construction ensures operation between -65°C and 165°C temperature range.
Termination is solder type ensuring secure and durable connection.
Connector orientation is straight for ease of installation.

Product Description

Cinch 142-0801-811 SMA Series Coaxial Connector PCB Male is a high-quality coaxial connector optimized for RF and microwave applications demanding superior signal performance and mechanical reliability. Featuring a 50 Ω impedance, this connector supports operating frequencies up to 18 GHz, making it suitable for advanced electronics, telecommunications, and laboratory instrumentation systems.

The connector has a straight body orientation and is designed for PCB mounting, providing stable connections on printed circuit boards. It employs a solder termination type ensuring a secure and robust electrical contact. The brass contacts are enhanced with gold plating, while the connector body is plated with gold over nickel for excellent corrosion resistance and durability in demanding environments.

Compatible with standard cable types including RG58, RG178, and RG142, this SMA connector series meets industry requirements for both performance and reliability. Operating temperature ranges from -65°C to 165°C allow its use in harsh environmental conditions typical of industrial, aerospace, and defense applications.

Its standard size and male connector gender ensure compatibility across a broad range of professional-grade RF equipment. Operates at frequencies up to 18 GHz ensuring high signal integrity. Gold over Nickel body plating provides excellent corrosion resistance.

Compatible with RG58, RG178, and RG142 cable types for versatile use. Features a brass contact material with gold plating assuring reliable connectivity. Designed for PCB mounting with a standard size and male connector gender.

Robust construction ensures operation between -65°C and 165°C temperature range. Termination is solder type ensuring secure and durable connection. Connector orientation is straight for ease of installation. Manufactured in the United States with professional grade quality.

This product is ideal for electronic manufacturing, telecommunications installations, test and measurement devices, and aerospace systems requiring dependable Coaxial Connectors. EnvMart offers this connector as part of its electronics components portfolio for high-performance applications.
