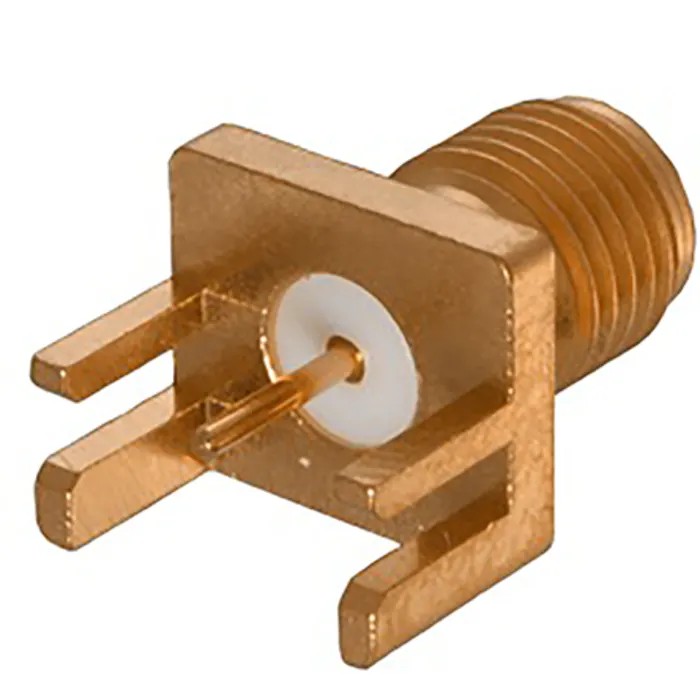

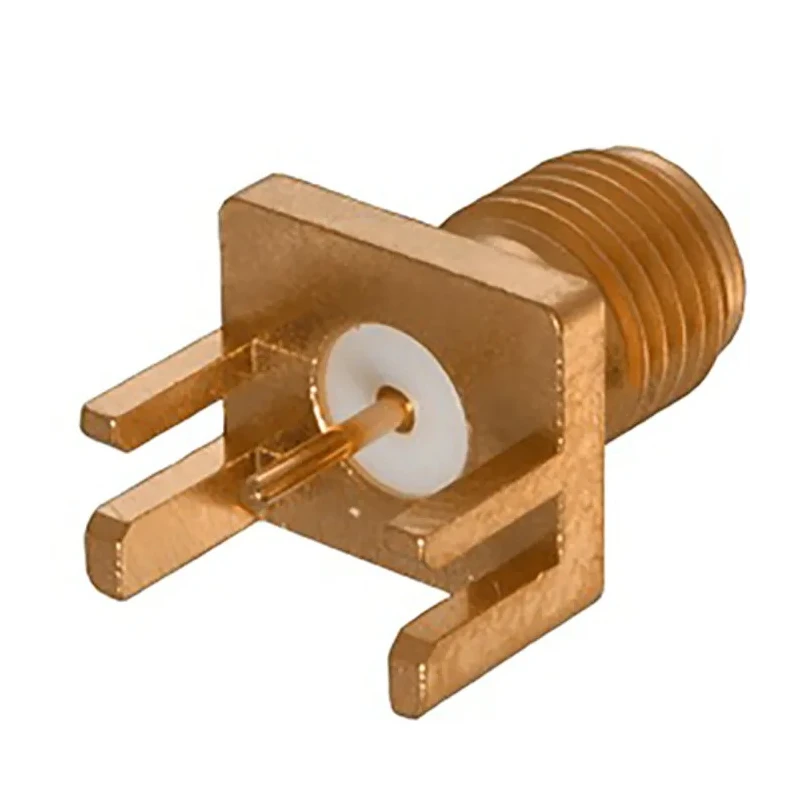

Cinch SMA Series Coaxial Connector Edge Female SMA 50 Ω Straight Body Solder 142-0701-851

Free Delivery in India | Lowest Global Shipping Charges

Cinch SMA Series Coaxial Connector Edge Female SMA 50 Ω Straight Body Solder 142-0701-851

Name: Cinch SMA Series Coaxial Connector Edge Female SMA 50 Ω Straight Body Solder 142-0701-851
Brand: Cinch
SKU: 385178
Price: 5.64 USD
Availability: InStock



Category Coaxial Connector Brand Cinch Condition New

Specifications

Country of Origin	China
Size	Standard
Brand	Cinch
Orientation	Straight
Mount Type	Edge
Operating Frequency	18GHz
Contact Material	Beryllium Copper
Series	SMA
Termination Type	Solder
Maximum Operating Temperature	165°C
Cable Type	RG58, RG178, RG142
Minimum Operating Temperature	-65°C
Polarity	Normal
Impedance	50Ω
Contact Plating	Gold
Contact Gender	Female
Connector Gender	Female
Coaxial Connector Type	SMA
Body Plating	Gold over Nickel
RS PRO Coaxial Connector Edge Female SMA, 50 Ω, Straight Body SolderRS Stock No.	526-5785Brand: RS PRO

Key Features

Features a straight body design suitable for edge mounting applications.
Operates efficiently up to a frequency of 18 GHz.
Constructed with a stainless steel body and gold over nickel plating for durability.
Contact pins are gold plated beryllium copper ensuring excellent conductivity.
Supports cable types RG58, RG178, and RG142 for versatile installations.
Designed to function in temperature ranges from -65°C to 165°C.
Termination is via solder, suitable for permanent, reliable connections.
Compatible with standard-size coaxial cables maintaining 50 Ω impedance.

Product Description

Cinch 142-0701-851 SMA Series Coaxial Connector Edge Female SMA 50 Ω Straight Body Solder is engineered for high-performance RF coaxial connections requiring precision and durability. This connector features a stainless steel body plated with gold over nickel, ensuring excellent corrosion resistance and mechanical strength suitable for various industrial and communication environments.

The female SMA connector has a straight body design optimized for edge mounting, compatible with commonly used coaxial cables such as RG58, RG178, and RG142. It supports an operating frequency up to 18 GHz, making it suitable for high-frequency signal transmission in applications such as telecommunications, RF modules, and laboratory test equipment.

The contacts use beryllium copper material with gold plating to guarantee low contact resistance and reliable signal integrity. The connector is rated for operation between -65°C and 165°C, providing robustness for demanding industrial and outdoor environments. Termination is through soldering, providing a secure and stable connection.

This model 142-0701-851 is produced in China, adhering to quality standards expected for professional-grade coaxial connectors. Its normal polarity and female contact gender make it compatible with standard male SMA connectors.

High performance SMA coaxial connector suitable for edge mount applications. Gold over nickel plating on stainless steel body for durability and corrosion resistance. Contact pins made from gold-plated beryllium copper ensuring excellent conductivity.

Works with RG58, RG178, and RG142 cable types. Supports frequencies up to 18 GHz for RF applications. Operating temperature range from -65°C to 165°C. Solder termination for secure and permanent connection. Standard size and 50 Ω impedance for widespread compatibility.

Female contact gender with normal polarity configuration. Ideal for industrial, laboratory, communication, and telecommunications use cases. Explore more advanced Coaxial Connectors and RF components on EnvMart for reliable and precise connectivity solutions.
