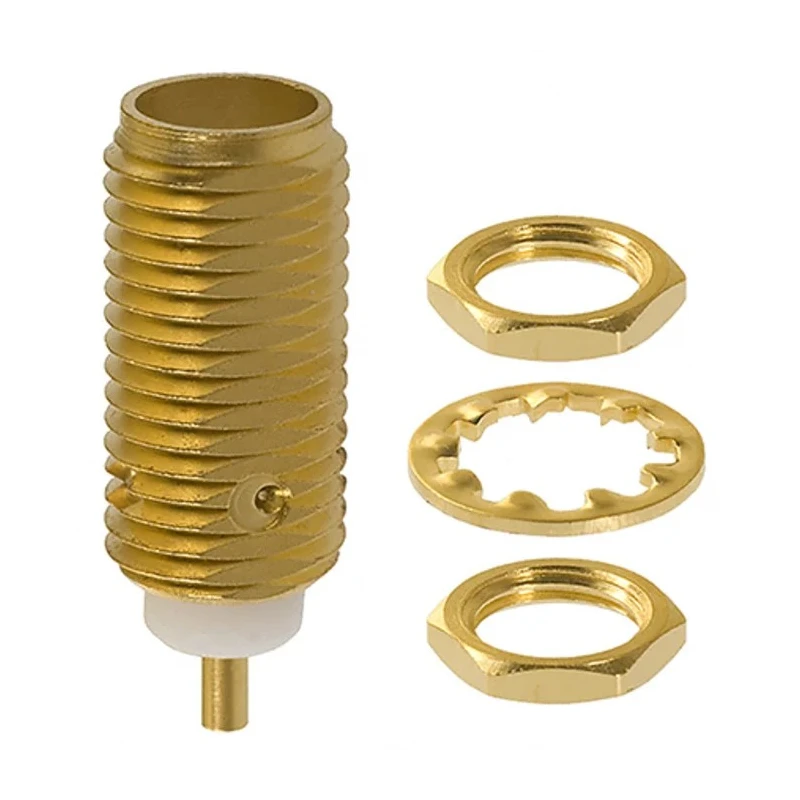

Cinch SMA Series Coaxial Connector Panel Mount Female SMA 50 Ω Straight Body Solder 142-0701-411

Free Delivery in India | Lowest Global Shipping Charges

Cinch SMA Series Coaxial Connector Panel Mount Female SMA 50 Ω Straight Body Solder 142-0701-411

Name: Cinch SMA Series Coaxial Connector Panel Mount Female SMA 50 Ω Straight Body Solder 142-0701-411
Brand: Cinch
SKU: 385177
Price: 11.11 USD
Availability: InStock



Category Coaxial Connector Brand Cinch Condition New

Specifications

Country of Origin	China
Size	Standard
Brand	Cinch
Orientation	Straight
Mount Type	Panel Mount
Operating Frequency	18GHz
Contact Material	Beryllium Copper
Series	SMA
Termination Type	Solder
Maximum Operating Temperature	165°C
Cable Type	RG58, RG142, RG178
Minimum Operating Temperature	-65°C
Polarity	Normal
Impedance	50Ω
Contact Plating	Gold
Contact Gender	Female
Connector Gender	Female
Coaxial Connector Type	SMA
Body Plating	Gold over Nickel

Key Features

Designed for use with RG58, RG142, and RG178 cables.
Features gold over nickel body plating and gold plated beryllium copper contacts.
Supports operating frequency up to 18 GHz for high-frequency applications.
Operating temperature range from -65°C to 165°C enables use in demanding environments.
Panel mount configuration with bulkhead and normal polarity for secure installations.
Standard size connector suitable for professional RF applications.
Manufactured in China with a robust solder termination ensuring reliable performance.

Product Description

The Cinch 142-0701-411 SMA Series Coaxial Connector is a professional-grade panel mount female SMA connector, designed to provide reliable RF performance with a 50 Ω impedance.

Featuring a straight body solder termination, it is compatible with cable types including RG58, RG142, and RG178. Its gold over nickel body plating combined with gold plated beryllium copper contacts ensures excellent conductivity and corrosion resistance.

These connectors operate effectively across a wide frequency range up to 18 GHz and withstand harsh environmental conditions with an operating temperature span of -65°C to 165°C.

With a panel mount type including a bulkhead, the connector provides secure and stable mounting, suitable for industrial, laboratory, telecommunications, and high-frequency electronic applications.

The SMA series from Cinch offers a range of configurations to meet diverse RF connectivity requirements, emphasizing durability and signal integrity. Designed for use with RG58, RG142, and RG178 cables. Body plating of gold over nickel for durability.

Gold plated beryllium copper contact material guarantees reliable signal transmission. Supports operating frequencies up to 18 GHz. Operating temperature from -65°C to 165°C for extended durability. Panel mount with bulkhead for secure installation.

Solder termination ensuring robust electrical connection. This product is manufactured in China under stringent quality standards, providing a dependable component for RF and electronic system implementations. Explore additional connectors and electronic components within the Electronics & Electricals category at EnvMart for comprehensive RF connectivity solutions.
